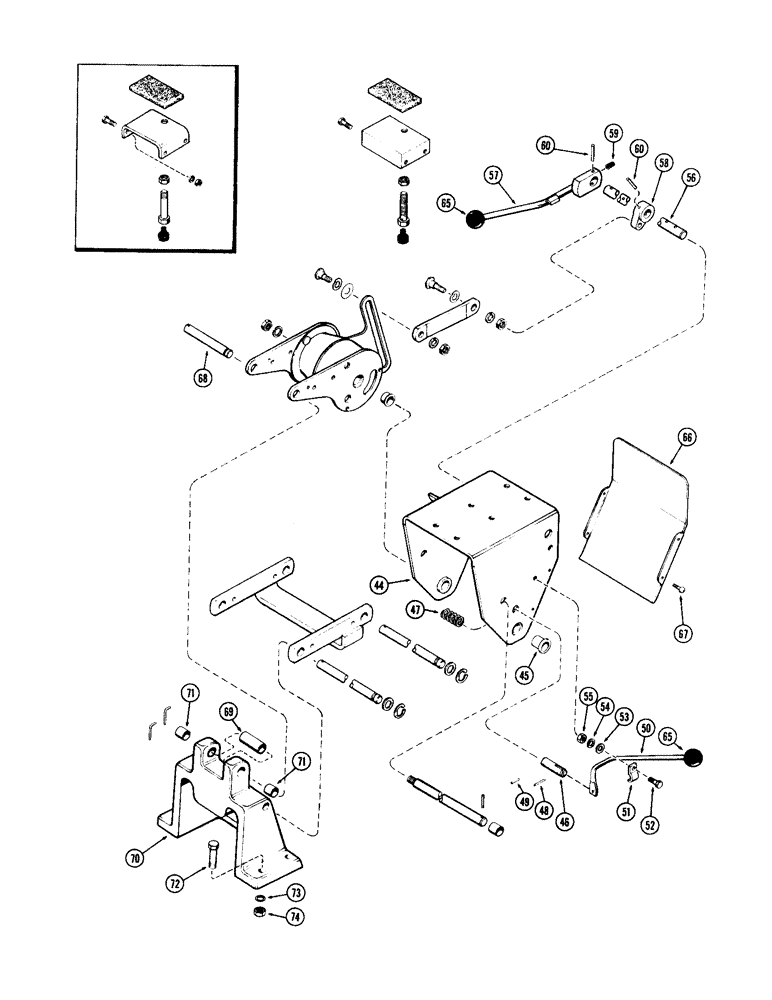

Запчасти Case IH 930-SERIES (179A) - SEAT SUSPENSION, WITH FLANGED BUSHING, FIRST USED TRACTOR SERIAL NUMBER 8339332 (09) - CHASSIS

A57726

SUSPENSION

SEAT ASSY. - (cont. from figure 178)

1шт.

44

A57784

SADDLE

ASSY. - seat mounting, Includes Ref: 45 - 48

1шт.

45

A57713

BUSHING

- flanged (1/2" long)

2шт.

46

A23967

ROD

- lever lock

1шт.

47

A23969

SPRING

- lock lever rod

1шт.

48

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Lever to rod 1/8" x 7/8", Slotted

1шт.

49

138-69

LOCK PIN,5/32" x 1/2", Slotted

Pin, , rod retaining 5/32" x 1/2", Slotted

1шт.

50

A32546

LEVER - seat lock

1шт.

51

A24014

CLIP - lever seat

1шт.

52

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- clip (1/4 x 3/4" N.F. hex.)

1шт.

53

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

1шт.

54

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

55

25-114

NUT,1/4"-28, G5

- (1/4" N.F. hex.)

1шт.

56

A32549

SHAFT - cross, adjusting lever

1шт.

57

A23957

LEVER - seat adjusting link

1шт.

58

A32547

LEVER - seat adjusting, hand

1шт.

59

A9478

SPRING

- hand adj. lever

1шт.

60

138-2002

PIN,3/16" x 1 1/4", Coiled

Cross shaft 3/16" x 1 1/4", Coiled

4шт.

65

A23885

KNOB

- levers

2шт.

66

A23977

COVER - saddle

1шт.

67

187-1108

SCREW - cover (#8-32 x 3/8" self-tapping)

4шт.

68

A23976

PIN

- pivot, torsion arm

1шт.

69

A24490

SPACER

- arm (11/16 x 3/4 x 2-1/8")

1шт.

70

A57785

SUPPORT

ASSY. - seat (standard) (incl. Ref. 71)

1шт.

70

A57786

SUPPORT ASSY. - seat (De-Luxe) (incl. Ref. 71), Includes Ref: 71

1шт.

71

A57709

BUSHING

- pivot pin (5/8 x 3/4 x 3/4")

2шт.

72

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Support Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

73

A34650

LOCK WASHER

- (1/2" ext. skpf.)

4шт.

74

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.
