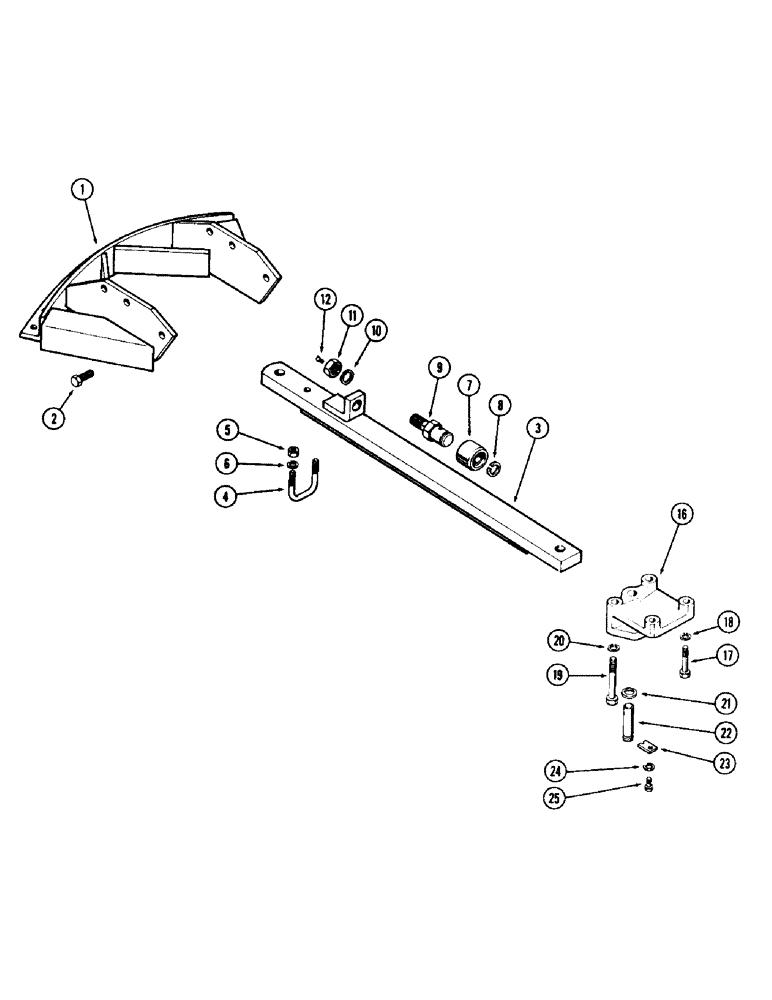

Запчасти Case IH 930-SERIES (174) - SHORT SWING DRAWBAR, WESTERN MODELS (09) - CHASSIS

1

A34846

SUPPORT - drawbar

1шт.

2

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

6шт.

3

A34477

DRAWBAR

- (for 1" dia. implement pin) (Order A57528)

1шт.

3

A57528

DRAWBAR

- (For 1-1/4" dia. implement pin)

1шт.

4

A34479

"U" BOLT - drawbar clamp, Includes Ref: 5

1шт.

5

25-108

NUT,1/2"-13, G5

- "U" bolt (1/2" N.C. hex.)

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

A27010

ROLLER

- drawbar

1шт.

8

A27012

RING

- snap, roller ret.

1шт.

9

A32946

BOLT

PIN - roller shaft

1шт.

10

92-18

LOCK WASHER,1 1/8"

pin 1 1/8"

1шт.

11

129-131

NUT,1 1/8"-12, G5

- pin ret. (1-1/8" N.F. hex.)

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

16

A57201

BRACKET

- drawbar pivot pin (Replaces A33005)

1шт.

17

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- bracket (5/8 x 2-3/4" N.C. hex.)

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- bracket (3/4 x 4-3/4" N.C. hex.)

2шт.

20

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

21

A35270

WASHER

- spring, pivot pin (anti-rattle)

1шт.

22

A34110

PIN

- drawbar pivot (used 1-A57929, 1-A57932, 1-95-12, 1-13-1279 & 1-13-1280) (See Page 175B)

1шт.

23

A57524

STRAP

- pivot pin retaining (Replaces A34111)

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

35

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.
