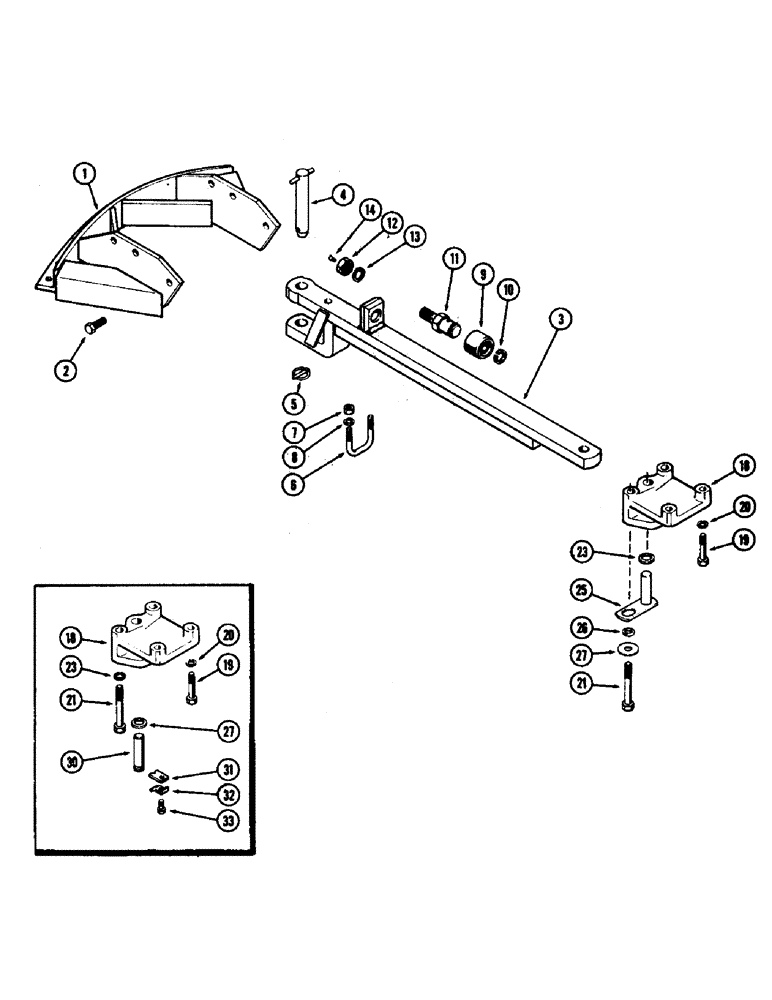

Запчасти Case IH 930-SERIES (173A) - LONG SWING DRAWBAR, WITHOUT DRAFT-O-MATIC, GENERAL PURPOSE MODELS (09) - CHASSIS

1

A34846

SUPPORT - drawbar

1шт.

2

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Support Hex, 3/4"-10 x 1 3/4", G5

6шт.

3

A57210

DRAWBAR

1шт.

4

A57998

PIN

ASSY. - implement end (1-1/4" dia.) (Replaces A57212), Includes Ref: 5

1шт.

5

A30338

PIN

ASSY. - klik

1шт.

6

A34479

"U" BOLT - drawbar clamp

1шт.

7

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

A27010

ROLLER

- drawbar

1шт.

10

A27012

RING

- snap, roller retaining

1шт.

11

A32946

BOLT

- drawbar roller

1шт.

12

129-131

NUT,1 1/8"-12, G5

- (1-1/8" N.F. hex.)

1шт.

13

92-18

LOCK WASHER,1 1/8"

1 1/8"

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

18

A57201

BRACKET

- drawbar pivot pin

1шт.

19

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- bracket (5/8 x 2-3/4" N.C. hex.)

2шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21

15-1280

BOLT

- bracket (3/4 x 5" N.C. hex.) (used w/A57932 pin)

1шт.

21

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- bracket (3/4 x 4-3/4" N.C. hex.) (1 used w/A57932 pin & 2 used w/A34110 pin)

1шт.

23

95-12

WASHER,3/4"

- (13/16 x 2 x 5/32") (used w/15-1280 bolt)

1шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Used w/13-1276 bolt 3/4"

1шт.

25

A57932

PIN

- pivot, drawbar (1st used trac. ser. no. 8344297)

1шт.

26

A57929

SPACER

- pivot pin (25/32 x 1-1/8 x 7/32") (1st used trac. ser. no. 8344297)

1шт.

27

A35270

WASHER

- spring, pivot pin (anti-rattle)

1шт.

30

A34110

PIN

- pivot, drawbar (used prior to trac. ser. no. 8344297) (Order 1-A57929, 1-A57932, 1-13-1276, 1-13-1280 & 1-95-12

1шт.

31

A57524

STRAP

- pivot pin retaining (used w/A34110 pin) (Replaces A34111)

1шт.

32

A34091

LOCK - pivot pin (use 92-6 washer for repairs)

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.
