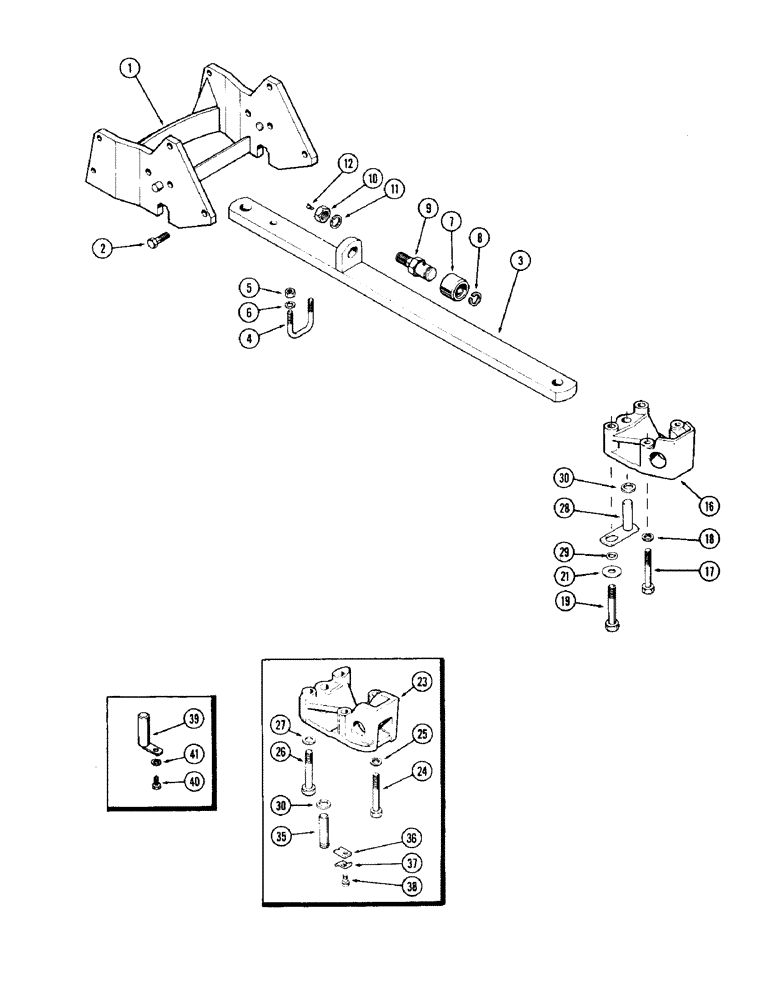

Запчасти Case IH 930-SERIES (170) - DRAWBAR, WITH DRAFT-O-MATIC, GENERAL PURPOSE MODELS (09) - CHASSIS

1

A34260

SUPPORT - drawbar (1st used trac. ser. no. 8286627)

1шт.

1

A33909

SUPPORT - drawbar (Order A34260) (used prior to trac. ser. no. 8286627)

1шт.

2

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Support Hex, 3/4"-10 x 2", G5

8шт.

3

A57529

DRAWBAR - (with 1-1/4" implement pin hole) (1st used trac. ser. no. 8342096)

1шт.

3

A33911

DRAWBAR - (with 1" implement pin hole) (used prior to trac. ser. no. 8342096) (Order A57529)

1шт.

4

A34479

"U" BOLT - drawbar clamp

1шт.

5

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

A27010

ROLLER

- drawbar

1шт.

8

A27012

RING

- snap, roller retaining

1шт.

9

A32946

BOLT

- roller, drawbar

1шт.

10

129-131

NUT,1 1/8"-12, G5

- (1-1/8" N.F. hex.)

1шт.

11

92-18

LOCK WASHER,1 1/8"

WASHER, LOCK, 1 1/8"

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. straight)

1шт.

16

A57956

BRACKET

- drawbar pivot pin (1st used trac. ser. no. 8348489)

1шт.

17

15-1080

X

BOLT - bracket (5/8 x 5" N.C. hex.)

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

19

15-1288

BOLT - bracket (3/4 x 5-1/2" N.C. hex.) (used w/A57932 pin)

1шт.

19

51-1284

BOLT - bracket (3/4 x 5-1/4" N.C. hex.) (1-used w/A57932 pin & used w/A34110 pin)

1шт.

21

95-12

WASHER,3/4"

- (13/16 x 2 x 5/32") (used w/15-1288 bolt)

1шт.

21

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Used w/15-1284 bolt 3/4"

1шт.

23

A33406

BRACKET - pivot pin, drawbar (used prior to trac. ser. no. 8348489)

1шт.

24

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- bracket (5/8 x 4-3/4" N.C. hex.)

2шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

26

13-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- bracket (3/4 x 4-3/4" N.C. hex.)

2шт.

27

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

28

A57932

PIN

- pivot, drawbar (1st used trac. ser. no. 8344297)

1шт.

29

A57929

SPACER

- pivot pin (25/32 x 1-1/8 x 7/32") (1st used trac. ser. no. 8344297)

1шт.

30

A35270

WASHER

- spring, pivot pin (anti-rattle)

1шт.

35

A34110

PIN

- pivot, drawbar (2 piece) (Order 1-A57929, 1-A57932, 1-13-1288, 1-13-1280 & 1-95-12) (used prior to trac. ser. no. 8344297)

1шт.

36

A57524

STRAP

- pivot pin retaining (used w/A34110 pin) (Replace A34111)

1шт.

37

A34091

LOCK - pivot pin (used 92-6 washer for repairs)

1шт.

38

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

39

A32211

X

PIN - pivot, drawbar (one piece) (Order 1-A57929, 1-A57932, 1-13-1288, 1-13-1280 & 1-95-12)

1шт.

40

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Pivot pin Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

41

92-6

LOCK WASHER,3/8"

1шт.
