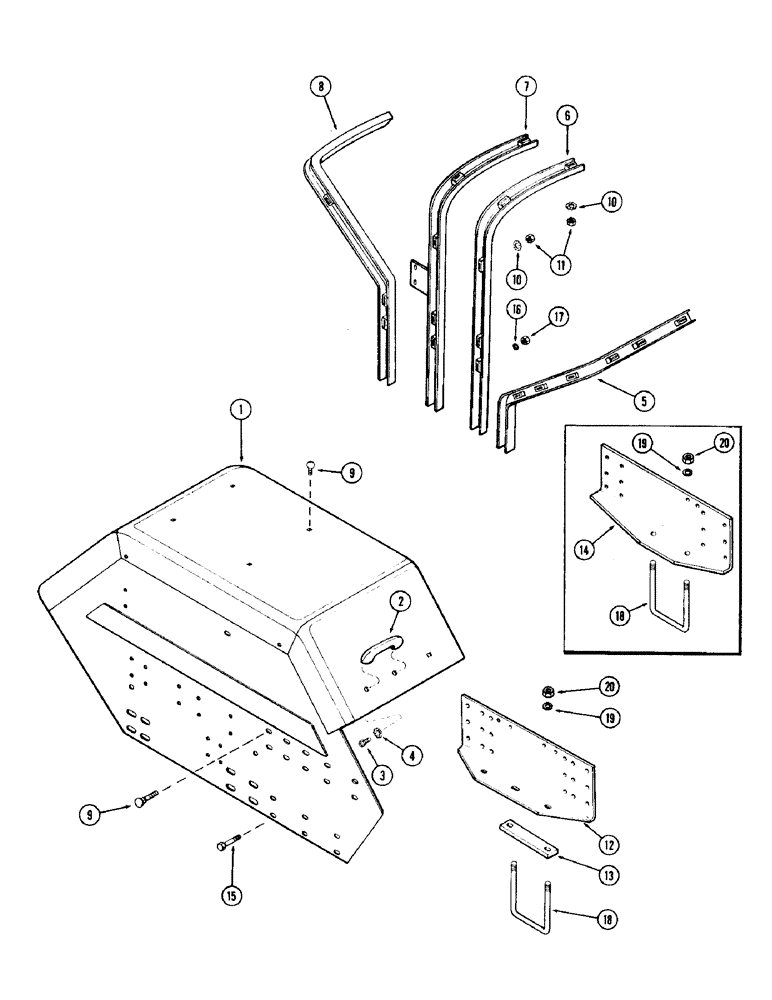

Запчасти Case IH 930-SERIES (169A) - FENDERS, WESTERN MODELS (09) - CHASSIS

1

A34300

FENDER - right hand side (Gas & Diesel)

1шт.

1

A34301

FENDER - left hand side (Gas & Diesel)

1шт.

1

A34370

FENDER - right hand side (L.P.G.)

1шт.

1

A34371

FENDER - left hand side (L.P.G.)

1шт.

2

A23725

HANDLE

- mounting

2шт.

3

111-219

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 3/4", G2

BOLT - handle (5/16 x 1-3/4" N.C. hex.)

4шт.

4

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

4шт.

5

A34308

BRACE - fender, right hand, front

1шт.

5

A34309

BRACE - fender, left hand, front

1шт.

6

A34317

BRACE - fender, center, front

2шт.

7

A34312

BRACE - fender, ctr. R.H. rear (Gas & Diesel)

1шт.

7

A34313

BRACE - fender, ctr., L.H. rear (Gas & Diesel)

1шт.

7

A34374

BRACE - fender, ctr., R.H., rear (L.P.G.)

1шт.

7

A34375

BRACE - fender, ctr., L.H., rear (L.P.G.)

1шт.

8

A34318

BRACE - fender, right hand, rear

1шт.

8

A34319

BRACE - fender, left hand, rear

1шт.

9

11-532

X

BOLT - fender brace (5/16 x 2" N.C. carr.)

14шт.

10

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" int./ext. skpf.)

14шт.

11

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

14шт.

12

A57747

SUPPORT

- fender, right & left hand (7-1/4" between hole centers) (1st uaed trac. ser. no. 8348196)

2шт.

13

A57748

BRACE

- fender support (1st used trac. ser. no. 8348196)

2шт.

14

A57046

SUPPORT

- right hand (7-1/4" between hole ctrs.) (used trac. ser. nos. 8310621 to 8348196) (Order 1-A57747 & 1-A57748)

1шт.

14

A34322

X

SUPPORT - right hand (7" between hole ctrs.) (Order 1-A57046 & 1-A57048) (used prior to trac. ser. no. 8310621)

1шт.

14

A57047

X

SUPPORT - left hand (7-1/4" between hole ctrs.) (used trac. ser. nos. 8310621 to 8348196) (Order 1-A57747 & 1-A57748)

1шт.

14

A34323

X

SUPPORT - left hand (7" between hole ctrs.) (Order 1-A57047 & 1-A57048) (used prior to trac. ser. no. 8310621)

1шт.

15

13-422

BOLT,Hex, 1/4" - 20 x 1-3/8", Gr 5

- support (1/2 x 2-12/" N.C. hex.)

16шт.

16

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER - (1/2" ext. skpf.)

16шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

18

A57048

U-BOLT

"U" BOLT - fender mtg. (7-1/4" between stud ctrs.) (1st used trac. ser. no. 8310621)

2шт.

18

A7069

ARM

"U" BOLT - fender mtg. 97" between stud ctrs.) (used prior to trac. ser. no. 8310621)

2шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

4шт.
