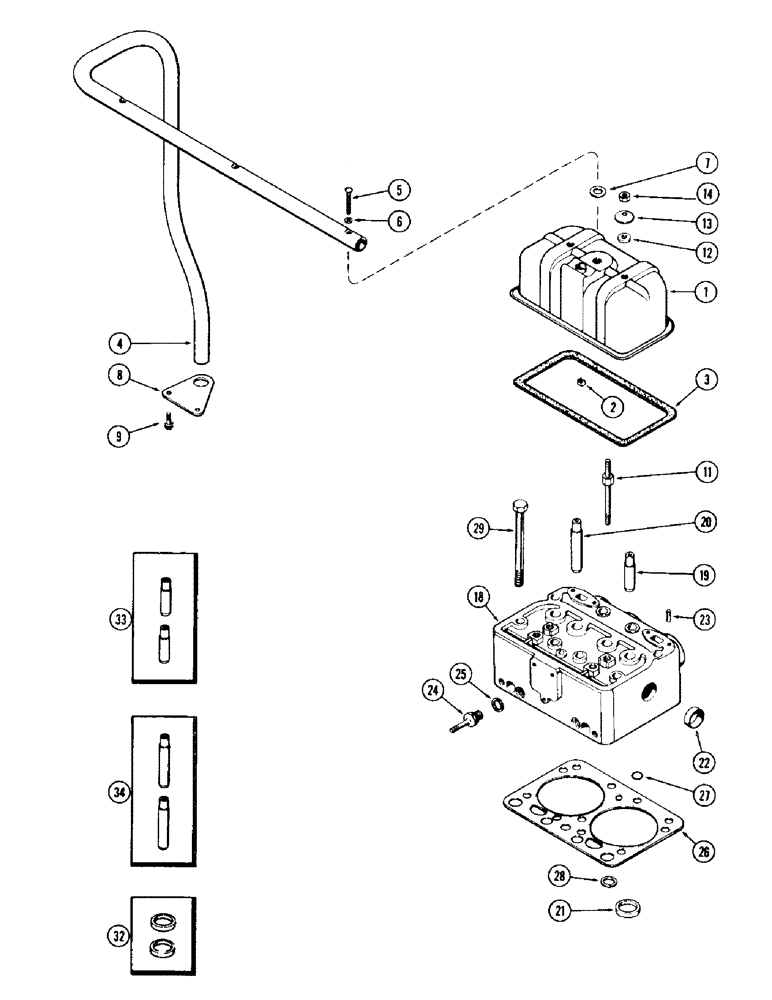

Запчасти Case IH 930-SERIES (008) - CYLINDER HEAD AND COVER, (401) DIESEL ENGINE (02) - ENGINE

1

A23681

COVER ASSY

. - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube

1шт.

3

A57595

CYLINDER HEAD GASKET

- cover to head (Replaces A27972)

3шт.

4

A24184

TUBE

- breather

1шт.

5

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- tube (1/4 x 2-1/4" N.C. rd. hd.)

3шт.

6

A34133

GASKET

- screw (9/32 x 1/2 x 3/64" fiber)

3шт.

7

A23685

GASKET

- tube (11/16 x 1-1/16 x 1/16" rubber)

3шт.

8

A23686

BRACKET

- breather tube

1шт.

9

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - brkt. (3/8 x 1-1/2" N.C. hex. sems)

2шт.

11

A57458

STUD

- rocker arm brkt. & cover (Replaces A28124) (Order A57990 stud & 25-107 nut)

6шт.

12

A23684

GASKET

GASKET - cover stud (15/32 x 7/8 x 1/8" rubber)

6шт.

13

A23683

WASHER

- cover nut stud (15/32 x 1-25/64 x 1/16" dished)

6шт.

14

25-117

NUT,7/16"-20, G5

- cover ret. (7/16" N.F. hex.)

6шт.

18

A33643

HEAD (CYLINDER)

HEAD ASSY. - cylinder, Includes: Ref. 19 - 25

3шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 33)

2шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 34)

2шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 32)

2шт.

22

A34124

PLUG,Cup, 1 5/8", Stainless

- cyl, head (1-41/54" cup type)

2шт.

23

A11810

PIN,3.19mm OD x 6.99mm L

- powrcel locating (1/8 x 17/64")

2шт.

24

A10678

STUD

- nozzle holder

2шт.

25

A10679

GASKET

- stud (23/32 x 29/32 x 1/32" copper)

2шт.

26

A23118

GASKET

- cylinder head

3шт.

27

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

3шт.

28

A7669

RING

- water passage (7/8 x 1-3/32 x 5/64" rubber)

6шт.

29

A23355

BOLT

- cyl. head (9/16 x 6" N.C. hex.)

27шт.

32

A21681

KIT

INSERT KIT - exhaust valve (Set of 2)

3шт.

33

A21674

GUIDE

KIT - exhaust valve (Set of 2)

3шт.

34

A21671

GUIDE

KIT - intake valve (Set of 2)

3шт.
