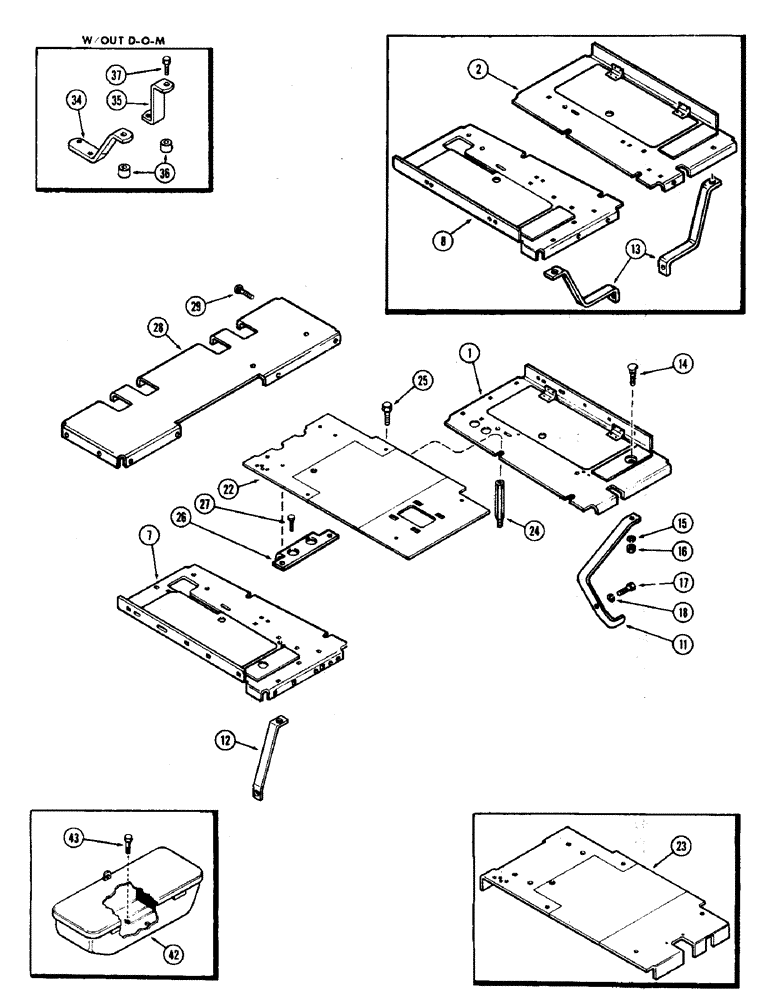

Запчасти Case IH 930-SERIES (166) - PLATFORMS (09) - CHASSIS

1

A57767

PLATFORM ASSY. - left hand (1st used trac. ser. no. 8342849)

1шт.

2

A57013

PLATFORM ASSY. - left hand (used trac. ser. no. 8282440 to 8342849) (Order A57767)

1шт.

2

A34605

PLATFORM

ASSY. - left hand (Replaces A33159) (used prior to trac. ser. no. 8282440)

1шт.

7

A57766

PLATFORM ASSY. - right hand (1st used trac. ser. no. 8342849)

1шт.

8

A57150

PLATFORM ASSY. - right hand (used trac. ser. nos. 8282440 to 8342849) (Order A57766)

1шт.

8

A34604

PLATFORM ASSY. - right hand (used trac. ser. no., Serial Range: 8256743-8282440)

1шт.

8

A33158

PLATFORM ASSY. - right hand (used prior to trac. ser. no. 8256743)

1шт.

11

A57067

BRACE - left hand platform (1st used trac. ser. no. 8282440)

1шт.

12

A57151

BRACE - right hand platform (1st used trac. ser. no. 8282440)

1шт.

13

A32649

BRACE - right & left hand platforms (used prior to trac. ser. no. 8282440)

2шт.

14

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- brace to platform (1/2 x 1-1/4" N.C. carr.)

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

17

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Brace to trans. case Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22

A57026

PLATFORM - center (1st used trac. ser. no. 8297728)

1шт.

23

A33164

PLATFORM - center (1st used trac. ser. no. 8297728)

1шт.

24

A32368

STUD - platform support

4шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Plat. to stud Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

26

A33162

SUPPORT - center platform. rear

1шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Rear support Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

28

A32653

EXTENSION - center platform (LP only)

1шт.

29

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Ext. to plat. Short NK, 5/16"-18 x 3/4", G2

4шт.

34

A34072

SUPPORT - plat., R.H. rear (used w/out D-O-M)

1шт.

35

A34073

SUPPORT - plat., L.H. rear (used w/out D-O-M)

1шт.

36

A34074

SPACER - support (17/32 x 1-1/4 x 1")

2шт.

37

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- supt. to trans. case (1/2 x 3" N.C. hex.)

2шт.

42

A11099

TOOL

BOX ASSY. - tools

1шт.

43

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- tool box to fuel tank (Gas & Diesel) (5/16 x 1/2" N.F. hex.)

2шт.

43

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - tool box to plat. ext. (L.P. gas) (1/4 x 3/4" N.C. carr.)

2шт.
