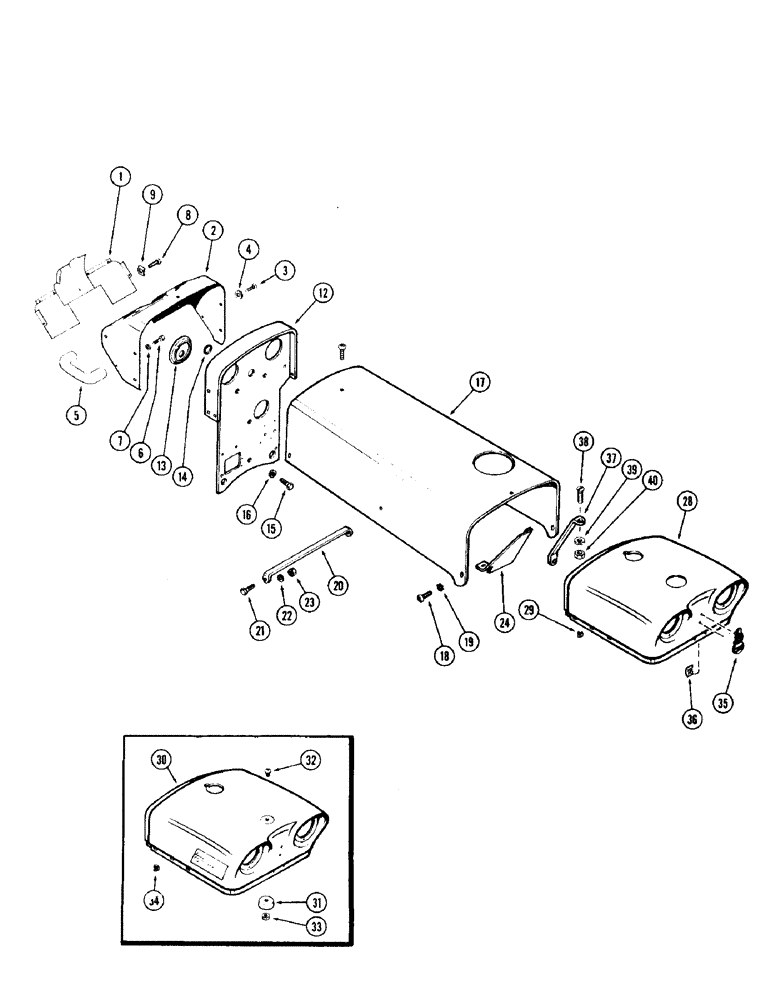

Запчасти Case IH 930-SERIES (162) - HOOD, CAP AND INSTRUMENT PANEL (09) - CHASSIS

1

A33190

COVER - instrument panel

1шт.

2

A33189

PANEL - instrument mounting

1шт.

3

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- inst. panel (5/16 x 5/8" N.C. truss hd.)

2шт.

SCREW, NUT USED IS 131-123

1шт.

4

195-103

WASHER,5/16"

- (3/8 x 7/8 x 5/64")

2шт.

5

A23725

HANDLE

- mounting

2шт.

HANDLE NOT USED ON TRACTORS WITH CAB.

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Handle

4шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

8

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- panel cover (#8 x 1/2" sheet metal)

7шт.

9

131-130

NUT

- (#8 Tinnerman)

7шт.

12

A57780

PLATE - hood support (Replaces A32572)

1шт.

13

A24620

PLUG

- hood support plate

2шт.

14

A27519

GROMMET

- hood support plate

3шт.

15

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hood support (1/2 x 3/4" N.C. hex.)

2шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Hood support Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

A32570

HOOD

1шт.

18

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- hood (5/16 x 5/8" truss hd.)

4шт.

SCREW, NUT USED IS 131-123

1шт.

19

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - (5/16" ext. skpf.)

4шт.

20

A23812

BRACE - hood side

1шт.

21

77-48

SCREW,Truss, 1/4" - 20 x 1/2"

- brace (1/4 x 1/2" truss hd.)

2шт.

22

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.

23

25-104

NUT,1/4"-20, G5

2шт.

24

A24682

BAFFLE - engine heat (Diesel)

1шт.

24

A24684

BAFFLE ASSY. - engine heat (Gas & LP) (Order 1-A24685 & 1-A24686)

1шт.

28

A57730

CAP ASSY. - radiator grille (1st used trac. ser. no. 8332878)

1шт.

29

131-115

NUT

- (1/4" N.C. Tinnerman)

7шт.

30

A33971

CAP ASSY. - radiator grille (used prior to trac. ser. no. 8332878), Includes Ref: 31 - 31

1шт.

31

A23789

DEFLECTOR - oil

1шт.

32

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- deflector (1/4 x 1/2" N.C. ph. hd.)

1шт.

33

193-1006

NUT,Keps, w/LW, 1/4"-20

- (1/4" N.C. Keps)

1шт.

31

131-115

NUT

- (1/4" N.C. Tinnerman)

7шт.

35

A24526

MEDALLION - grille cap (Case trade mark)

1шт.

36

131-138

PUSH-ON NUT

- (1/4" push on type)

2шт.

37

A32669

BRACE - grille cap

1шт.

38

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- brace (1/4 x 5/8" N.C. ctsk. hd.)

1шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

40

25-104

NUT,1/4"-20, G5

1шт.
