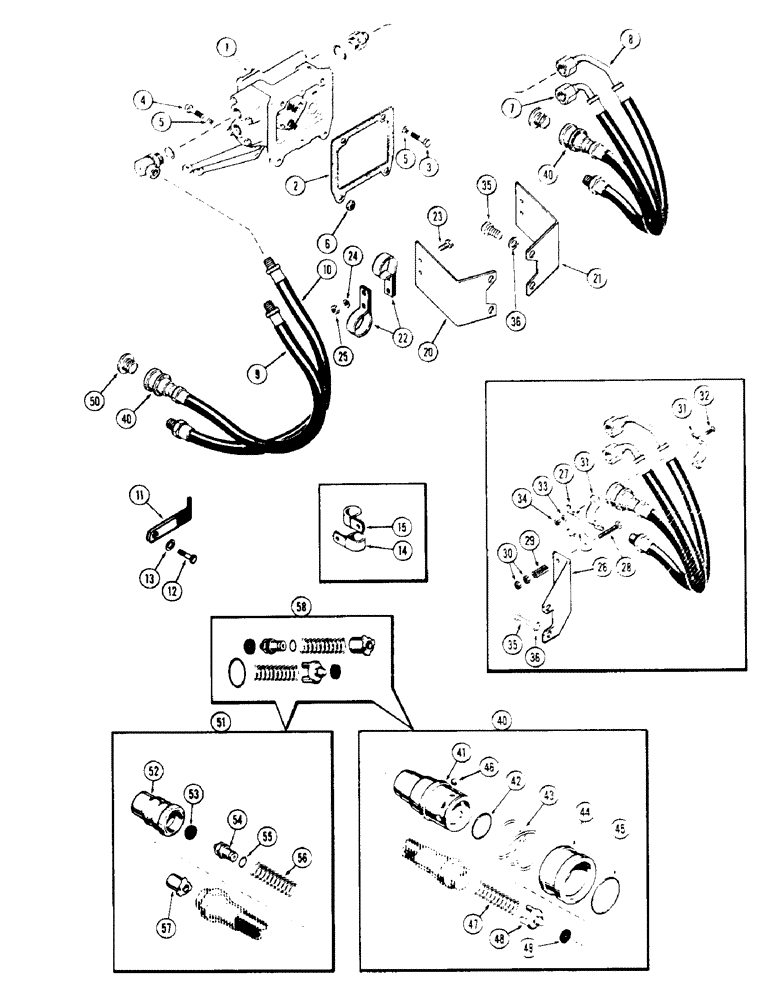

Запчасти Case IH 930-SERIES (186) - BREAKAWAY COUPLING AND LINES (08) - HYDRAULICS

1

A57571

VALVE

ASSY. - auxiliary (Warner) (See Fig.150) (Order A34699)

1шт.

1

A34699

VALVE

ASSY. - aux. (Kingston) (See Fig. 152)

1шт.

2

A32349

GASKET

- auxiliary valve

1шт.

3

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Aux valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Aux valve Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

5

92-8

LOCK WASHER,1/2"

4шт.

6

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

7

A33003

HOSE

- coupling, L.H. lower (18-3/16" long)

1шт.

8

A32999

HOSE

- coupling, L.H. upper (24-7/16" long)

1шт.

9

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - coupling, R.H. lower (31-5/8" long)

1шт.

10

A33002

HYDRAULIC HOSE

HOSE - coupling, R.H. upper (26-3/4" long)

1шт.

11

A33981

CLAMP - R.H. hoses

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

A32569

CLAMP - lower, R.H. hose (Order ref. 11)

1шт.

15

A33004

CLAMP

- upper, R.H. hose (Order ref. 11)

1шт.

20

A57660

BRACKET

- coupling, right hand (1st used trac. ser. no. 8344855)

1шт.

21

A57661

BRACKET - coupling, left hand (1st used trac. ser. no. 8344855)

1шт.

22

A57662

CLAMP

- coupling (1st used trac. ser. no. 8344855)

4шт.

23

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Clamp to bracket Hex, 1/4"-20 x 1", G5

4шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

25

25-104

NUT,1/4"-20, G5

4шт.

26

A33001

BRACKET - coupling mtg., left hand (used prior to trac. ser. no. 8344855)

1шт.

26

A33000

BRACKET - coupling mtg., right hand (used prior to trac. ser. no. 8344855)

1шт.

27

A27360

BRACKET

- clamp (used prior to trac. ser. no. 8344855)

4шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Bracket Hex, 3/8"-16 x 2", G5

4шт.

29

A26546

SPRING

- (used w/A27360 bracket)

1шт.

30

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C., jam)

8шт.

31

A27423

CLAMP

- coupling ret. (used w/A27360 brkt.)

8шт.

32

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- clamp (#8-32 x 5/8" rd. hd.)

8шт.

33

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

8шт.

34

129-6

NUT,#8-32

8шт.

35

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Bracket (w/o hitch) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

4шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

40

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - breakaway, female half, Includes Ref: 41 - 49

4шт.

41

A27349

BODY

- female section

1шт.

42

A34848

O-RING

"O" RING - body (7/8 x 1-1/8 x 1/8")

1шт.

43

A27354

SPRING

- sleeve tension

1шт.

44

A27353

SLEEVE

SLEEVE - male coupling lock & release

1шт.

45

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, sleeve ret.

1шт.

46

211-7

BALL,1/4" Dia

- male cplg, swivel 1/4" Dia

8шт.

47

A11324

SPRING

- piston pressure

1шт.

48

A26215

PISTON

- coupling socket

1шт.

49

A33964

SEAL

- piston

1шт.

50

A22768

PLUG

- dust, female coupling

4шт.

51

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - breakaway, male half, Includes Ref: 52 - 57

4шт.

52

A27356

PIPE FITTING

BODY - coupling

1шт.

53

A33964

SEAL

- piston

1шт.

54

A27508

PISTON

- coupling

1шт.

55

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston (1/4 x 3/8 x 1/16")

1шт.

56

A27351

SPRING

- piston

1шт.

57

A9634

SLEEVE

- piston

1шт.

58

A40459

KIT

REPAIR KIT - (will repair 1-A28541 male coupling and 1-A28542 female coupling)

1шт.
