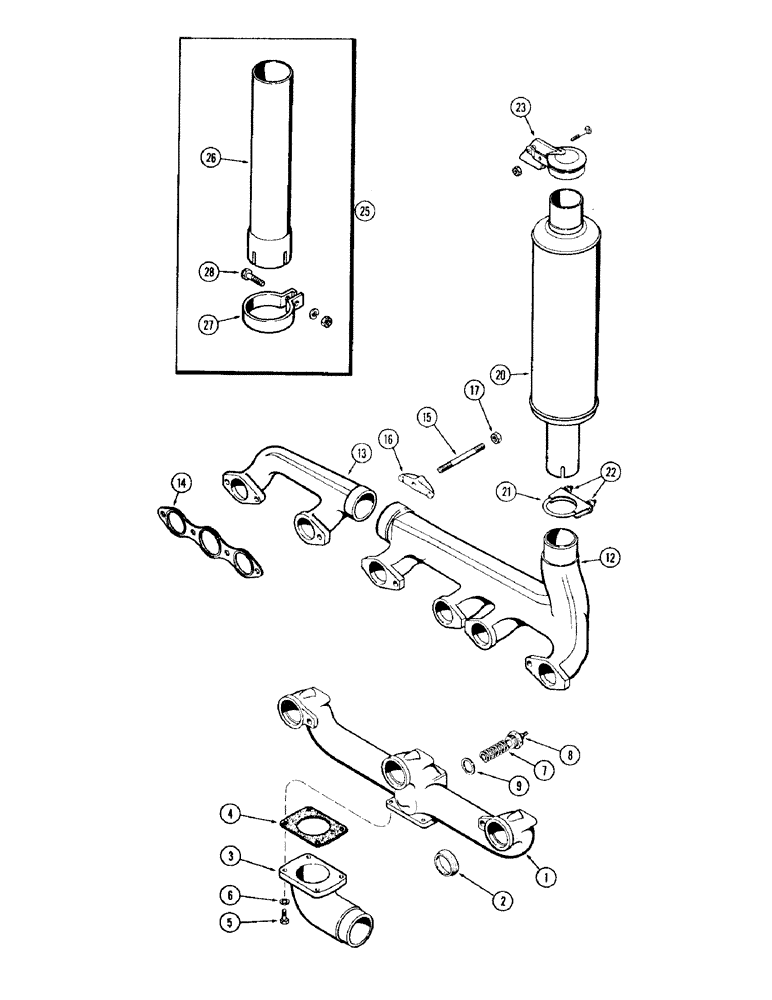

Запчасти Case IH 930-SERIES (007A) - MANIFOLD AND MUFFLER, (401) DIESEL ENGINE (02) - ENGINE

1

A20700

MANIFOLD - intake

1шт.

2

A21383

CAP

FERRULE - intake manifold

3шт.

3

A23863

ELBOW - intake

1шт.

4

A20678

GASKET

- intake elbow

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

A37775

HEATER

HEATHER ASSY. - manifold (Replaces A24396), Includes: Ref. 8

1шт.

8

129-503

NUT,1/4"-20, Brass

1шт.

9

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

12

A24714

MANIFOLD

- front, exhaust

1шт.

13

A24715

MANIFOLD

- rear, exhaust

1шт.

14

A34875

GASKET,2.2mm Thk

- manifold to head (Replaces A24717)

3шт.

15

A27911

STUD

- manifold clamp (7/16" N.C./N.F. x 6")

6шт.

16

A24368

CLAMP

- manifold

6шт.

17

25-117

NUT,7/16"-20, G5

- (7/16" N.F. hex.)

6шт.

20

A24103

MUFFLER

1шт.

21

A27115

CLAMP

ASSY. - muffler, Includes: Ref. 22

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

23

A33743

CAP

- weather

1шт.

25

A24111M

EXTENSION ATTACHMENT - muffler, Includes: Ref. 26 - 28

1шт.

26

A24112

EXTENSION

- muffler tube

1шт.

27

A24113

CLAMP

-, Serial Range: extension-muffler

1шт.

28

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

1шт.
