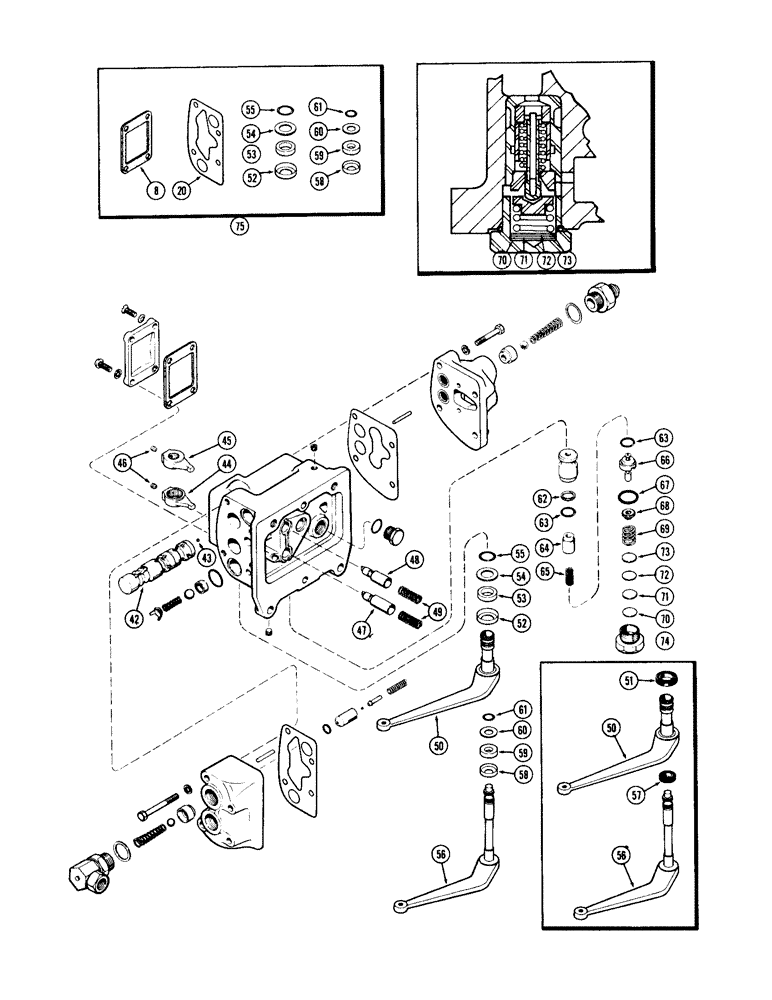

Запчасти Case IH 930-SERIES (151A) - A57571 AUXILIARY VALVE, FIRST USED TRANSMISSION SERIAL NUMBER 2219218, WARNER MOTIVE (08) - HYDRAULICS

A57571

VALVE

ASSY. - (cont. from Fig. 150) (Order A34699)

1шт.

42

A57538

SPOOL

ASSY. - valve, Includes Ref: 43

2шт.

43

211-5

BALL,3/16" Dia

- (.) 3/16" Dia

1шт.

44

A57546

ARM

ASSY. - spool shifter, inner (21/32" I.D. across spline area) (incl. ref. 46)

1шт.

45

A57547

ARM

ASSY. - spool shifter, outer (13/32" I.D. across spline area) (incl. ref. 46), Includes Ref: 46

1шт.

46

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, valve spool shifter arm (Replaces A57550)

1шт.

47

A57554

PLUNGER

- valve spool, inner, w/out oil hole

1шт.

48

A57555

PLUNGER

- valve spool, outer, w/oil hole

1шт.

49

A30883

SPRING

- valve spool plunger

2шт.

50

A57540

SHAFT

LEVER - spool shifter, inner (13/32" O.D. across spline end)

1шт.

51

G13827

OIL SEAL

SEAL - oil, inner lever (3/4 x 1-1/4 x 1/4") (Order A25264) (See Ref. 75)

1шт.

Part of P/N A25264 Repair Kit

1шт.

52

A30880

RETAINER

felt seal

1шт.

Part of P/N A25264 Repair Kit

1шт.

53

A30879

WASHER

SEAL, 3/4 x 1-3/16 x 1/4" felt

1шт.

Part of P/N A25264 Repair Kit

1шт.

54

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER, 49/64 x 1-15/64 x 20 Ga.

1шт.

Part of P/N A25264 Repair Kit

1шт.

55

A60499

O-RING

"O" RING, 3/4 x 15/64 x 3/32"

1шт.

Part of P/N A25264 Repair Kit

1шт.

56

A57541

LEVER - spool shifter, outer (21/32" O.D. across spline end)

1шт.

57

A57551

SEAL

oil, outer lever, 1/2 x 1 x 1/4", order A25264

1шт.

Part of P/N A25264 Repair Kit

1шт.

58

A30875

RETAINER

felt seal

1шт.

Part of P/N A25264 Repair Kit

1шт.

59

A30853

WASHER

SEAL, 1/2 x 15/16 x 1/4" felt

1шт.

Part of P/N A25264 Repair Kit

1шт.

60

A27409

WASHER

23/64 x 63/64 x 20 Ga.

1шт.

Part of P/N A25264 Repair Kit

1шт.

61

A60498

O-RING

"O" RING, 1/2 x 11/16 x 3/32"

1шт.

Part of P/N A25264 Repair Kit

1шт.

62

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

SEAL - sleeve, inner

1шт.

63

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - sleeve & ret. (5/8 x 3/4 x 1/16")

2шт.

64

A57553

PISTON

- relief valve

1шт.

65

A34382

SPRING

- valve, inner (1" free length), Includes Ref: 66 - 74

1шт.

66

A57556

PISTON

ASSY. - pilot relief valve

1шт.

67

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

68

A57558

RETAINER

- valve spring

1шт.

69

A34492

SPRING

- valve, outer (23/32" free length)

1шт.

70

A34390

SHIM,.0329" Thk

Valve spring .0329" Thk

1шт.

70

A34391

SHIM,.0149" Thk

Valve spring .0149" Thk

1шт.

71

A34694

SHIM,.0201" Thk

Valve spring .0201" Thk

1шт.

72

A34849

SHIM,.0105" Thk

Valve spring .0105" Thk

1шт.

73

A34817

SHIM,.0149" Thk

Valve spring (Blue Japan) .0149" Thk

1шт.

74

A34392

PLUG

- pilot relief valve

1шт.

75

A25264

SEAL

REPAIR KIT, Includes: Ref, 51 - 55 and 57 - 61

1шт.
