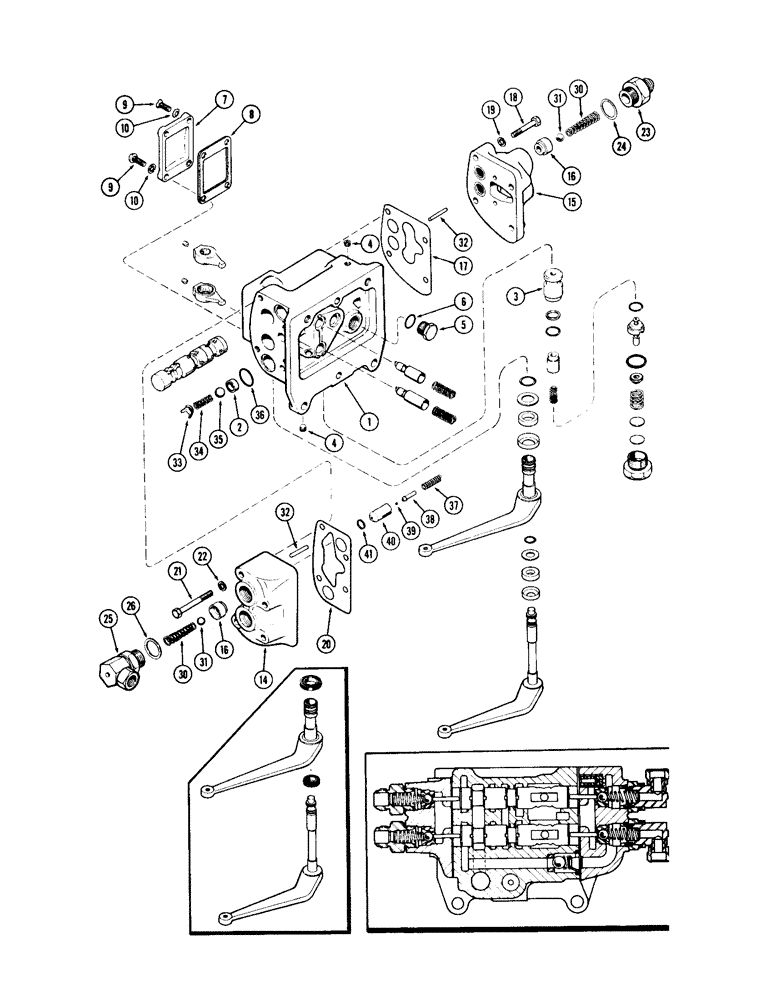

Запчасти Case IH 930-SERIES (150) - A57571 AUXILIARY VALVE, FIRST USED TRANSMISSION SERIAL NUMBER 2219218, WARNER MOTIVE (08) - HYDRAULICS

A57571

VALVE

ASSY. - auxiliary, non-float w/tag (Order A34699), Includes Ref: 1 - 75

1шт.

1

A57534

BODY

ASSY. - hyd. valve, Includes Ref: 2 - 4

1шт.

2

A57537

SEAT

- ball, check valve

4шт.

3

A57536

SLEEVE

- relief valve pilot

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- body (1/8" P.T., sckt. hd.)

4шт.

5

86512512

PLUG,7/8" - 14 ORB

- Body port, Incl. Ref: 6 Hex Hd, 7/8"-14 ORB

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

7

A57552

CAP

- valve body

1шт.

8

A30854

GASKET

- cap (See Ref. 75, Fig. 151A)

1шт.

Part of P/N A25264 Repair Kit

1шт.

9

75-414

SCREW,Rd, 1/4" x 7/8"

- cap (1/4 x 7/8" N.C., rd. hd.)

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

A57565

VALVE

HEAD ASSY. - right hand

1шт.

15

A57564

VALVE

HEAD ASSY. - left hand, Includes Ref: 16

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT - check valve ball

2шт.

17

A57560

GASKET

- left hand valve head

1шт.

18

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- left hand head (3/8 x 2-3/4" N.C. hex.)

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

A57561

GASKET

- R.H. valve head (See Ref. 75 on Fig. 151A)

1шт.

Part of P/N A25264 Repair Kit

1шт.

21

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

RH head Hex, 3/8"-16 x 1 3/4", G5

2шт.

21

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- right hand head (3/8 x 2-1/2" N.C. hex.)

2шт.

23

A57569

FITTING

- left hand valve head

2шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - fitting (3/4 x 59/64 x 1/8")

2шт.

25

A57562

ADAPTER

FITTING ASSY. - right hand valve head (swivel adapter), Includes Ref: 26

2шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - inside, hyd. fitting (Not Illust.)

1шт.

30

A30877

SPRING

- return, ball check

4шт.

31

211-13

BALL,1/2" Dia

- check 1/2" Dia

4шт.

32

A57559

SPOOL

- check valve

4шт.

33

A27364

GUIDE

- check valve spring

4шт.

34

A27452

SPRING

- check valve

4шт.

35

211-15

BALL,5/8" Dia

- valve body seat (.) 5/8" Dia

4шт.

36

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - (15/16 x 1-1/8 x 3/32")

4шт.

37

A57396

SPRING

- relief valve

2шт.

38

A62272

GUIDE

- ball, thermal valve (Replaces A57568)

2шт.

39

211-3

BALL,1/8" Dia

- relief valve (.) 1/8" Dia

2шт.

40

A62273

SEAT

- thermal valve (Replaces A57570)

2шт.

41

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - (3/8 x 9/16 x 3/32")

2шт.
