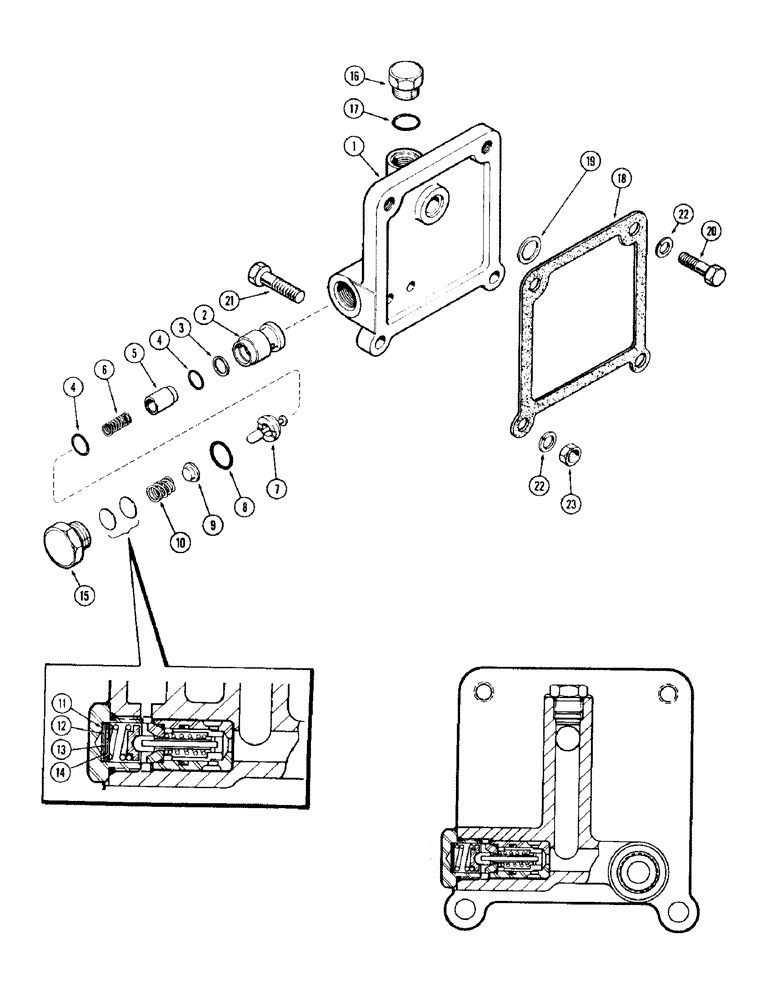

Запчасти Case IH 930-SERIES (146) - PILOT RELIEF VALVE, USED WITH HITCH AND WITHOUT REMOTES, 1ST USED TRANS. S/N 2219218, WARNER MOTIVE (08) - HYDRAULICS

A57578

VALVE

ASSY. - pilot relief (Order A34720), Includes Ref: 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

2

A57536

SLEEVE

- relief valve

1шт.

3

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

SEAL - sleeve, inner

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - sleeve & ret. (5/8 x 3/4 x 1/16")

2шт.

5

A57553

PISTON

- relief valve

1шт.

6

A34382

SPRING

- valve, inner (1" free length)

1шт.

7

A57556

PISTON

ASSY. - relief valve

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - plug (3/4 x 59/64 x 1/8")

1шт.

9

A57558

RETAINER

- valve spring

1шт.

10

A34492

SPRING

- valve, outer (23/32" free length)

1шт.

11

A34390

SHIM,.0329" Thk

Valve spring .0329" Thk

1шт.

11

A34391

SHIM,.0149" Thk

Valve spring .0149" Thk

1шт.

12

A34694

SHIM,.0201" Thk

Valve spring .0201" Thk

1шт.

13

A34849

SHIM,.0105" Thk

Valve spring .0105" Thk

1шт.

14

A34817

SHIM,.0149" Thk

Valve spring (Blue Japan) .0149" Thk

1шт.

15

A34392

PLUG

- relief valve

1шт.

16

214389

PLUG,3/4" - 16 ORB

Assy, Valve, Includes Ref. 17 Hex Hd, 3/4"-16 ORB

1шт.

18

A32285

GASKET

- valve to rockshaft housing

1шт.

19

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - relief valve

1шт.

20

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Valve Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.
