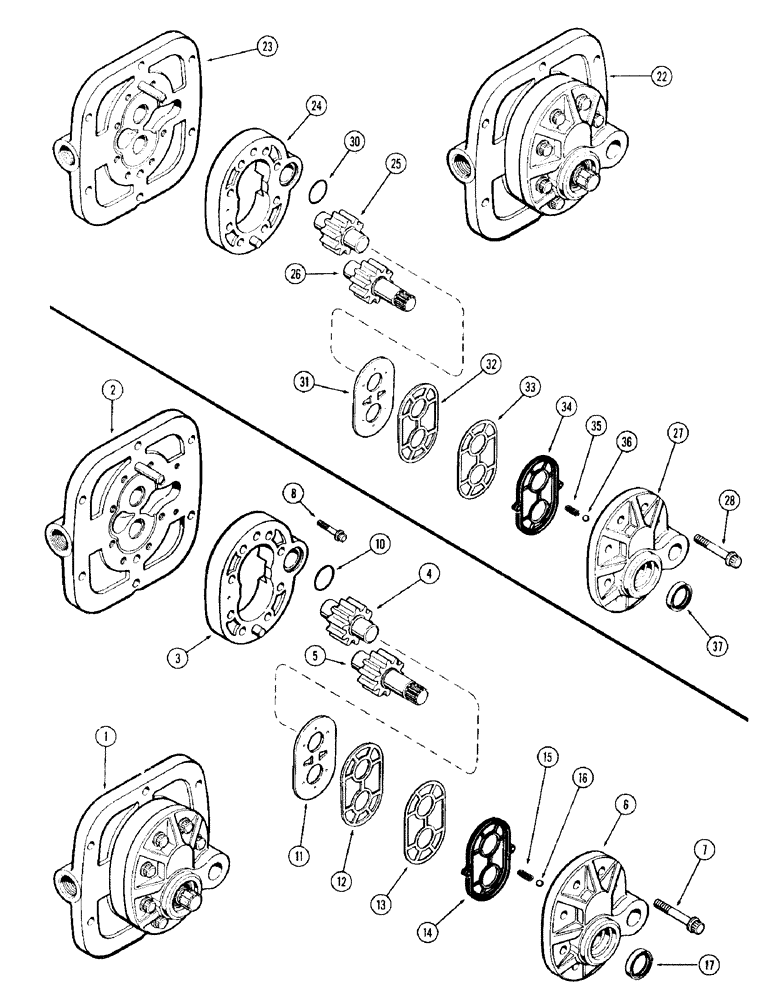

Запчасти Case IH 930-SERIES (144) - HYDRAULIC PUMP, TEN BOLT PUMP, FIRST USED TRACTOR SERIAL NUMBER 8289734 (08) - HYDRAULICS

1

A34214

PUMP

PUMP ASSY. - (Cessna #20379-OAAO), Includes Ref: 2 - 17

1шт.

1

AR34214

REMAN-HYD PUMP

930 Series Case Comfort King - 1/65-12/69,

1шт.

1

AC34214

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

A40786

SPARE PART PLATE ASSY. - back, w/bushings

1шт.

3

A40783

NO LONGER SERVICED

BODY ASSY. - w/locating dowels

1шт.

4

A41241

GEAR

GEAR ASSY. - idler (follow gear)

1шт.

5

A41240

GEAR

GEAR ASSY. - drive (lead gear)

1шт.

6

A25132

SPARE PART PLATE ASSY. - front, w/ bushings

1шт.

7

166-50

SPARE PART BOLT - plate (3/8 x 2-1/4" N.C., 12 pt. hd.)

8шт.

8

166-7

SPARE PART BOLT - plate (1/4 x 1-1/4" N.C., 12 pt. hd.)

2шт.

A25138

KIT

REPAIR KIT - pump overhaul, Includes Ref: 10 - 17

1шт.

10

A7464

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

"O" RING - suction port (1-1/8 x 1-5/16 x 3/32")

1шт.

11

H335331

DIAPHRAGM

DIAPHRAGM - hyd. pump (Replaces D31400) (Replaces D42875)

1шт.

12

D31398

SPARE PART GASKET - protector back-up

1шт.

13

A41244

GASKET

GASKET - seal protector

1шт.

14

D48888

SEAL

SEAL - diaphragm (Replaces D31397)

1шт.

15

F9883

SPRING

SPRING - hyd. pump (Replaces A25137)

1шт.

16

211-6

BALL,7/32" Dia

BALL, 7/32" Dia

1шт.

17

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - oil (7/8 x 1-3/8 x 1/4")

1шт.

22

A32048

X

PUMP ASSY. - (CESSNA #L20379-OAAO) (Order A34214)

1шт.

22

AR34214

REMAN-HYD PUMP

930-SERIES Comfort King, SN 8289734 & Up, Reman For New P/N's A32048 & A34214,

1шт.

22

AC34214

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

A32097

COUPLING, BREAK AWAY

used on Ref. 22, Includes Ref: 23 - 37

1шт.

23

A25134

SPARE PART PLATE ASSY. - back, w/bushings (Order A40786)

1шт.

24

A25133

SPARE PART BODY ASSY. - w/locating dowels (Order A40783)

1шт.

25

A41241

GEAR

GEAR ASSY. - idler (follow gear) (Replaces A25136)

1шт.

26

A41240

GEAR

GEAR ASSY. - drive (lead gear) (Replaces A25135)

1шт.

27

A25132

SPARE PART PLATE ASSY. - front, w/bushings

1шт.

28

166-50

SPARE PART BOLT - front plate (3/8 x 2-1/4" N.C. 12 pt.)

8шт.

A25138

KIT

REPAIR KIT - pump overhaul (not illust.), Includes Ref: 30 - 37

1шт.

30

A7464

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

"O" RING - suction port (1-1/8 x 1-5/16 x 3/32")

1шт.

31

H335331

DIAPHRAGM

DIAPHRAGM - hyd. pump (Replaces D31400) (Replaces D42875)

1шт.

32

NLS

NO LONGER SERVICED

SPARE PART GASKET - protector back-up

1шт.

33

A41244

GASKET

GASKET - seal protector (Replaces D31399)

1шт.

34

D31397

SEAL

SEAL - diaphragm

1шт.

35

F9883

SPRING

SPRING - hyd. pump (Replaces A25137)

1шт.

36

211-6

BALL,7/32" Dia

BALL, 7/32" Dia

1шт.

37

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - oil, (7/8 x 1-3/8 x 1/4")

1шт.
