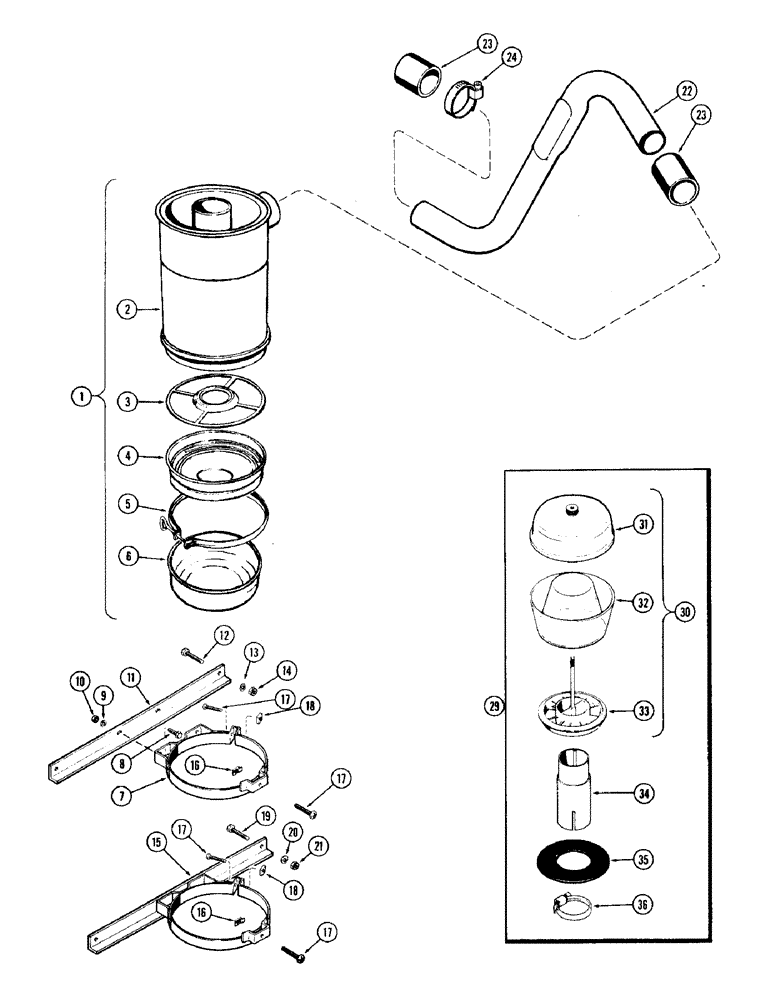

Запчасти Case IH 930-SERIES (006) - AIR CLEANER, (401) DIESEL ENGINE (02) - ENGINE

1

A23801

CLEANER ASSY. - air, Includes: Ref.

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

A24174

SCREEN

1шт.

4

A24176

BAFFLE - inner

1шт.

5

A24175

CLAMP - oil cup

1шт.

6

A24173

CUP - oil

1шт.

7

A10867

BAND - upper, air cleaner mounting

1шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

11

A23786

BRACE - radiator side member

1шт.

12

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

13

193-45

WASHER,Ext-Int Tooth, 5/16"

- (5/16" ext.-int. Shakeproof)

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

2шт.

15

A23798

SUPPORT ASSY. - lower, air cleaner

1шт.

16

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - (1/4" N.C. cage)

1шт.

17

75-424

SCREW

- (1/4 x 1/2" N.C rd. hd.)

4шт.

18

25-224

SQUARE NUT,Sq, 1/4"-20

- (1/4" N.C sq.)

2шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- (3/8" N.C hex.)

2шт.

22

A23803

TUBE

- air, Serial Range: cleaner-manifold

1шт.

23

A23802

HOSE

- tube

2шт.

24

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose (2-3/16" to 3-3/4")

4шт.

29

A24434M

PRE-CLEANER ATTACHMENT, Includes: Ref 30 - 36

1шт.

30

A24391

AIR CLEANER

PRE-CLEANER ASSY, Includes: Ref. 31 - 33

1шт.

31

73187

COVER

- w/nut, pre-cleaner

1шт.

32

365413R1

BOWL

(clear plastic), pre-cleaner

1шт.

33

NSS

NOT SOLD SEPARAT

BAFFLE - lower, pre-cleaner

1шт.

34

A24389

EXTENSION - air stack, pre-cleaner

1шт.

35

A24390

SHIELD

pre-cleaner

1шт.

36

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - (2-5/16" to 3-1/4"), pre-cleaner

1шт.
