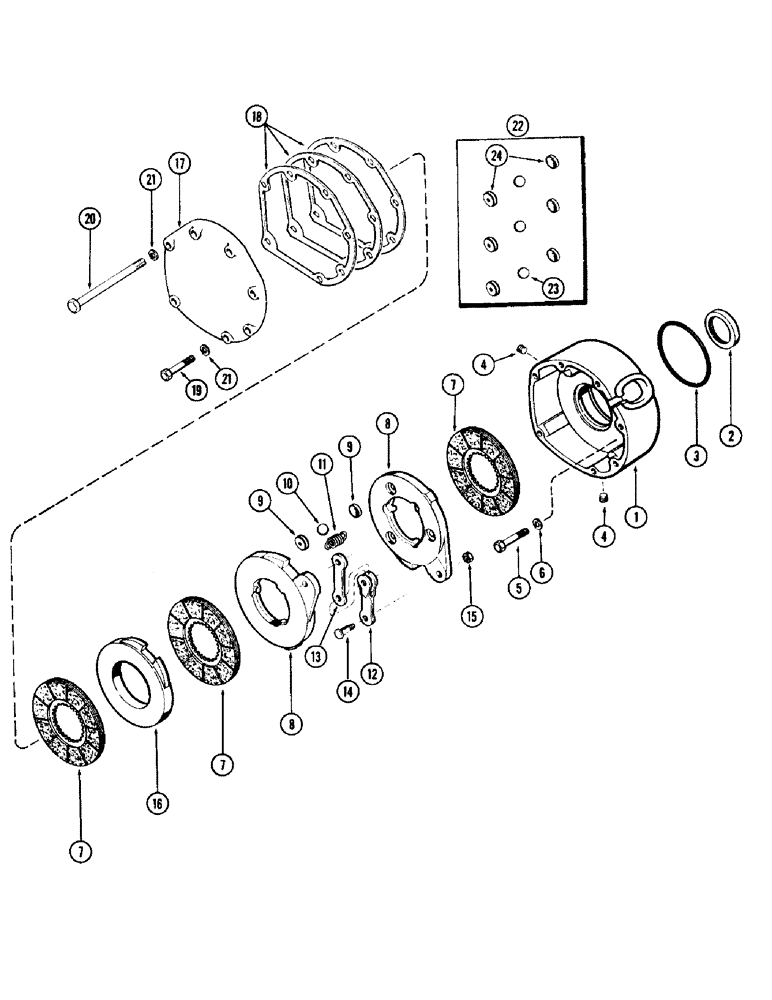

Запчасти Case IH 930-SERIES (112) - BRAKES, FIRST USED TRANSMISSION SERIAL NUMBER 2234271 (07) - BRAKES

1

A57656

COVER ASSY. - brake, inner, Includes Ref: 2

2шт.

2

A57658

OIL SEAL

- oil (3-1/2 x 4-1/4 x 3/8")

1шт.

3

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O" RING - inner cover (5-5/8 x 5-7/8 x 1/8")

2шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- cover (1/8" P.T., sckt. hd.)

4шт.

5

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- cover (1/2 x 2-1/4" N.C. hex.)

8шт.

6

92-8

LOCK WASHER,1/2"

8шт.

7

A41825

BRAKE DISC

DISC - brake, w/lining

6шт.

Part of P/N A42041 Brake Kit

1шт.

8

A31126

DISC

- brake actuating

4шт.

9

A41823

INSERT

- ball seat (Std.) (See ref. 22)

12шт.

Part of P/N A42041 Brake Kit

1шт.

10

211-15

BALL,5/8" Dia

- actuating disc (.) (Std.) (See ref. 22) 5/8" Dia

6шт.

11

A41816

SPRING

- actuating disc (white color coded)

6шт.

Part of P/N A42041 Brake Kit

1шт.

12

A31120

LINK

- actuating disc (straddle)

2шт.

13

A31119

LINK

- actuating (single)

2шт.

14

A31121

STEP BOLT

BOLT - disc link

4шт.

15

25-156

JAM NUT,Jam, 3/8"-24, G5

- link bolt (3/8" N.F. hex., jam)

4шт.

16

A32779

PLATE ASSY.

DISC - intermediate

2шт.

17

A57928

COVER

- brake, outer

2шт.

Part of P/N A42041 Brake Kit

1шт.

18

A57927

SHIM,.0897" Thk

Outer cover .0897" Thk

6шт.

Part of P/N A42041 Brake Kit

1шт.

19

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- cover (1/2 x 3" N.C. hex.) (3 L.H. & 4 R.H.)

7шт.

Part of P/N A42041 Brake Kit

1шт.

19

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Cover (L.H. side) Hex, 1/2"-13 x 3 1/4", G5

1шт.

Part of P/N A42041 Brake Kit

1шт.

20

15-8116

BOLT

- cover (1/2 x 7-1/4" N.C. hex.) (2 L.H. & 3 R.H.)

5шт.

Part of P/N A42041 Brake Kit

1шт.

20

A57872

BOLT

- cover (1/2 x 7-1/2" N.C. hex.) (L.H. side)

1шт.

Part of P/N A42041 Brake Kit

1шт.

21

92-8

LOCK WASHER,1/2"

14шт.

A42041

KIT

BRAKE KIT, Includes: Ref. 7, 9, 11 and 17 - 20

1шт.

22

A41826

INSERT

BALL & INSERT KIT - heavy duty (for 1 brake), Includes Ref: 23 and 24

2шт.

23

A41818

BALL

- actuating disc (5/8" dia.)

3шт.

24

A41827

INSERT

- ball seat

6шт.
