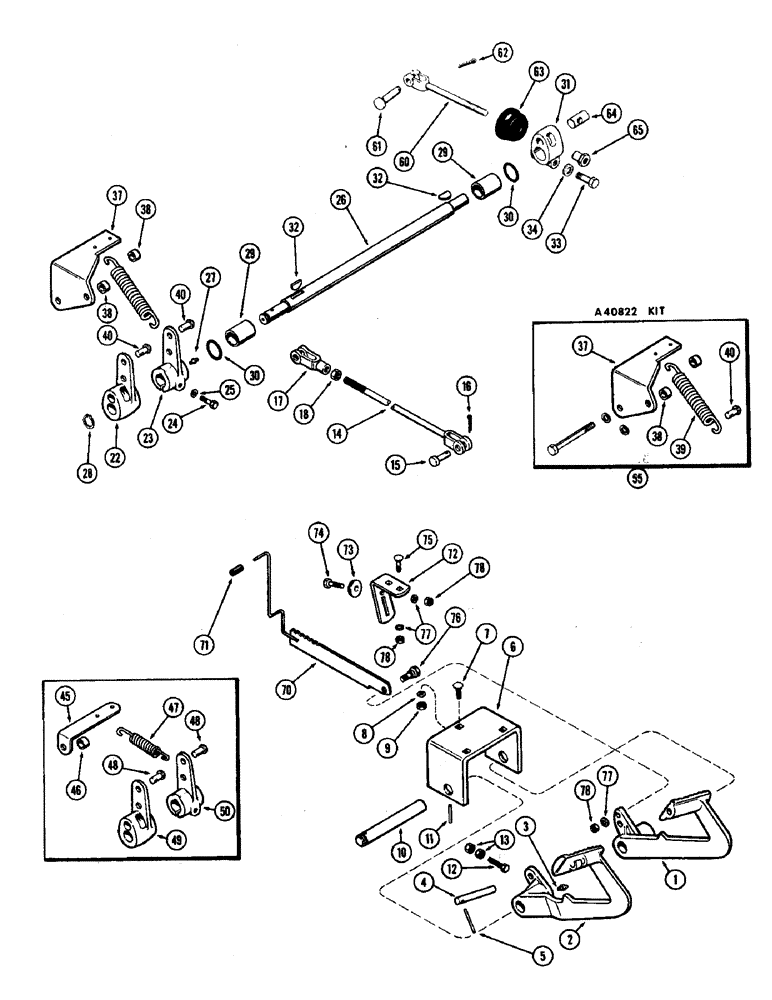

Запчасти Case IH 930-SERIES (110) - BRAKE CONTROLS, USED PRIOR TO TRACTOR SERIAL NUMBER 8282440 (07) - BRAKES

1

A33121

PEDAL - L.H. brake (See A41383 Fig. 111A)

1шт.

2

A33120

PEDAL - R.H. brake (See A41383 Fig. 111A)

1шт.

3

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" drive)

2шт.

4

A27104

PIN - interlock, brake pedal

1шт.

5

135-102

PIN - (3/8" x 2" groove)

1шт.

6

A23833

BRACKET - pedal pivot shaft (See A41383 Fig. 111A)

1шт.

7

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - brkt. (3/8" x 1-1/4" N.C. carr.)

3шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

3шт.

10

A23825

SHAFT - pivot, brake pedal (7-3/16" long) (See A41383 Fig. 111A)

1шт.

11

138-102

LOCK PIN,3/16" x 1 3/4", Slotted

PIN, , Pivot shaft 3/16" x 1 3/4", Slotted

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Pedal stop Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

13

25-146

JAM NUT,Jam, 3/8"-16, G5

- lock, pedal stop bolt (3/8" N.C. jam)

2шт.

14

A32671

ROD - brake pedal to lever (17-1/4" long) (See A41383 Fig. 111A)

2шт.

15

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, brake rod yoke

2шт.

16

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

17

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - brake rod end

2шт.

18

25-118

NUT,1/2"-20, G5

- (1/2" N.C. hex.)

2шт.

22

A34226

LEVER

- brake, R.H. (1-3/4" between hole ctrs.) (see Fig. 111A, Refs. 48 & 50) (See A41383 Fig. 111A) (1st used trac. ser. no. 8279700)

1шт.

23

A34227

LEVER - brake, L.H. inter. (1-3/4" between hole ctrs.) (See Fig. 111B, Refs. 49 & 50) (See A41383 Fig. 111A) (1st used trac. ser. no. 8279700)

1шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2" x 1-3/4" N.C. hex.)

1шт.

25

92-8

LOCK WASHER,1/2"

1шт.

26

A32670

SHAFT - cross, R.H.

1шт.

27

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, cross shaft (1/4" drive)

1шт.

28

F62023

SNAP RING,#93, Ext

Ring, Snap, , brake lever #93, Ext

1шт.

29

A28201

SLEEVE

- cross shaft, L.H. (3" long)

1шт.

29

A28200

SLEEVE

- cross shaft, R.H. (2" long)

1шт.

30

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - sleeve, (1-1/8 x 1-3/8 x 1/8")

2шт.

31

A26356

LEVER - brake, L.H.

1шт.

32

126-132

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

Cross shaft #21, 1/4" x 1 1/4", HT

2шт.

33

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- L.H. lever (1/2" x 1-3/4" N.C. hex.)

2шт.

34

92-8

LOCK WASHER,1/2"

1шт.

37

A34223

BRACKET

- return spring (See Ref. 45) (See A41383) (Cont'd. from Fig. 110)

1шт.

38

A21758

BUSHING

SPACER - brkt. (1/2 x 27/32 x 3/8")

2шт.

39

CASA34224

SPRING

- brake pedal return (See Ref. 47) (7-1/2" free length w/32 coils)

2шт.

40

A34225

PIN

- spring anchor (w/ctsk. hole)

2шт.

45

A32676

BRACKET - return spring (See Ref. 55)

1шт.

46

A21758

BUSHING

SPACER - return spring bracket (1/2 x 27/32 x 3/8") (See Ref. 55) (5-1/4" free length w/26 coils)

2шт.

47

A24051

SPRING

- brake pedal return (See Ref. 55)

1шт.

48

A33122

X

PIN - (w/out ctsk. hole) (Order A34225) (See Ref. 55)

2шт.

49

A32672

LEVER - R.H. (1-1/4" between hole ctrs.) (Used prior to trac. ser. no. 8279700)

1шт.

50

A32673

LEVER - L.H. (1-1/4" between hole ctrs.) (Used prior to trac. ser. no. 8279700)

1шт.

55

A40822

KIT

CONVERSION KIT - brake pedal return

1шт.

60

A28203

ROD

- pull brake

2шт.

61

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, pull rod

2шт.

62

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

63

A27465

CAP

- dust, pull rod

2шт.

64

A27687

HARDWARE

TRUNNION - pull rod guide

2шт.

65

A27686

NUT

- pull rod adjusting

2шт.

70

A33123

RATCHET - parking brake (See A41383)

1шт.

71

A23953

TIP

- ratchet handle

1шт.

72

A23836

GUIDE - parking brake ratchet

1шт.

73

A29920

PAWL

- ratchet, lock

1шт.

74

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Pawl Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

75

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Bracket Short NK, 3/8"-16 x 1", G2

2шт.

76

A23824

STUD

- ratchet to brake pedal

1шт.

77

92-6

LOCK WASHER,3/8"

4шт.

78

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

A41383

BRAKE CONTROL KIT, Includes: Ref. 1, 2, 5, 8, 17, 18, 21, 26, 27, 45, 56 and 57 shown on Figure 108 and (1) A57420 Batt. case brace, (1) A57141 Plat. brace and miscellaneous hardware, not illustrated

1шт.
