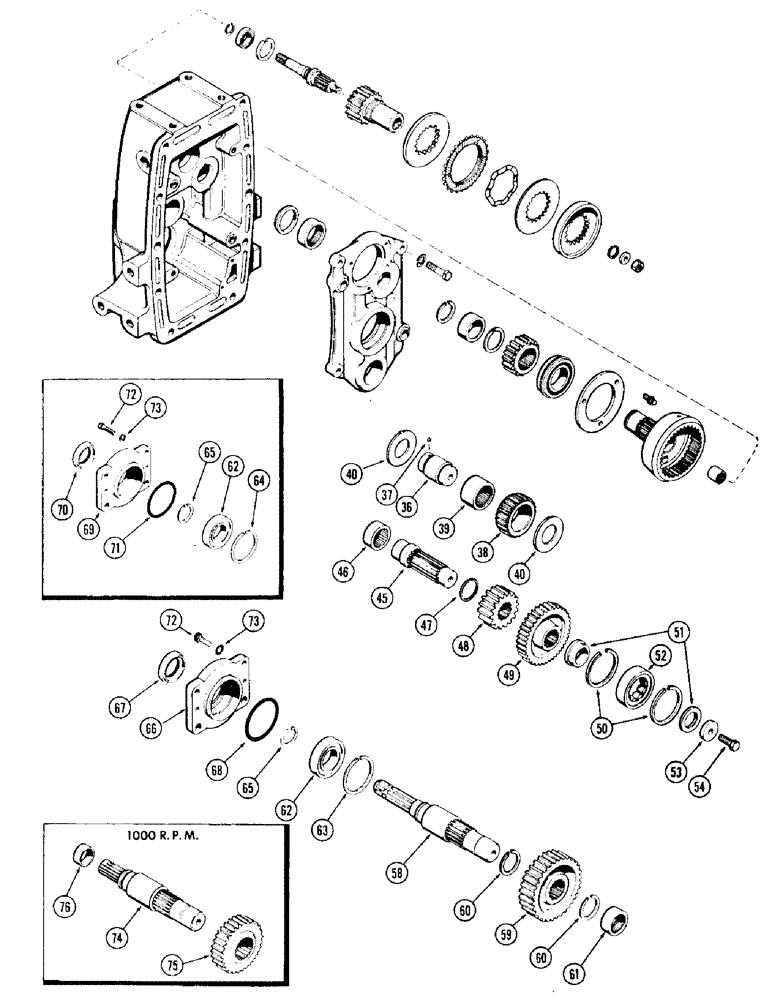

Запчасти Case IH 930-SERIES (159A) - P.T.O. DRIVE (06) - POWER TRAIN

36

A32400

SHAFT - upper idler gear (Cont'd. from Fig. 158)

1шт.

37

211-7

BALL,1/4" Dia

- idler shaft 1/4" Dia

1шт.

38

A34136

GEAR

- upper idler (25 ext. teeth) (2.376" I.D.) (See A32402 before ordering)

1шт.

39

A34137

NEEDLE BEARING,2" ID x 2.3770" OD x 1.5"

BEARING - needle (Torrington WJ-323824) (2.376" O.D.) (See A32404 before ordering)

1шт.

38

A32402

X

GEAR ASSY. - upper idler (25 ext. teeth) (2.375" I.D.) (Order 1-A34136 & 1-A34137), Includes Ref: 39

1шт.

39

A32404

X

BEARING - needle (Torrington B-3224) (2.375" O.D.) (Order 1-A34136 & 1-A34137)

1шт.

40

A32401

WASHER,44.83mm ID x 82.55mm OD x 1.6mm Thk

- thrust, idler gear

2шт.

45

A32405

SHAFT

- lower idler & PTO drive

1шт.

46

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, lower idler shaft

1шт.

47

A7339

RING

- snap, driven pinion ret.

1шт.

48

A32410

PINION

- driven (1000 RPM) (30 ext. teeth)

1шт.

48

NLS

NO LONGER SERVICED

PINION - driven (540 RPM) (21 ext. teeth)

1шт.

49

A32408

GEAR

- lower idler (36 ext. teeth)

1шт.

50

A32422

SNAP RING,2.36mm Thk, Int

RING - snap, brg. ret.

2шт.

51

A32409

BEARING

- inner, w/race

1шт.

52

A32423

BEARING ASSY

BEARING - roller

1шт.

53

A57462

WASHER

- (17/32 x 1-7/8 x 3/8") (Replaces A32427)

1шт.

54

121-415

BOLT,Hex, 1/2" x 1"

- ret. washer (1/2 x 1" N.C. hex.)

1шт.

58

A57171

SHAFT

- PTO output (540 RPM) (6 spline 13-5/8" long) (Replaces A32411)

1шт.

IF DEALER LOOKING FOR 33 TOOTH SHAFT OF THE SAME LENGHT THE PART NO# A64592. NOTE FOUND IN HARD COPY.

1шт.

59

A32420

GEAR - PTO drive (540 RPM) (40 ext. teeth)

1шт.

60

A32413

SNAP RING,#212, 1.997", Ext

RING - snap, drive gear ret.

2шт.

61

A32424

NEEDLE BEARING,1.875" ID x 2.2505" OD x 1"

BEARING - needle, output shaft, front

1шт.

62

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, output shaft, rear

1шт.

63

A57921

SNAP RING,3.346", Int, #334

Ring, Snap, , rear brg, inner, Internal, Truarc (7/64" thick), used w/A57922 carrier, 1st used trans. s/n 2235955 3.346", Int, #334

1шт.

64

A32417

RING, SNAP

RING - snap, rear brg. ret., inner (Internal) (1/16" thick) (Used w/A32414 carrier) (used prior to trans. ser. no. 2235855)

1шт.

65

A27085

RING

- snap, rear brg. ret., outer (Replaces A32412)

1шт.

66

A57922

CARRIER

ASSY. - output shaft brg. (Used w/A57921 snap ring) (See Ref. 63) (1st used trans. ser. no. 2235955), Includes Ref: 67 and 68

1шт.

67

A57708

SEAL

- oil (1-3/4 x 2-1/2 x 1/2")

1шт.

68

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

"O" RING - (3-7/8 x 4-1/8 x 1/8")

1шт.

69

A32414

CARRIER

ASSY. - output shaft bearing (used w/A32417 snap ring) (see Ref. 64) (Order 1-A57922 carrier & 1-A57921 snap ring) (used prior to trans. ser. no. 2235955), Includes Ref: 70

1шт.

70

A57708

SEAL

- oil (1-3/4 x 2-1/2 x 1/2") (Replaces A32416)

1шт.

71

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

"O" RING - brg. carrier (3-7/8 x 4-1/8 x 1/8")

1шт.

72

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT - brg. carrier (3/8 x 1" N.C., 12 pt. hd.)

2шт.

73

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

74

A57172

SHAFT

- PTO output (1000 RPM) (21 spline 11-5/8" long) (Replaces A32418)

1шт.

75

A32421

GEAR WHEEL

GEAR - PTO drive (1000 RPM) (31 ext. teeth)

1шт.

76

A32419

SLEEVE CYLINDER

SLEEVE - oil seal (1000 RPM only) (1-5/8 x 1-3/4 x 5/8")

1шт.
