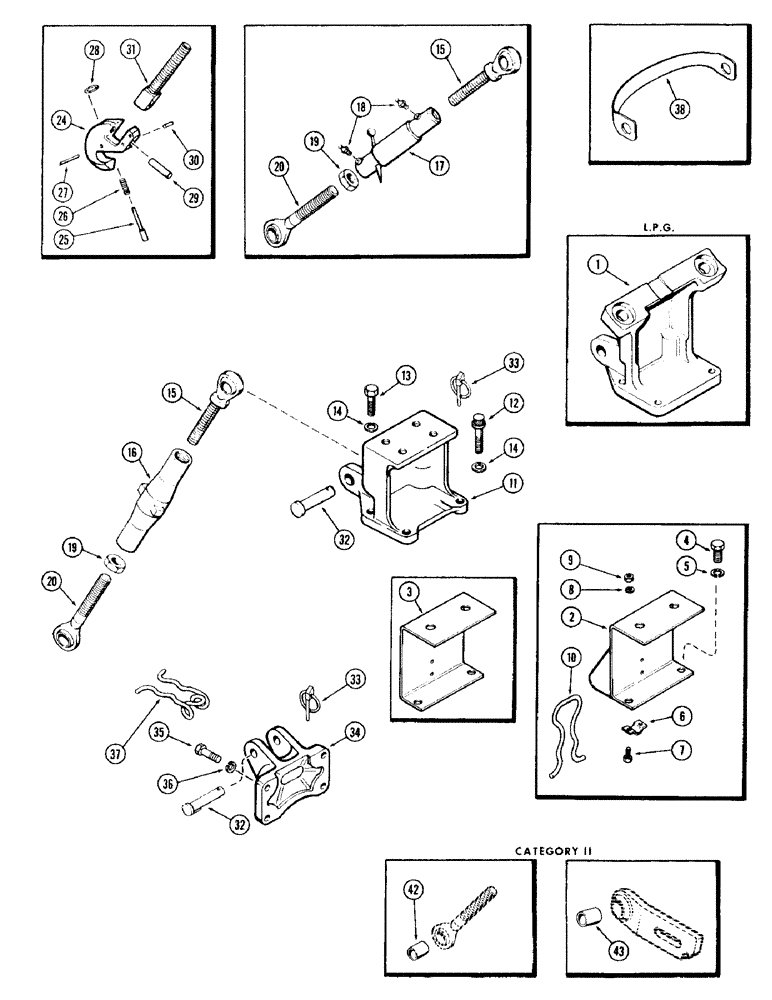

Запчасти Case IH 930-SERIES (142) - THREE POINT HITCH, UPPER LIFT LINK AND SUPPORTS (06) - POWER TRAIN

1

A33505

BRACKET - upper link & fuel tank supt. (L.P.)

1шт.

2

A60099

SUPPORT - upper link & fuel tank (Diesel & Gas) (w/upper lift link stop)

1шт.

3

A57981

SUPPORT - uper link & fuel (diesel & gas) (w/out upper link stop) (order A60099)

1шт.

4

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

Support Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

A57983

RETAINER - trunbuckle transport clip

1шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Ret. to supt. Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

25-104

NUT,1/4"-20, G5

2шт.

10

A57982

CLIP - turnbuckle transport

1шт.

11

A33506

BRACKET - upper link & fuel tank supt. (Diesel & Gas) (w/upper link lug)

1шт.

12

166-115

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

- brkt. (5/8 x 2" N.C., 12 pt. hd.) (Replaces 166-155)

2шт.

13

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Bracket Hex, 5/8"-11 x 2", G5

2шт.

14

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

A34196

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- upper link, front

1шт.

16

A57498

TURNBUCKLE

- upper link adjusting (1st used trans. ser. no. 2229995)

1шт.

17

A32260

TURNBUCKLE - upper link adjusting (Order A57498) (used prior to trans. ser. no. 2229995)

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.) (used w/A32260)

2шт.

19

25-1520

NUT

- turnbuckle lock (1-1/4" N.F. jam)

1шт.

20

A34198

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- upper link, rear

1шт.

1st used Tractor Ser. No. 8259583

1шт.

24

NS

NOT SERVICED

CLAW - upper link, rear (Order A34198)

1шт.

Used prior to Tractor Ser. No. 8259583

1шт.

25

NS

NOT SERVICED

PIN - claw lock (Order A34198)

1шт.

Used prior to Tractor Ser. No. 8259583

1шт.

26

NS

NOT SERVICED

SPRING - claw lock (Order A34198)

1шт.

Used prior to Tractor Ser. No. 8259583

1шт.

27

NS

NOT SERVICED

PIN - lock guide (Order A34198)

1шт.

Used prior to Tractor Ser. No. 8259583

1шт.

28

NS

NOT SERVICED

RING - pull, lock pin (Order A34198)

1шт.

Used prior to Tractor Ser. No. 8259583

1шт.

29

NS

NOT SERVICED

PIN - claw hinge (Order A34198)

1шт.

Used prior to Tractor Ser. No. 8259583

1шт.

30

NS

NOT SERVICED

PIN - hinge pin ret. (Order A34198)

1шт.

Used prior to Tractor Ser. No. 8259583

1шт.

31

NS

NOT SERVICED

LINK - claw (Order A34198)

1шт.

Used prior to Tractor Ser. No. 8259583

1шт.

32

A33432

PIN

- upper link

2шт.

33

A33509

PIN,11.18mm OD

ASSY. - klick

2шт.

34

A32255

BRACKET - upper link mtg.

1шт.

35

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Mounting bracket Hex, 5/8"-11 x 1 3/4", G5, Full Thd

4шт.

36

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

37

A34242

CLIP

- mast ret. (spring clip)

1шт.

38

A33719

STRAP

- mast ret. (plastic) (Order A34242)

1шт.

42

A33499

ADAPTER

- upper (Cat. I to Cat. II hitch pins)

1шт.

43

A33498

ADAPTER

- lower (Cat. I to Cat. II hitch pins)

2шт.
