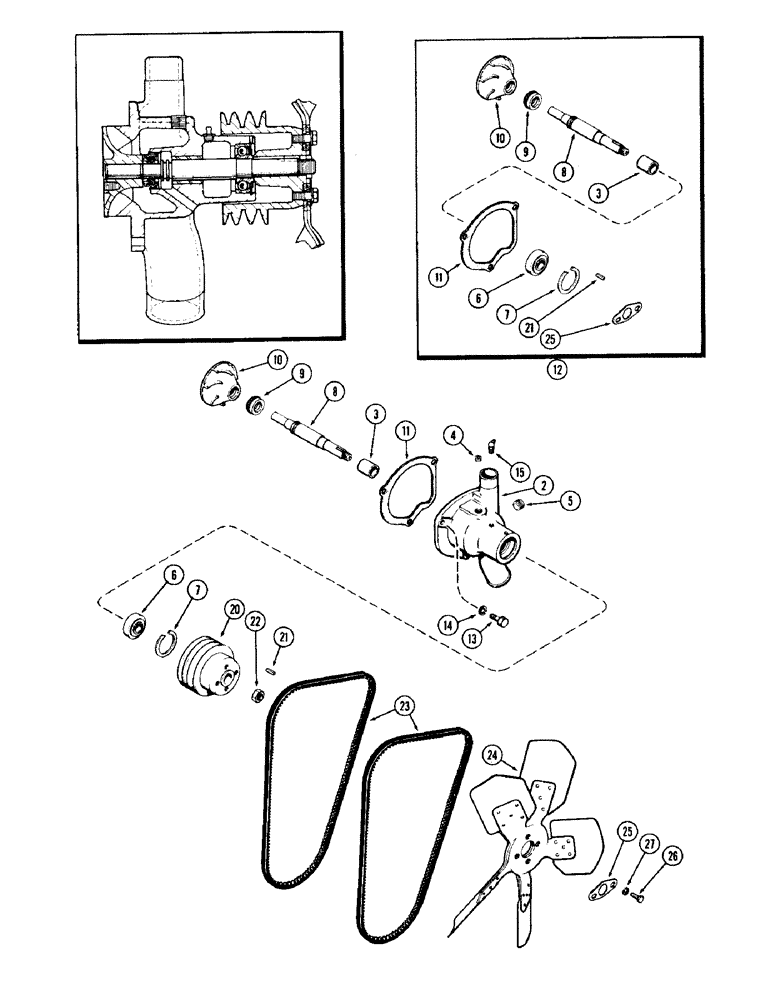

Запчасти Case IH 930-SERIES (005A) - WATER PUMP (02) - ENGINE

A24809

PUMP

WATER PUMP ASSY. - (not illust.), Includes Ref:2 - 11

1шт.

2

A24992

THRUST WASHER

BODY ASSY, Includes Ref:3 - 5

1шт.

3

A27900

BUSHING

1шт.

Part of P/N A24180 Water Pump Repair kit

1шт.

4

221-1843

PLUG

- pipe, 3/8" hex. sckt, hd.

1шт.

5

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, 3/4" hex. sckt. hd.

1шт.

6

A27152

BALL BEARING,19.99mm ID x 52mm OD x 19mm W

BEARING - pump shaft

1шт.

Part of P/N A24180 Water Pump Repair kit

1шт.

7

A27150

RING

- snap, bearing retaining

1шт.

Part of P/N A24180 Water Pump Repair kit

1шт.

8

A23636

SHAFT

1шт.

Part of P/N A24180 Water Pump Repair kit

1шт.

9

A24995

SEAL

1шт.

Part of P/N A24180 Water Pump Repair kit

1шт.

10

A26299

IMPELLER

1шт.

Part of P/N A24180 Water Pump Repair kit

1шт.

11

A57596

GASKET

- pump to block (Replaces A27899)

1шт.

Part of P/N A24180 Water Pump Repair kit

1шт.

12

A24180

KIT

repair, water pump, Includes: Ref. 3, 6 - 11, 21 and 25

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

14

92-6

LOCK WASHER,3/8"

3шт.

15

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 67-1/2 Deg.)

1шт.

20

A21460

PULLEY

- fan

1шт.

21

A21075

KEY

-, Serial Range: fan-shaft

1шт.

Part of P/N A24180 Water Pump Repair kit

1шт.

22

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam (5/8" N.F. hex.)

1шт.

23

A34820

SET OF BELTS

BELT, Fan drive (Set of 2)

1шт.

24

A33657

FAN

- engine (5 blades)

1шт.

25

A26707

LOCK

- shaft nut

1шт.

Part of P/N A24180 Water Pump Repair kit

1шт.

26

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.
