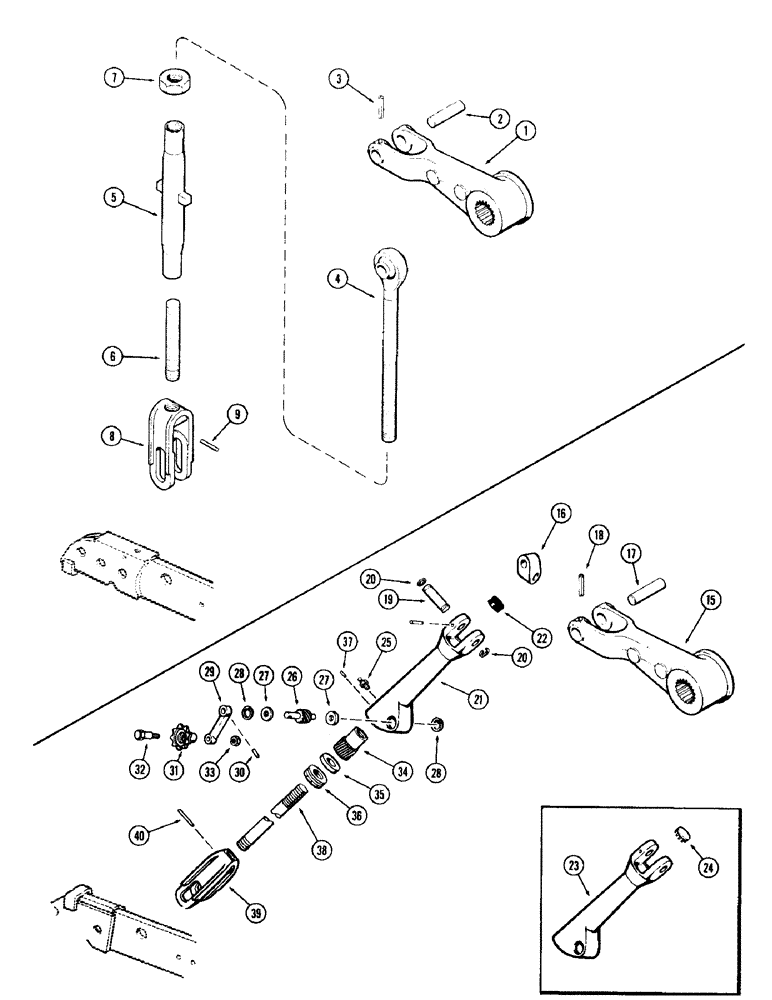

Запчасти Case IH 930-SERIES (138) - THREE POINT HITCH, LIFT LINKS, FIRST USED TRANSMISSION SERIAL NUMBER 2229995 (06) - POWER TRAIN

1

A57494

ARM

- rockshaft, lift links

1шт.

2

A32268

PIN

- upper, Serial Range: link-arm

2шт.

3

138-2047

PIN,1/4" x 1 7/8", Coiled

2шт.

4

A57908

LINK

ASSY. - upper

2шт.

5

A57491

TURNBUCKLE

- lift link adjustment

2шт.

6

A57496

LINK

- lower

2шт.

7

129-371

NUT,Jam, 1 1/8"-12, G5, LH

- lock, lower link (1-1/8" N.F. jam, L.H. thread)

2шт.

8

A32251

YOKE

- lift link

2шт.

9

138-158

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, , link to yoke 5/16" x 1 5/8", Slotted

2шт.

15

A33376

ARM - rockshaft, lift links

2шт.

16

A32269

BLOCK - swivel, lift link

2шт.

17

A32268

PIN

- swivel, Serial Range: block-arm

2шт.

18

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN - (1/4 x 1-7/8" roll) (Replaces 138-2016)

2шт.

19

A33951

PIN - swivel, Serial Range: block-housing

2шт.

20

F7135

RING, SNAP

RING - snap, pin retaining

4шт.

21

A34912

HOUSING

ASSY. - lift link, upper (1st used trac. ser. no. 8321717), Includes Ref: 22

2шт.

22

A34908

PLUG

- housing (rubber)

1шт.

23

A34251

HOUSING - lift link, upper (For 1/8" roll pin) (used trac. ser. nos. 8284457 thru 8321716) (Order A34912)

2шт.

23

N1047064

SUPPORT

HOUSING - lift link, upper (For 3/32" roll pin) (used prior to trac. ser. no. 8284457) (Order 1-A34251, 1-A34252 & 1-138-2026)

2шт.

24

205-36

HOLE PLUG BUTTON,7/8"

PLUG - ( button type) (use w/A34251 & A34201 hsg.) 7/8"

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

26

A32273

WORM

- level gear drive

2шт.

27

A34811

PLUG

- thrust, worm shaft (Replaces A32976)

4шт.

28

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, plug

4шт.

29

A32248

ARM

- worm crank

2шт.

30

138-2015

PIN,1/4" x 7/8", Coiled

arm ret. 1/4" x 7/8", Coiled

2шт.

31

A33494

KNOB

- crank handle

2шт.

32

A33495

BOLT

BOLT - knob pivot

2шт.

33

131-706

LOCK NUT

NUT - (3/8" N.F. hex.)

2шт.

34

A32975

POINT

GEAR - lift link leveling

2шт.

35

B15878

WASHER

- thrust, leveling gear

2шт.

36

A34252

PLUG

- thrust, leveling gear (for 1/8" roll pin) (1st used trac. ser. no. 8284457)

2шт.

36

A32272

PLUG

- thrust, leveling gear (for 3/32" roll pin) (used prior to trac. ser. no. 8284457) (Order A34252)

2шт.

37

138-2026

PIN,1/8" x 3/4", Coiled

used w/A34252 plug) (1st used trac. ser. no. 8284457) 1/8" x 3/4", Coiled

2шт.

37

138-2020

PIN,3/32" x 1/4", Coiled

(used w/A32272 plug) (used prior to trac. ser. no. 8284457) 3/32" x 1/4", Coiled

2шт.

38

A32250

SHAFT - lift link, lower

2шт.

39

A32251

YOKE

- lift link, lower

2шт.

40

138-158

LOCK PIN,5/16" x 1 5/8", Slotted

Pin, , yoke to shaft 5/16" x 1 5/8", Slotted

2шт.
