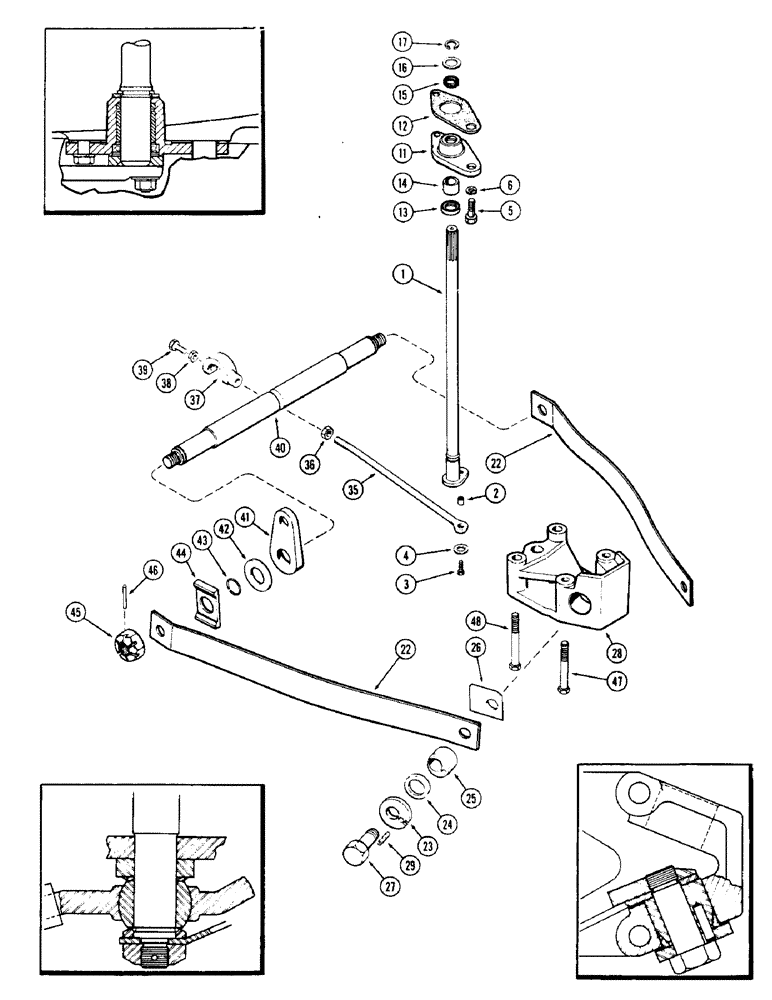

Запчасти Case IH 930-SERIES (136) - DRAFT-O-MATIC LOWER SENSING LINKAGE, FIRST USED TRACTOR SERIAL NUMBER 8348489 (06) - POWER TRAIN

1

A34834

SHAFT

- draft signal

1шт.

2

A34836

SPACER

- signal arm (5/16 x 1/2 x 15/32")

1шт.

3

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Spacer Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

- spacer bolt (3/8 x 7/8 x 5/64")

1шт.

5

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Support Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

11

A32203

BUSHING

SUPPORT - signal shaft

1шт.

12

A32210

GASKET

- support

1шт.

13

A23903

OIL SEAL

- oil (1 x 1-1/2 x 1/4")

1шт.

14

A31082

BUSHING

BEARING - support (1 x 1-1/4 x 1")

1шт.

15

A9394

RING

QUAD RING - support (1 x 1-1/4 x 9/64")

1шт.

16

B18275

WASHER

- signal shaft (1-1/32 x 1-1/2" x 12 Ga.)

1шт.

17

A33315

RING

- snap, signal shaft ret.

1шт.

22

A57581

SPRING

- wishbone

2шт.

For satisfactory operation it is recommended that new springs be installed in pairs.

1шт.

Part of P/N A57793 Wishbone Kit

1шт.

23

A57585

WASHER

- clamp, wishbone adj.

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

24

A57584

RING

- cam adjusting

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

25

A57582

CLAMP

CAM - wishbone adjusting

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

26

A57583

CLAMP

- wishbone adjusting

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

27

A57943

STEP BOLT

BOLT - wishbone spring cam

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

28

A57956

BRACKET

- drawbar pivot pin

1шт.

Part of P/N A57793 Wishbone Kit

1шт.

28

138-2042

PIN,5/16" x 1 1/4", Coiled

clamp washer 5/16" x 1 1/4", Coiled

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

35

A33405

LINK

- draft signal control

1шт.

36

25-158

JAM NUT,Jam, 1/2"-20, G5

- link lock (1/2" N.C. hex., jam)

1шт.

37

A33006

LOCK

- control link

1шт.

38

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. hex., jam)

1шт.

39

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Lock Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

40

A57587

BAR

- wishbone cross

1шт.

Part of P/N A57793 Wishbone Kit

1шт.

41

A32953

LINK

- cross bar

2шт.

42

A34921

WASHER

- draft arm pivot, inner (1-1/2" I.D.)

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

42

A57588

RING

- snap, wishbone cross

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

44

A57589

PLATE

- rear wishbone spacer

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

45

A33404

NUT

- wishbone retaining

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

46

138-2014

PIN,3/16" x 1 7/8", Coiled

nut retainer 3/16" x 1 7/8", Coiled

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

47

15-1080

X

BOLT - drawbar brkt. (5/8 x 5" N.C. hex.)

2шт.

Part of P/N A57793 Wishbone Kit

1шт.

48

15-1284

BOLT

- drawbar brkt. (3/4 x 5-1/4" N.C. hex.)

2шт.

Part of P/N A57793 Wishbone Kit

1шт.
