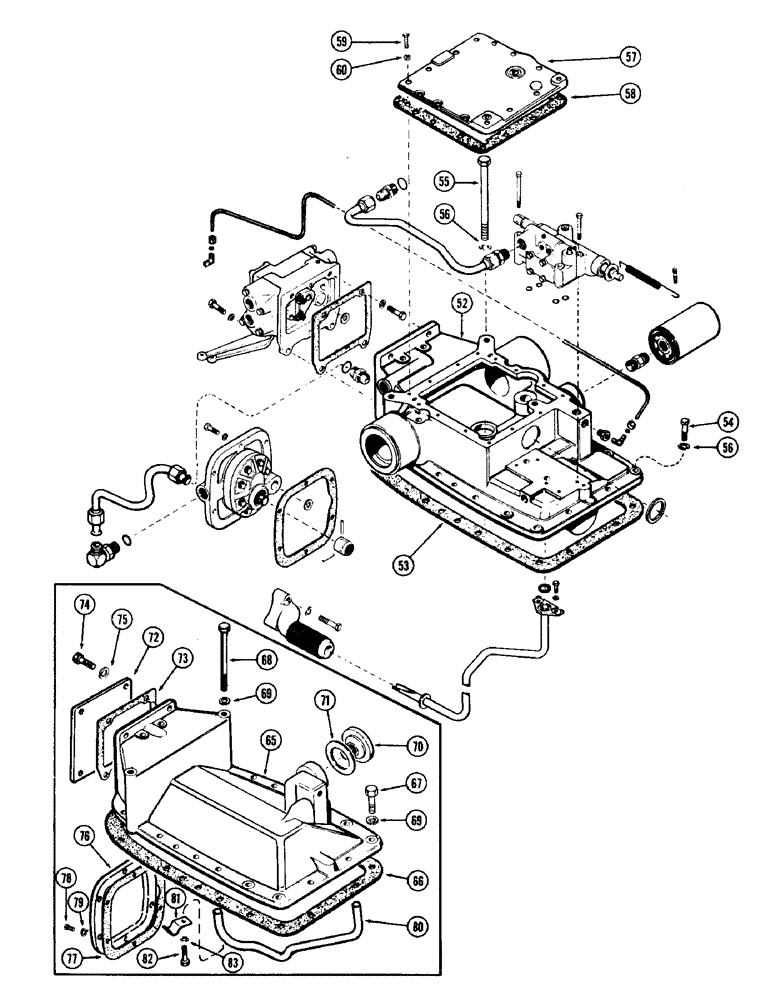

Запчасти Case IH 930-SERIES (131A) - DRAFT-O-MATIC EQUIPMENT AND LINES (06) - POWER TRAIN

52

A34794

HOUSING ASSY. - (See Fig. 132) (Cont'd. from Fig. 130)

1шт.

53

A32299

GASKET

- rockshaft hsg.

1шт.

54

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

10шт.

54

13-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- housing (1/2 x 5-3/4" N.C. hex.)

2шт.

55

15-8112

BOLT

- (De-luxe seat only) (1/2 x 7" N.C. hex.)

2шт.

55

15-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

- (std. seat only) (1/2 x 8-1/2" N.C. hex.)

2шт.

56

92-8

LOCK WASHER,1/2"

14шт.

57

A33382

COVER

- rockshaft hsg.

1шт.

58

A33383

GASKET

- hsg. cover

1шт.

59

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Cover Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

59

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

9шт.

60

92-5

LOCK WASHER,5/16"

12шт.

65

A33520

COVER - transmission, rear, parts used less hyd. and/or hitch

1шт.

66

A32299

GASKET

- rear cover, parts used less hyd. and/or hitch

1шт.

67

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover, parts used less hyd. and/or hitch Hex, 1/2"-13 x 1 1/2", G5, Full Thd

14шт.

68

15-8112

BOLT

- (De-luxe seat) (1/2 x 7" N.C. hex.), parts used less hyd. and/or hitch

2шт.

68

15-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

- (std. seat) (1/2 x 8-1/2" N.C. hex.), parts used less hyd. and/or hitch

2шт.

69

92-8

LOCK WASHER,1/2"

parts used less hyd. and/or hitch 1/2"

16шт.

70

A32355

COVER - filter opening, parts used less hyd. and/or hitch

1шт.

71

A32356

GASKET - filter cover, parts used less hyd. and/or hitch

1шт.

72

A32357

COVER - aux. valve opening, parts used less hyd. and/or hitch

1шт.

73

A32349

GASKET

- aux. valve cover, parts used less hyd. and/or hitch

1шт.

74

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd, Cover, Parts used less hyd. and/or hitch

2шт.

74

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- cover (1/2 x 1-1/2" N.C. hex.), parts used less hyd. and/or hitch

2шт.

75

92-8

LOCK WASHER,1/2"

parts used less hyd. and/or hitch 1/2"

4шт.

76

A32354

COVER - hyd. pump hole (PTO pump), parts used less hitch

1шт.

77

A32096

GASKET

- hyd. pump cover, parts used less hitch

1шт.

78

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Hyd. pump, parts used less hitch Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

79

92-6

LOCK WASHER,3/8"

parts used less hyd. and/or hitch 3/8"

6шт.

80

A33521

PIPE CLAMP

TUBE - aux. valve return, parts used less hyd. and/or hitch

1шт.

81

A33554

CLIP - return tube, parts used less hyd. and/or hitch

2шт.

82

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Clip, parts used less hyd. and/or hitch Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

83

92-5

LOCK WASHER,5/16"

parts used less hyd and/or hitch 5/16"

2шт.
