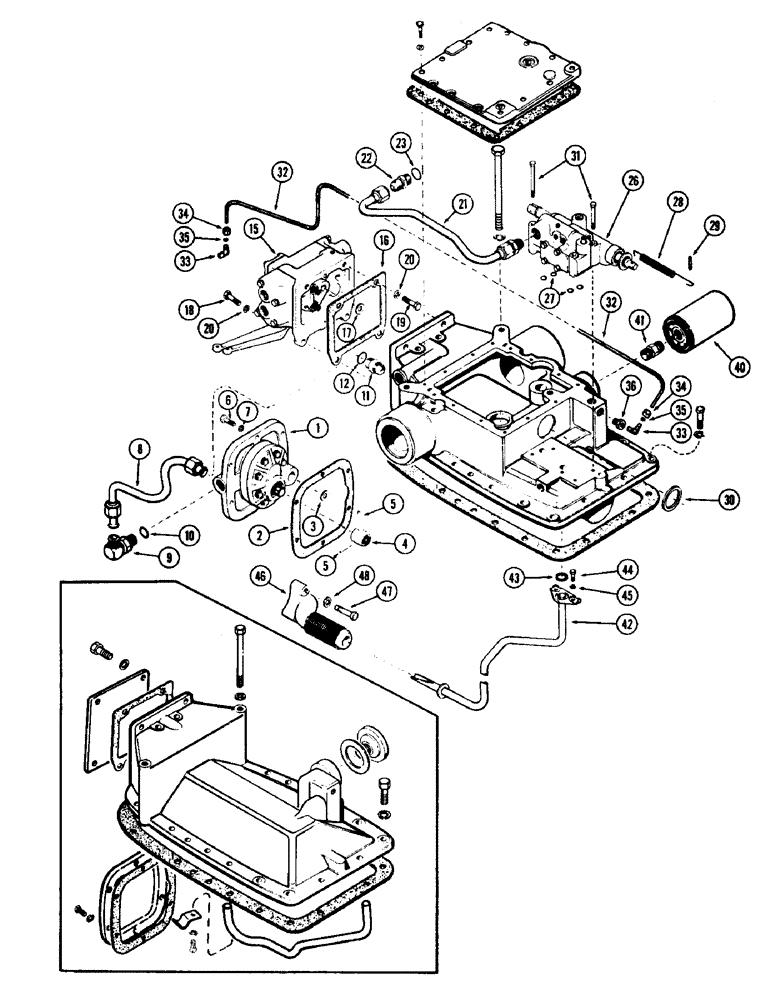

Запчасти Case IH 930-SERIES (130) - DRAFT-O-MATIC EQUIPMENT AND LINES (06) - POWER TRAIN

1

A34214

PUMP

PUMP ASSY. - hyd. (See Fig. 144)

1шт.

1

AR34214

REMAN-HYD PUMP

930 Series Case Comfort King 1/65-12/69

1шт.

1

AC34214

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

A32096

GASKET

GASKET - hyd. pump

1шт.

3

A28264

GASKET

RING - sealing (1-3/16 x 1-9/16 x 7/32")

1шт.

4

A32097

COUPLING, BREAK AWAY

COUPLING - hyd. pump

1шт.

5

138-2011

PIN,1/8" x 1 1/4", Coiled

Pin, , coupling to pump 1/8" x 1 1/4", Coiled

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Pump to housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

8

A33889

TUBE

TUBE - hyd., Serial Range: pump-hsg.

1шт.

9

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW, , Assy, Incl. Ref: 10 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - elbow (3/4 x 59/64 x 1/8")

1шт.

11

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY., Incl. Ref: 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - connector (3/4 x 59/64 x 1/8")

1шт.

15

A57571

VALVE

VALVE ASSY. - auxiliary (Warner) (See Fig. 150) (Order A34699)

1шт.

15

A34699

VALVE

VALVE ASSY. - auxiliary (Kingston) (See Fig. 152 & 154)

1шт.

16

A32349

GASKET

GASKET - aux. valve

1шт.

17

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

SEAL - aux. valve (21/32 x 29/32 x 9/64")

1шт.

18

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

BOLT, , Valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, , Valve Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

21

A60007

TUBE

TUBE - hsg. to valve (Replaces A33394)

1шт.

22

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY., Incl. Ref: 23

2шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - connector (3/4 x 59/64 x 1/8")

1шт.

26

A32978

VALVE

VALVE ASSY. - draft control (See Fig. 148)

1шт.

27

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve (1/2 x 11/16 x 3/32")

4шт.

28

A32306

SPRING

SPRING - draft control valve

1шт.

29

A32714

SPARE PART ROD - valve spring support

1шт.

30

A32307

SEAL

SEAL -, Serial Range: valve-hsg.

1шт.

31

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

BOLT, , Valve Hex, 5/16"-18 x 2 1/2", G5

3шт.

31

15-556

X

BOLT - valve (5/16 x 3-1/2" N.C. hex.)

1шт.

32

A57352

TUBE

TUBE - PTO clutch lubrication (Replaces A34140)

1шт.

33

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ELBOW ASSY. - PTO lub line (90deg.), Includes Ref: 34 and 35

2шт.

34

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" O.D. tube), Includes Ref: 35

1шт.

35

222-102

SLEEVE,1/4" Tube

SLEEVE, 1/4" Tube

1шт.

36

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

BUSHING - reducing (3/8" to 1/4")

1шт.

40

A32297

HYDRAULIC OIL FILTER

FILTER - hyd. oil

1шт.

41

A33415

SPARE PART ADAPTER - oil filter

1шт.

42

A32340

TUBE

TUBE - hyd. oil return

1шт.

43

A32343

SEAL

SEAL - return tube (47/64 x 1-13/64 x 13/64")

1шт.

44

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Return tube Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

45

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

46

A32344

STRAINER ASSY.

STRAINER ASSY. - inlet elbow

1шт.

47

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

BOLT - strainer (5/16 x 2" N.C. hex.)

2шт.

48

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.
