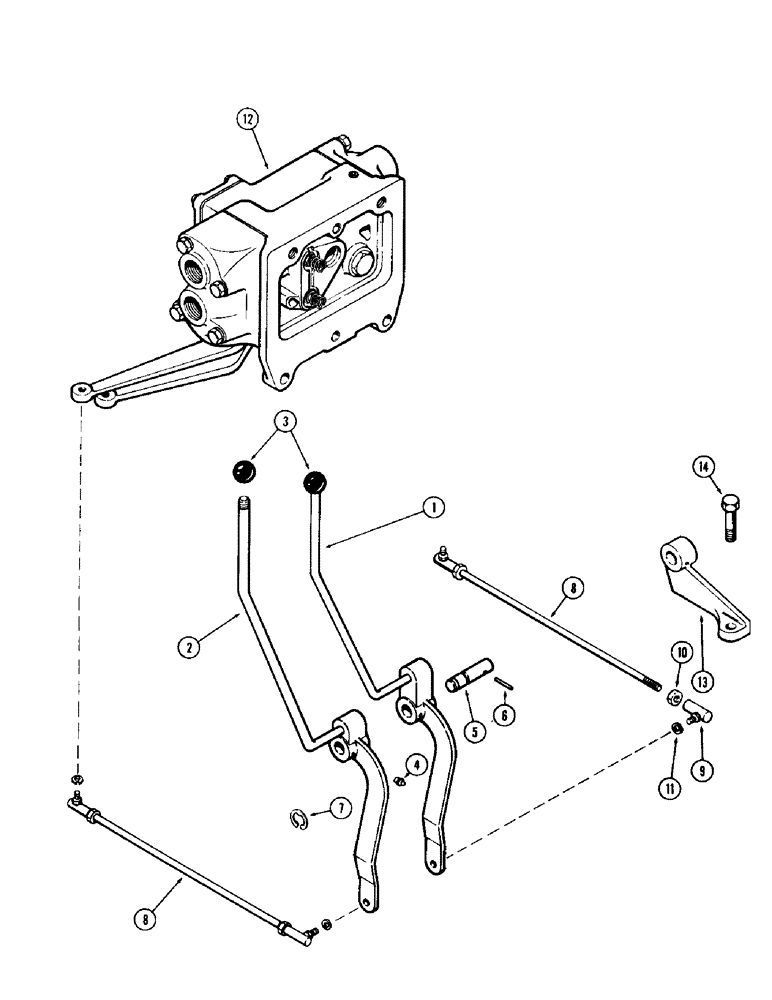

Запчасти Case IH 930-SERIES (129A) - AUXILIARY VALVE CONTROL LINKAGE (06) - POWER TRAIN

1

A33445

LEVER - inner, auxiliary valve

1шт.

2

A33447

LEVER - outer, auxiliary valve

1шт.

3

A23885

KNOB

- hand lever

2шт.

4

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease (1/4" drive, 67-1/2 deg.)

2шт.

5

A24056

STUD - valve lever pivot

1шт.

6

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

7

A20202

RING

- snap, lever ret. ("E" ring)

1шт.

8

A32713

ROD

- control, auxiliary valve

2шт.

9

A27382

BALL

JOINT - valve control rod

4шт.

10

25-155

JAM NUT,Jam, 5/16"-24, G5

- (5/16" N.F. hex.)

4шт.

11

92-5

LOCK WASHER,5/16"

4шт.

12

A57571

VALVE

PUMP ASSY. - auxilliary (Warner) (See Fig. 150) (Order A34699).

1шт.

12

A34699

VALVE

PUMP ASSY. - auxiliary (Kingston) (See Figs. 152 & 154)

1шт.

13

A34077

BRACKET - remote lever support (Used w/out D-o-M)

1шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.
