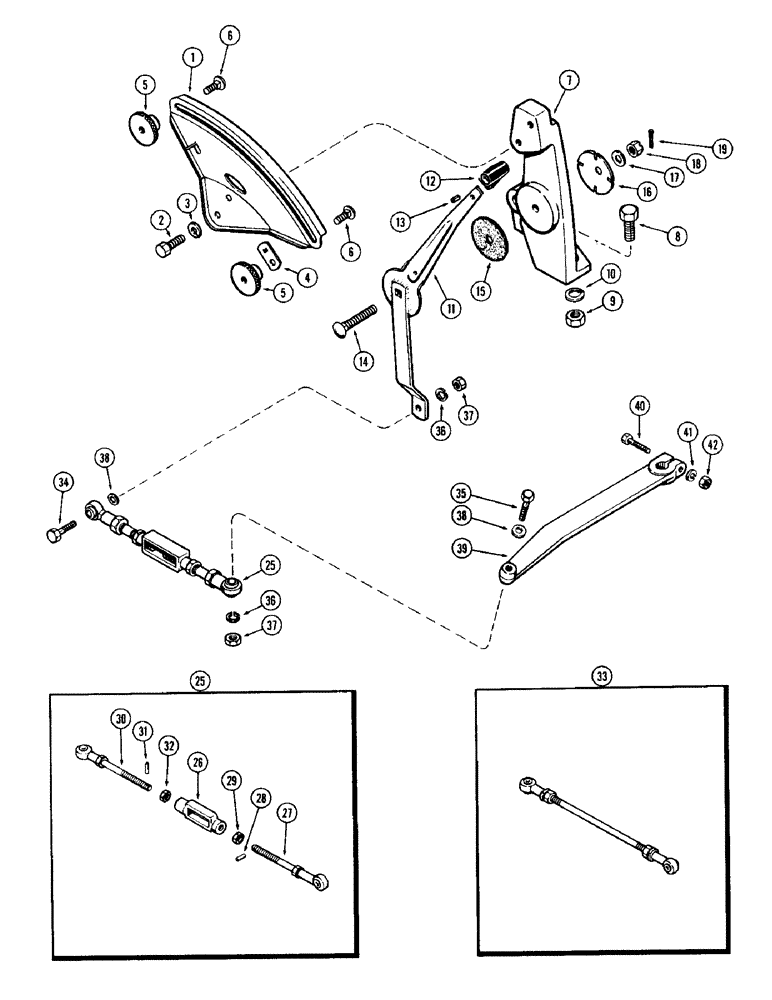

Запчасти Case IH 930-SERIES (128) - DRAFT-O-MATIC CONTROL LINKAGE (06) - POWER TRAIN

1

A35123

QUANDRANT

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Quandrant Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

G15950

STOP

- quandrant

1шт.

5

G15951

NUT

- limit, draft control

2шт.

6

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Lock, limit nut Short NK, 3/8"-16 x 1", G2

2шт.

7

A33212

BRACKET - quandrant

1шт.

8

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

9

25-108

NUT,1/2"-13, G5

- (1/4" N.C. hex.)

2шт.

10

92-8

LOCK WASHER,1/2"

2шт.

11

A32698

LEVER ASSY. - hand, draft control, Includes Ref: 12 and 13

1шт.

12

A36509

KNOB - hand lever

1шт.

13

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

1шт.

14

A33211

BOLT - pivot, hand lever (1/2 x 2-3/4" N.C. spec.)

1шт.

15

G10786

DISC

- friction, hand lever

1шт.

16

G49412

WASHER

- spring

1шт.

17

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32") 1/2", SAE

1шт.

18

425-128

SLOTTED NUT,1/2"-13, G5

NUT - (1/2" N.C. hex., sltd.)

1шт.

19

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

25

A57219

ROD

ASSY. - draft control linkage (1st used trac. ser. no. 8308866), Includes Ref: 26 - 27

1шт.

26

NSS

NOT SOLD SEPARAT

TURNBUCKLE

1шт.

27

A57692

END ASSY. - w/rod (left hand thread)

1шт.

28

138-53

LOCK PIN,1/8" x 1/2", Slotted

PIN - rod end ret. (1/8 x 9/16" roll)

1шт.

29

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

End Jam, 3/8"-24, G5, LH

1шт.

30

A57693

END ASSY. - w/rod (right hand thread), Includes Ref: 31

1шт.

31

138-53

LOCK PIN,1/8" x 1/2", Slotted

PIN - rod end ret. (1/8 x 9/16" roll)

1шт.

32

86585245

SPECIAL NUT,JAM, 5/8" - 18

- lock, end (3/8" N.F. hex. w/R.H. thread)

1шт.

33

A34095

ROD

ASSY. - draft control linkage (Order A57219) (Replaced A23702) (used prior to trac. ser. no. 8308866)

1шт.

34

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Brg. end to lever Hex, 3/8"-16 x 1 1/2", G5

1шт.

35

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Brg. end to arm Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

36

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

37

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

38

A32395

WASHER

SPACER - rod end bearing (25/64 x 9/16 x 1/16")

2шт.

39

A32704

ARM

- draft control to trans. cover

1шт.

40

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Arm Hex, 5/16"-18 x 2", G5

1шт.

41

92-5

LOCK WASHER,5/16"

WASHER - (3/8" lock)

1шт.

42

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.
