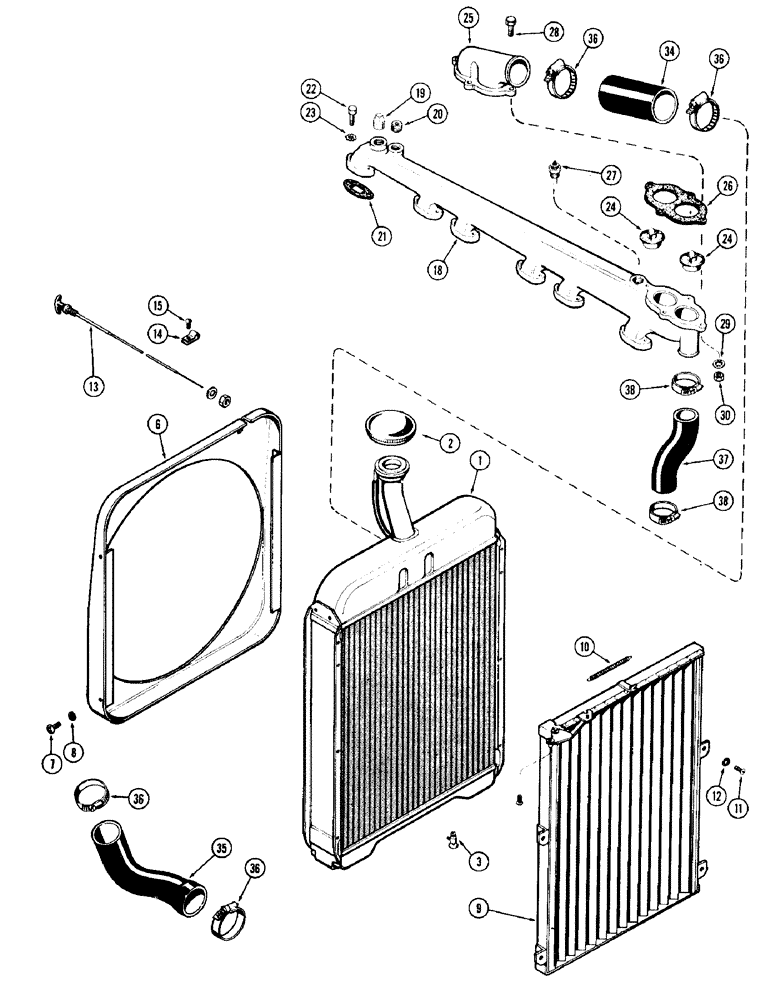

Запчасти Case IH 930-SERIES (004) - RADIATOR AND SHUTTERS (02) - ENGINE

1

A33459

RADIATOR

1шт.

2

A21389

CAP

- radiator (7 lbs. pressure)

1шт.

3

A23655

VALVE

- drain, radiator

1шт.

6

A20925

SHROUD - fan

1шт.

7

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- (1/4 x 1/2" Phillips hd.)

4шт.

8

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

4шт.

9

A21602

SHUTTER ASSY. - radiator, Includes Ref: 10

1шт.

10

A21612

SPRING - shutter

1шт.

11

175-427

SCREW - (1/4 x 1/2" rd. hd.)

4шт.

12

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - (1/4" int./ext. skpf.)

4шт.

13

A9251

CONTROL - shutter

1шт.

14

A27337

CLIP

- control to valve cover

1шт.

15

173-74

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- (#8-32 x 5/16" rd. hd.)

1шт.

18

A60072

MANIFOLD ASSY. - water (Replaces A57755 & A32610), thermostat, Includes Ref:19 and 20

1шт.

19

221-13

PLUG,Sq Hd, 3/8"-18

- (3/8" P.T., sq, hd.), water manifold & thermostat

1шт.

20

221-844

PLUG,Hex Soc, 1/2"-14

- (1/2" P.T., hex. sckt. hd.), water manifold & thermostat

2шт.

21

A27905

GASKET

- water manifold to block, thermostat

6шт.

22

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Water manifold & thermostat Hex, 5/16"-18 x 1 1/8", G5

12шт.

23

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Water manifold & thermostat Ext Tooth, 5/16"

12шт.

24

A57641

THERMOSTAT

- (Replaces G45788), water manifold

2шт.

25

A32611

HOUSING - thermostat, water manifold

1шт.

26

A32612

GASKET

- thermostat housing, water manifold

1шт.

27

A21462

SENDER UNIT

SENDER - water temperature (use w/A24080 gauge) (number type temperature gauge), manifold & thermostat

1шт.

27

A13795

SENDER UNIT

SENDER - water temperature (use w/A57890 gauge) (color band type temperature gauge), manifold & thermostat

1шт.

28

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Water manifold & thermostat Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Water manifold & thermostat Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.), water manifold & thermostat

2шт.

29

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water manifold & thermostat Int Tooth, 3/8"

4шт.

30

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.), water manifold & thermostat

3шт.

34

A15395

RADIATOR HOSE,2.50" ID x 5.25" , SAE 20R2

2.50" ID x 5.25", SAE 20R2, Upper, Water Manifold and Thermostat

1шт.

35

A34079

HOSE ASSY.,2.03" ID, 2.28" ID x 6.10", SAE 20R4 CLASS D-1 OR D-2

RADIATOR HOSE, , Radiator to Water Pump, Water Manifold & Thermostat 2.03" ID, 2.28" ID x 6.10", SAE 20R4 CLASS D-1 OR D-2

1шт.

36

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16" to 3-1/4"), water manifold & thermostat

4шт.

37

A32613

HOSE

- by-pass, water manifold & thermostat

1шт.

38

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

water manifold & thermostat #28, 1.31/2.25 Type F Worm

2шт.
