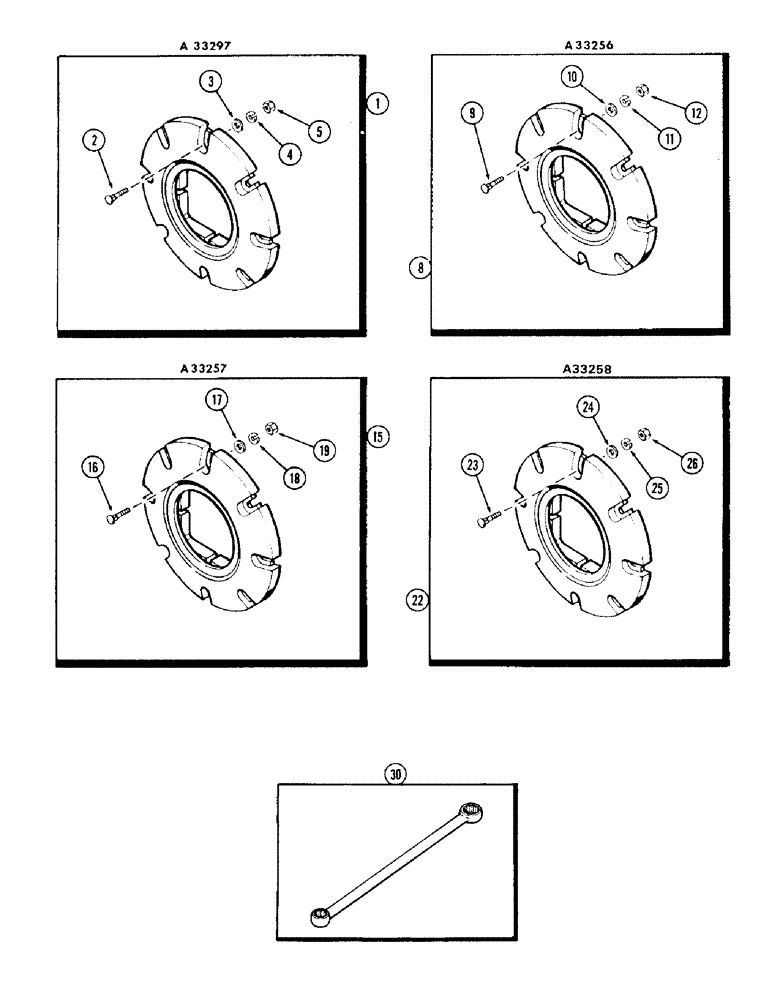

Запчасти Case IH 930-SERIES (126) - REAR WHEEL WEIGHTS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A33297M
WEIGHT SET - (For 30" wheels) (set of 2) (use as 1st & additional weights) (140 lbs. ea.) (Mach Item), Includes Ref: 2 - 5
1шт.
2
11-1056
BOLT - (5/8 x 3-1/2" N.C. carr.) (UAR) Short NK, 5/8"-11 x 3 1/2", G2
8шт.
2
9602207
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5
BOLT - (5/8 x 4-1/2" N.C. carr.) (UAR)
8шт.
2
433-1096
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 6", Gr 5
BOLT - (5/8 x 6" N.C. carr.) (UAR)
8шт.
3
95-10
WASHER,5/8"
- (11/16 x 1-3/4 x 9/64")
8шт.
5
25-1010
NUT,5/8"-11, G5
8шт.
8
A33256M
WEIGHT SET - (For 34" wheels) (set of 2) (140 lbs. ea.) (Mach. Item), Includes Ref: 9 - 12
1шт.
9
11-1056
BOLT - (5/8 x 3-1/2" N.C. carr.) (UAR) Short NK, 5/8"-11 x 3 1/2", G2
8шт.
9
9602207
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4 1/2", Gr 5
BOLT - (5/8 x 4-1/2" N.C. carr.) (UAR)
8шт.
9
11-1088
BOLT (MACHINE)
BOLT - (5/8 x 5-1/2" N.C. carr.) (UAR)
8шт.
10
95-10
WASHER,5/8"
- (11/16 x 1-3/4 x 9/64")
8шт.
12
25-1010
NUT,5/8"-11, G5
8шт.
15
A33257M
WEIGHT SET - (For 26" & 38" wheels) (Set of 2) (140 lbs. ea.) (Mach. Item), Includes Ref: 16 - 19
1шт.
16
411-1064
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2
BOLT - (5/8 x 4" N.C. carr.) (UAR)
8шт.
16
11-1080
BOLT - (5/8 x 5" N.C. carr.) (UAR)
8шт.
16
11-1088
BOLT (MACHINE)
BOLT - (5/8 x 5-1/2" N.C. carr.) (UAR)
8шт.
17
95-10
WASHER,5/8"
- (11/16 x 1-3/4 x 9/64")
8шт.
19
25-1010
NUT,5/8"-11, G5
8шт.
22
A33258M
WEIGHT SET - additional (Set of 2) (For 26", 34" & 38" wheels) (140 lbs. ea.) (Mach. Item), Includes Ref: 23 - 30
1шт.
23
411-1064
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 4", Gr 2
BOLT - (5/8 x 4" N.C. carr.)
8шт.
24
95-10
WASHER,5/8"
- (11/16 x 1-3/4 x 9/64")
8шт.
26
25-1010
NUT,5/8"-11, G5
8шт.
30
A8696
WRENCH - rear wheel hub & rim socket
1шт.
Выбрано товаров: 27
