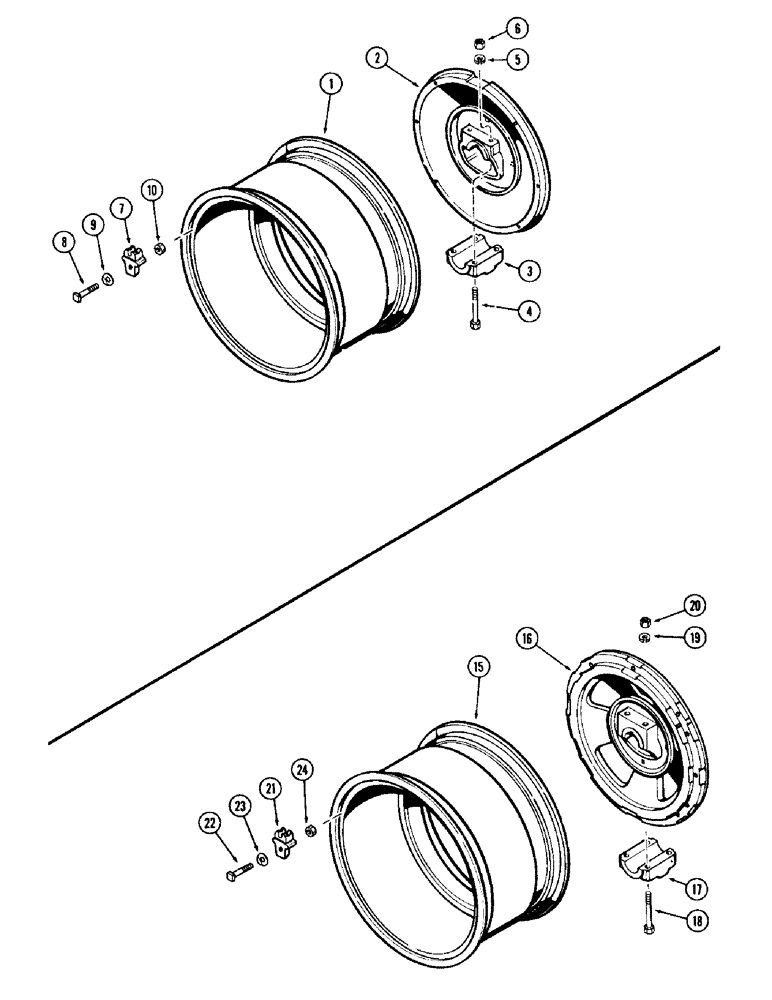

Запчасти Case IH 930-SERIES (124) - REAR WHEELS WITH 38 INCH RIMS, MANUAL ADJUSTABLE, STANDARD HUB (06) - POWER TRAIN

1

A33223

RIM

- (takes 15.5 x 38 tire)

2шт.

2

A33281

WHEEL

ASSY. - standard hub (solid type) (casting no. A33173 or A34654), Includes Ref: 3 - 6

2шт.

3

A57032

CAP

- hub (Replaces A7127)

1шт.

4

A22389

WHEEL BOLT

BOLT - cap to wheel hub (7/8 x 7-1/2" N.F. hex.)

4шт.

5

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

6

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

7

A57654

CLAMP

- rim to wheel (Replaces A33169)

24шт.

8

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- clamp (3/4 x 3-1/2" N.C., sq. hd.)

24шт.

9

A34161

WASHER

- lock, clamp bolt (round design) (use A34799)

1шт.

9

A34799

LOCK WASHER

- lock, clamp bolt (square design)

1шт.

10

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.)

24шт.

15

A33223

RIM

- (takes 15.5 x 38 tire)

2шт.

16

A34804

WHEEL

ASSY. - standard hub (spoke type) (Casting No. A34802), Includes Ref: 17 - 20

2шт.

17

A57032

CAP

- hub (Replace A7127)

1шт.

18

A22389

WHEEL BOLT

BOLT - cap to wheel hub (7/8 x 7-1/2" N.F. hex.)

4шт.

19

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

20

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

21

A57654

CLAMP

- rim to wheel (Replaces A33169)

24шт.

22

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- clamp (3/4 x 3-1/2" N.C., sq. hd.)

24шт.

23

A34161

WASHER

- lock, clamp bolt (round design) (use A34799)

1шт.

23

A34799

LOCK WASHER

- lock, clamp bolt (square design)

1шт.

24

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.)

24шт.
