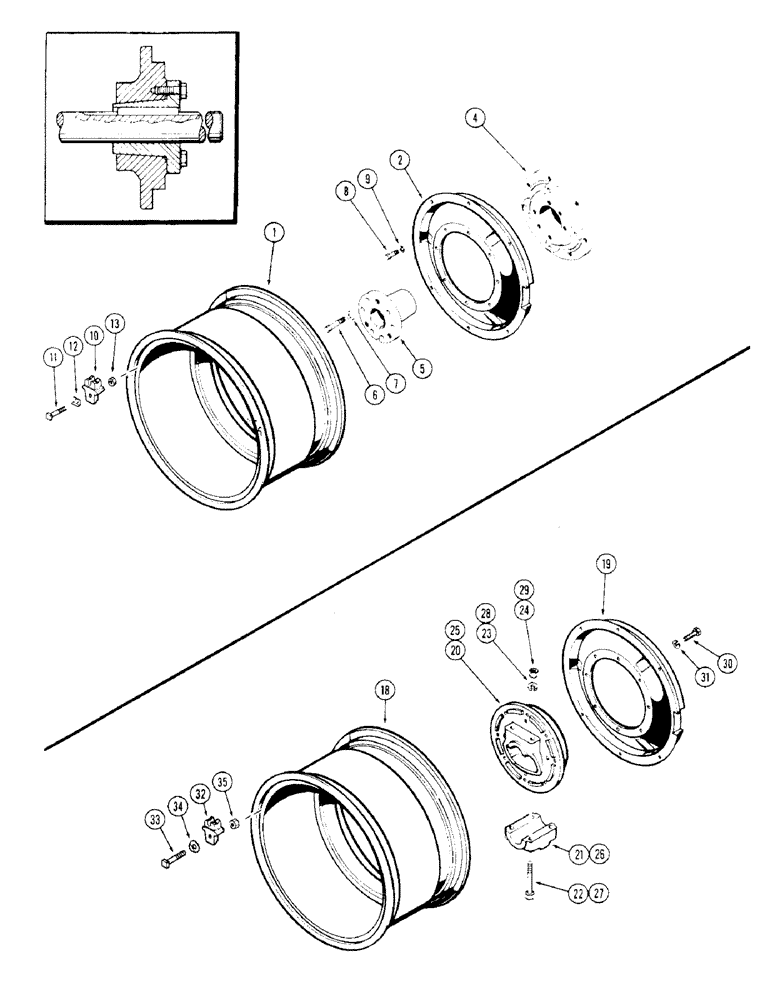

Запчасти Case IH 930-SERIES (122) - REAR WHEELS WITH 38 INCH RIMS, MANUAL ADJUSTABLE, UNIVERSAL HUB (06) - POWER TRAIN

1

A33223

RIM

- (takes 15.5 x 38 tire)

2шт.

2

A33174

WHEEL

- universal hub

2шт.

A59788

HUB ASSY. - universal, tapered (Replaces A57991) (1st used trac. ser. no. 8346718), Includes Ref: 4 - 7

2шт.

4

A59789

HUB

- universal (Replaces A57992)

1шт.

5

A57993

BUSHING

- rear wheel hub

1шт.

6

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub (3/4"-10 x 4-1/2" hex.) (Replaces A57994)

6шт.

7

D31328

WASHER

- (49/64 x 1-5/8 x 1/4")

6шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

A57654

CLAMP

-, Serial Range: rim-wheel

24шт.

11

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- clamp (3/4 x 3-1/2" N.C., sq. hd.)

24шт.

12

A34799

LOCK WASHER

- lock, clamp bolt

24шт.

13

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.)

24шт.

18

A33223

RIM

- (takes 15.5 x 38 tire)

2шт.

19

A33174

WHEEL

- universal hub

2шт.

20

A57030

HUB ASSY. - universal (ductile) (Order A57991) (used trac. ser. no. 8310355 to 9346718), Includes Ref: 21 - 24

2шт.

21

A57032

CAP

CLAMP - hub

1шт.

22

14-14112

BOLT,Hex, 7/8" - 14 x 7", Gr 5

- hub clamp (7/8 x 7" N.F. hex.)

4шт.

23

A57033

WASHER

- (15/16 x 1-1/2 x 1/4")

4шт.

24

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

25

A22668

HUB ASSY. - universal (cast) (Order A57991) (used prior to trac. ser. no. 8310355), Includes Ref: 26 - 29

2шт.

26

A7127

CAP

- hub (Order A57032)

1шт.

27

A22389

WHEEL BOLT

BOLT - cap to hub (7/8 x 7-1/2" N.F. hex.)

4шт.

28

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

29

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

30

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

32

A57654

CLAMP

- rim to wheel (Replaces A33169)

24шт.

33

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- clamp (3/4 x 3-1/2" N.C., sq. hd.)

24шт.

34

A34161

WASHER

- lock, clamp bolt (round design) (used A34799)

1шт.

34

A34799

LOCK WASHER

- lock, clamp bolt (square design)

1шт.

35

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- clamp bolt (3/4" N.C. hex.)

24шт.
