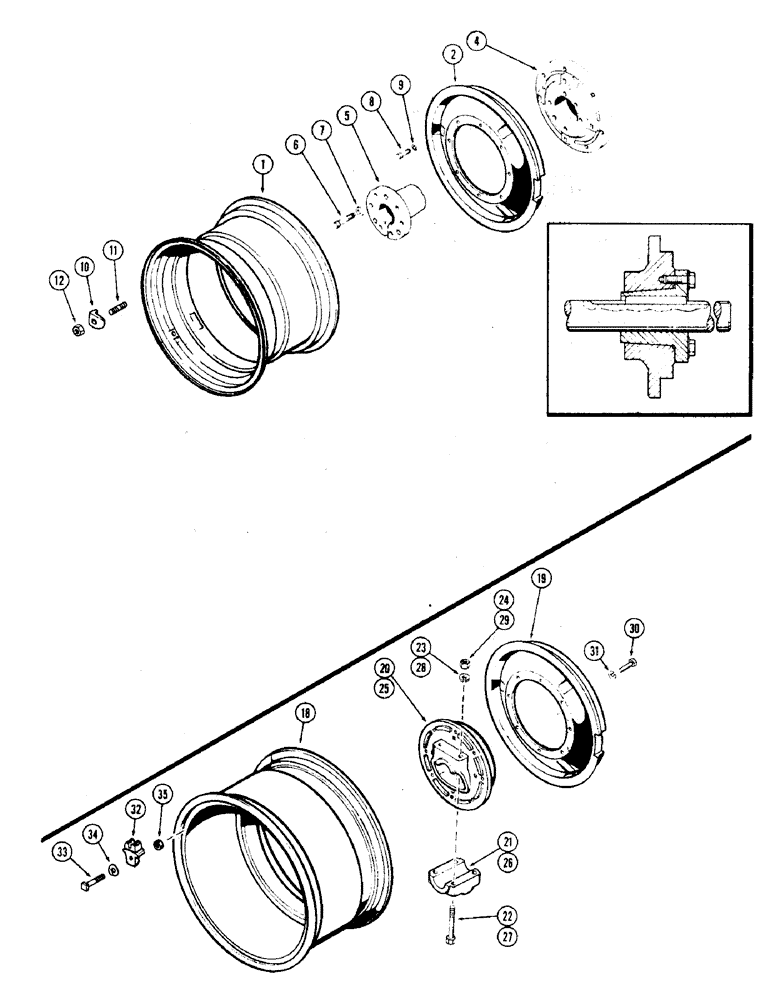

Запчасти Case IH 930-SERIES (120) - REAR WHEELS WITH 34 INCH RIMS, MANUAL ADJUSTABLE, UNIVERSAL HUB (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A33460
RIM
- (takes 23.1 x 34 tire)
2шт.
2
A57686
WHEEL
- universal hub
2шт.
A59788
HUB ASSY. - universal (tapered) (Replaces A5791) (1st used trac. ser. no. 8346718), Includes Ref: 4 - 7
2шт.
4
A57789
HUB - rear (Replaces A57992)
1шт.
5
A57993
BUSHING
- rear wheel hub
1шт.
6
1533578C1
SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5
BOLT - bushing to hub (Replaces A57994)
6шт.
7
D31328
WASHER
- (49/64 x 1-5/8 x 1/4")
6шт.
8
13-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
Wheel to hub Hex, 5/8"-11 x 2 1/2", G5
16шт.
10
F62001
CLAMP
-, Serial Range: rim-wheel
16шт.
11
A27179
STUD
- clamp (5/8" N.C. x 2-3/8")
16шт.
12
A27183
NUT
- clamp stud (5/8" N.C. hex., spec.)
16шт.
18
A57045
RIM
- (takes 23.1 or 18.4 or 16.9 x 34 tire) (Replaces A33168)
2шт.
19
A33172
WHEEL
- universal hub
2шт.
20
A57030
HUB ASSY. - universal (ductile) (Order A57991) (used trac. ser. no. 8310355 to 8346718), Includes Ref: 21 - 24
2шт.
21
A57032
CAP
CLAMP - hub
1шт.
22
14-14112
BOLT,Hex, 7/8" - 14 x 7", Gr 5
- hub clamp (7/8 x 7" N.F. hex.)
4шт.
23
A57033
WASHER
- (15/16 x 1-1/2 x 1/4")
4шт.
24
25-1114
NUT,7/8"-14, G5
- (7/8" N.F. hex.)
4шт.
25
A22668
HUB ASSY. - universal (cast) (Order A57991) (used prior to trac. ser. no. 8310355), Includes Ref: 26 - 29
2шт.
27
A22389
WHEEL BOLT
BOLT - cap to hub (7/8 x 7-1/2" N.F. hex.)
4шт.
28
92-14
LOCK WASHER,7/8"
WASHER, LOCK, 7/8"
4шт.
29
25-1114
NUT,7/8"-14, G5
- (7/8" N.F. hex.)
4шт.
30
13-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
Wheel to hub Hex, 5/8"-11 x 2 1/2", G5
16шт.
32
A57654
CLAMP
- rim to wheel (Replaces A33169)
24шт.
33
117-604
SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5
- clamp (3/4 x 3-1/2" N.C., sq. hd.)
24шт.
34
A34161
WASHER
- lock, clamp bolt (round design)
1шт.
34
A34799
LOCK WASHER
- lock, clamp bolt (square design)
1шт.
35
129-593
NUT,Hvy Hex, 3/4" - 10, Gr 5
- clamp bolt (3/4" N.C. hex.)
24шт.
Выбрано товаров: 31
