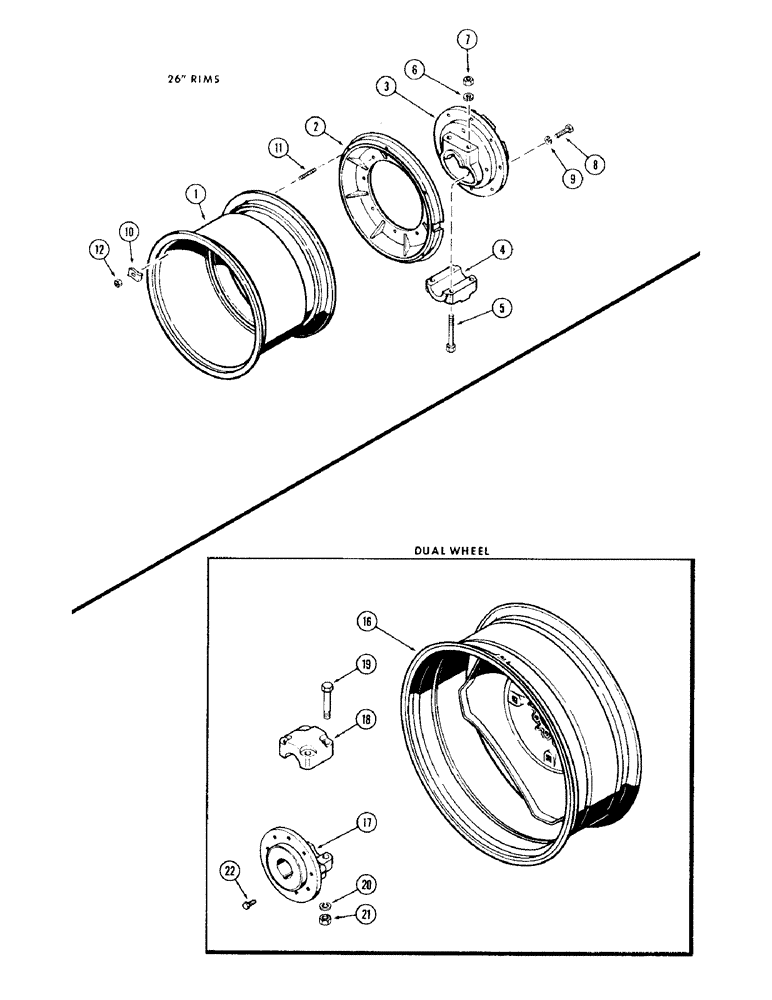

Запчасти Case IH 930-SERIES (116) - REAR WHEELS WITH 26 INCH RIMS, MANUAL ADJUSTABLE (06) - POWER TRAIN

1

A23039

RIM - (takes 23.1 x 26 tire)

1шт.

2

F1254

WHEEL - universal hub

2шт.

3

A22668

HUB ASSY. - universal, Includes Ref: 4 - 7

2шт.

4

A57032

CAP

- hub (Replaced A7127)

1шт.

5

A22389

WHEEL BOLT

BOLT - cap to hub (7/8 x 7-1/2" N.F. hex.)

4шт.

6

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

7

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex.

4шт.

8

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Wheel to hub Hex, 5/8"-11 x 1 3/4", G5, Full Thd

16шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

10

F62001

CLAMP

-, Serial Range: rim-wheel

12шт.

11

A27179

STUD

- clamp (5/8" N.C. x 2-3/8")

12шт.

12

A27183

NUT

- clamp stud (5/8" N.C. hex., spec.)

12шт.

16

A34839

WHEEL

RIM - dual wheel (takes 15.5 x 38 tire)

2шт.

17

A34843

HUB ASSY. - dual wheel, w/ 38" rim, Includes Ref: 18 - 21

2шт.

18

A34837

HUB CAP

CAP - hub, dual wheels w/ 38" rim

1шт.

19

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- hub cap (7/8 x 6" N.F. hex.) (Replaces A24604), dual wheels w/ 38" rim

4шт.

20

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Dual wheels w/ 38" rim 7/8"

4шт.

21

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.), dual wheels w/ 38" rim

4шт.

22

B18264

WHEEL BOLT

BOLT - rim to hub, dual wheels w/ 38"

18шт.
