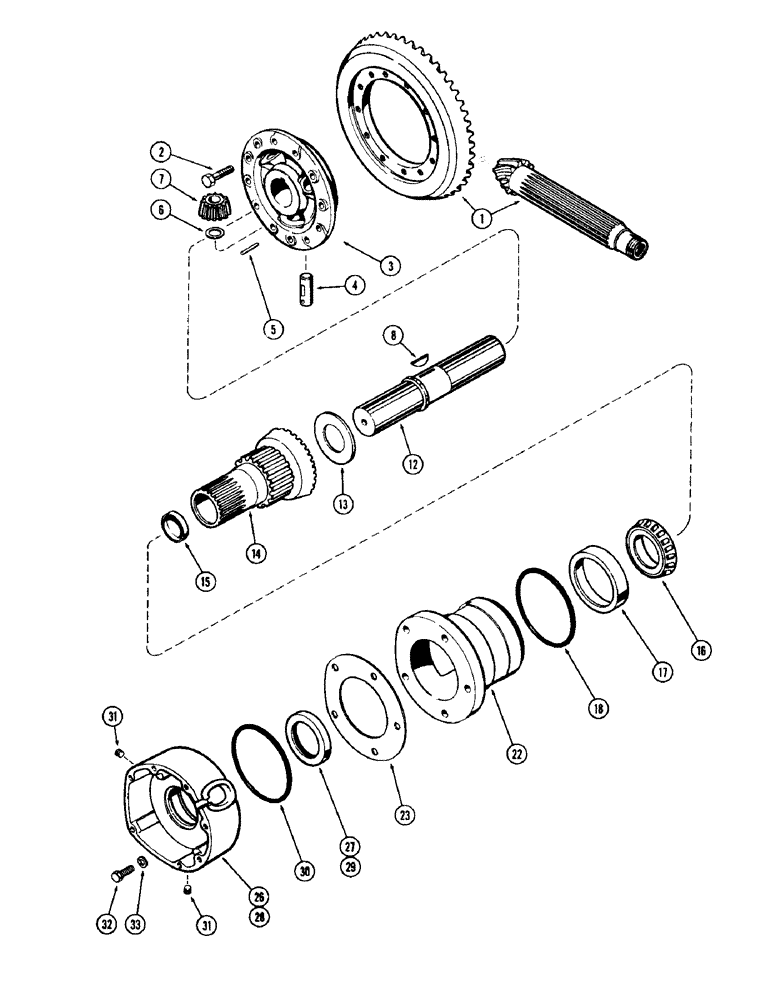

Запчасти Case IH 930-SERIES (115A) - DIFFERENTIAL (06) - POWER TRAIN

1

A33733

GEAR

SET - ring, bevel & countershaft (matched)

1шт.

2

A32769

BOLT

- ring gear

12шт.

3

A33905

WHEEL

- center

1шт.

4

A34174

X

PIN - center wheel pinion

4шт.

5

138-2019

PIN,5/16" x 7/8", Coiled

4шт.

6

A33539

WASHER

- thrust, center wheel pinion

4шт.

7

A32767

PINION

- differential center wheel

4шт.

8

126-51

WOODRUFF KEY,#TX, 3/8" x 2 3/4"

KEY - center wheel (#TX Woodruff)

1шт.

12

A34800

SHAFT

- differential (Replaces A34200)

1шт.

13

A28182

WASHER

- thrust, differential gear (2-1/2 x 3-7/8 x 3/16")

2шт.

14

A34338

GEAR - side, diff. (brg. area 1-5/8" wide) (1st used trac. ser. no. 8286985)

2шт.

14

A32770

GEAR - side, diff. (brg. area 1-35/64" wide) (used prior to trac. ser. no. 8286985), Includes Ref: 15

2шт.

15

41-1042

PLUG,Cup, 2 5/8"

- side gear (Replaces A24555)

1шт.

16

A34340

ROLLER BEARING

CONE - brg., side gear (Timken #749) (1-27/32" wide) (1st used trac. ser. no. 8286985)

2шт.

16

A32772

ROLLER BEARING,85.75 mm ID x 142.164 mm OD x 34.13, 43.07 mm

CONE - brg., side gear (Timken #HM617049) (1-11/16" wide) (used prior to trac. ser. no. 8286985)

2шт.

17

A34343

BEARING CUP

CUP - brg., side gear (Timken #742) (1-7/16" wide) (1st used trac. ser. no. 8286985)

2шт.

17

A32773

ROLLER BEARING,85.75 mm ID x 142.164 mm OD x 43.07 mm

CUP - brg., side gear (Timken #HM617010) (1-11/32" wide) (used prior to trac. ser. no. 8286985)

2шт.

18

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - support sleeve (6-1/4 x 6-1/2 x 1/8")

2шт.

22

A34341

SLEEVE - diff. supt. (incl. bushing) (1-29/32" I.D. at flange end) (1st used trac. ser. no. 8286985)

2шт.

22

A32774

SLEEVE - diff. supt. (incl. bushing) (1-19/32" I.D. at flange end) (used prior to trac. ser. no. 8286985)

2шт.

23

A60490

SHIM,.003" Thk

Differential brg. carrier (Replaces A28188) .003" Thk

1шт.

23

A60491

SHIM,.005" Thk

Differential brg. carrier (Replaces A28189) .005" Thk

1шт.

23

A60492

SHIM,.010" Thk

Brg. carrier (Replaces A28190) .010" Thk

1шт.

26

A57656

COVER ASSY. - brake, inner (For 4-1/4" O.D. oil seal) (1st used trans. ser. no. 2228618), Includes Ref: 27

2шт.

27

A57658

OIL SEAL

- oil (3-1/2 x 4-1/4 x 3/8")

1шт.

28

A34344

COVER - brake, inner (For 4-1/2" O.D. oil seal) (5-11/16" O.D. at "O" ring groove) (used trac. S/N 8286985 to trans. S/N 2228618) (Order A57656)

2шт.

28

A32777

COVER - brake, inner (For 4-1/2" O.D. oil seal) (5-3/8" O.D. at "O" ring groove) (used prior to trac. ser. no. 8286985)

2шт.

29

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

- oil (3-1/4 x 4-1/2 x 15/32") (used w/A34344 & A32777 covers) (used prior to trans. ser. no. 2228618)

2шт.

30

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

"O" RING cover (5-5/8" x 5-7/8" x 1/8" (1st used trac. ser. no. 8286985)

2шт.

30

A18842

O-RING,0.139" Thk x 5.359" ID, -253, Cl 5, 75 Duro

"O" RING - cover (5-3/8 x 5-7/8" x 1/8" (used prior to trac. ser. no. 8286985)

2шт.

31

221-849

PLUG,Hex Soc, 1/8"-27

- cover (1/8" P.T., sckt. hd.)

2шт.

32

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- (1/2" x 2-1/4" N.C. hex.)

4шт.

33

92-8

LOCK WASHER,1/2"

4шт.
