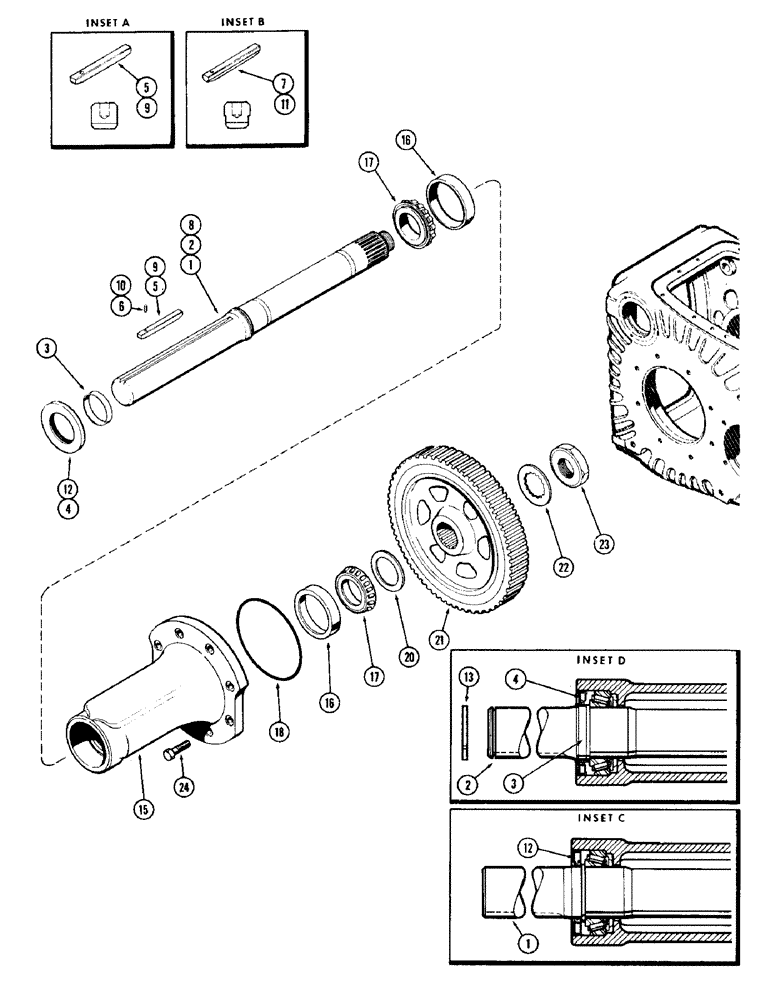

Запчасти Case IH 930-SERIES (114) - REAR AXLE (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

SHAFT ASSY. - rear axle, w/out sleeve (See inset C) (Order A41813)

1шт.

A41813

SET

SHAFT KIT - rear axle, w/sleeve (See inset D) (1st used trac. ser. no. 8329528), Includes Ref: 2 - 6

2шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - rear axle

1шт.

A41814

SEAL

SLEEVE & SEAL KIT - rear axle, Includes Ref: 3 and 4

1шт.

3

A32803

RING

SLEEVE - axle (3-1/2 x 3-5/8 x 5/8" steel)

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, rear axle (3-5/8 x 5-1/4 x 15/32")

1шт.

5

A34890

BUCKET TOOTH KEY

KEY - axle (5/8 x 5/8" sq.) (See inset A) (Use A57460 or A57461 for repairs)

1шт.

6

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key 1/4" x 1/2", Slotted

1шт.

7

A57461

KEY

- axle (To fit shaft w/key-way .629" to .632") (Identify by 3 drill points) (See inset B)

2шт.

7

A57460

KEY

- axle (To fit shaft w/key-way .618" to .621") (Identify by 2 drill points) (See inset B)

2шт.

8

A57034

SHAFT

ASSY. - rear axle (Replaces A32801) (Used prior to trac. ser. no. 8329528) (Order A41813), Includes Ref: 9 and 10

2шт.

9

A57035

KEY

- axle (5/8 x 3/4" sq.) (See inset A) (Use A57422 or A57459 for repairs)

1шт.

10

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Key 1/4" x 1/2", Slotted

1шт.

11

A57422

KEY - axle (To fit shaft w/key-way .629 to .632") (Identify by 3 drill points) (See inset B)

2шт.

11

A57459

KEY

- axle (To fit shaft w/key-way .618" to .621") (Identify by 2 drill points) (See inset B)

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - oil, rear axle (3-1/2 x 5-1/4 x 15/32") (See inset C) (Order A41814 kit)

2шт.

13

A7123

RING - snap, rear axle shaft (not used all axles) (check axle shaft for snap ring groove)

2шт.

15

A60021

HOUSING - rear axle (replaces A32799)

2шт.

16

A15434

CUP

- bearing, rear axle

4шт.

17

A27024

ROLLER BEARING,3.25" ID x 1.3125"

CONE - bearing, rear axle

4шт.

18

A33050

OIL SEAL

- axle housing to trans. case (9 x 9-1/4 x 1/8")

2шт.

20

A32804

WASHER

- spacer, final drive gear

2шт.

21

A32805

GEAR

- final drive

2шт.

22

A32806

LOCK WASHER

- lock, final drive gear

2шт.

23

A23386

NUT

- lock, final drive gear

2шт.

24

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

- (5/8 x 2" N.C. hex.)

16шт.
