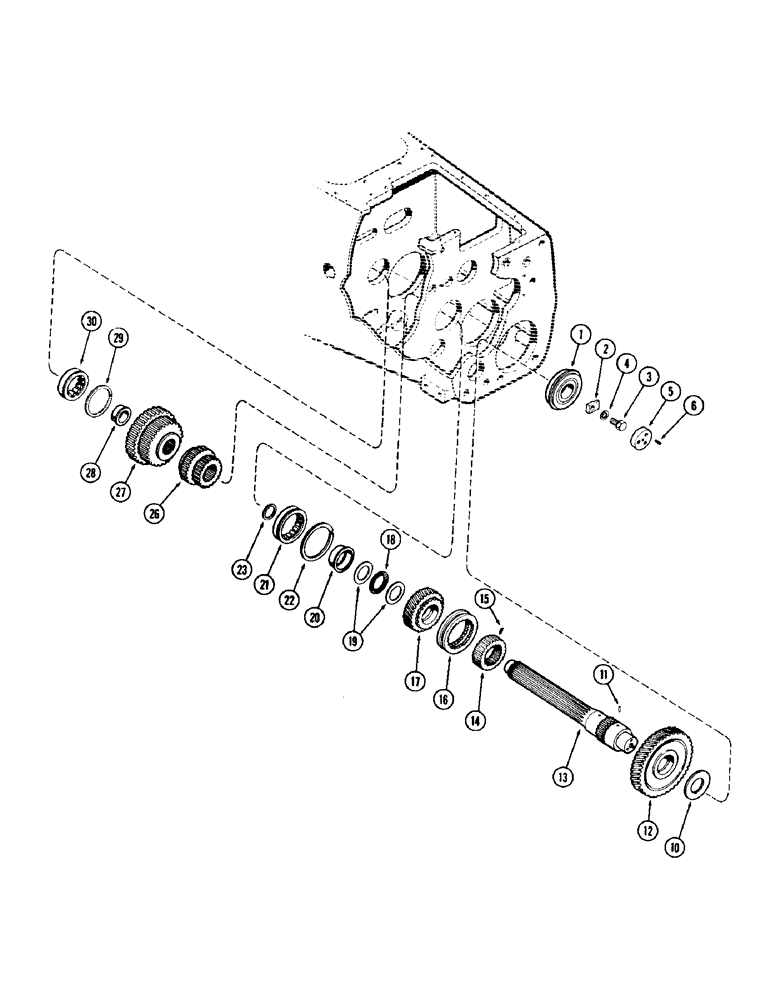

Запчасти Case IH 930-SERIES (107A) - SLIDING GEAR SHAFT (06) - POWER TRAIN

1

A32018

BALL BEARING,44.99mm ID x 100mm OD x 25mm W

BEARING - ball, front

1шт.

2

A32788

CLAMP

- front brg., sliding gear shaft

2шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- clamp (1/2 x 1-1/8" N.C. hex.)

2шт.

4

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

5

A32019

PLATE

- lock, front brg.

1шт.

6

165-118

HEX SOC SCREW,Prev Torque, 5/16" - 18 x 3/4"

BOLT - plate (5/16 x 3/4" N.C. sckt. hd.)

3шт.

10

A60040

WASHER

- thrust, low range gear (replaces A32017)

1шт.

12

A34347

GEAR

- driven, low range (replaces A32022)

1шт.

13

A34905

SHAFT

- sliding gear (replaces A32781) (set screw hole removed at trans. ser. no. 2215833)

1шт.

14

A32024

COLLAR

- range clutch (20 ext. & int. teeth) (set screw hole removed at trans. ser. no. 2215833)

1шт.

PART HAS (20 EXT.& 27 INT. TEETH)

1шт.

15

A32026

SET SCREW,Hex Skt, 5/16" - 18 x 5/8"

SCREW - collar ret. (5/16" N.C sckt. hd., cone pt.) (used prior to trans. ser. no. 2215833)

1шт.

16

A32025

SLEEVE

- range clutch (20 int. teeth)

1шт.

17

A57341

GEAR

- driven, high range (replaces A32783)

1шт.

18

A32785

THRUST BEARING,2.125" ID x 2.875" OD x 0.0781"

BEARING - thrust, sliding gear shaft

1шт.

19

A32784

WASHER

RACE - thrust brg., sliding gear shaft

2шт.

20

A34772

BEARING, CONE,32T

RACE - inner, sliding gear shaft (replaces A32800)

1шт.

21

A32004

BEARING ASSY,55mm ID x 100mm OD x 21mm W

BEARING - roller, sliding gear shaft center

1шт.

22

A32005

RING

- snap, center brg., sliding gear shaft

1шт.

23

A33575

SNAP RING,#206, 1.936", Ext

RING - snap, collar, sliding gear shaft

1шт.

26

A33564

GEAR

- sliding, 1st, 2nd, 5th and 6th speed

1шт.

27

A33563

GEAR

- sliding, 3rd, 4th, 7th and 8th speed

1шт.

28

A33043

ROLLER BEARING,34.99mm ID x 20.87mm W

RACE - inner, rear brg.

1шт.

29

A33041

RING, SNAP

RING - snap, rear brg., sliding gear shaft

1шт.

30

A33042

BEARING ASSY

BEARING - roller, sliding gear shaft rear

1шт.
