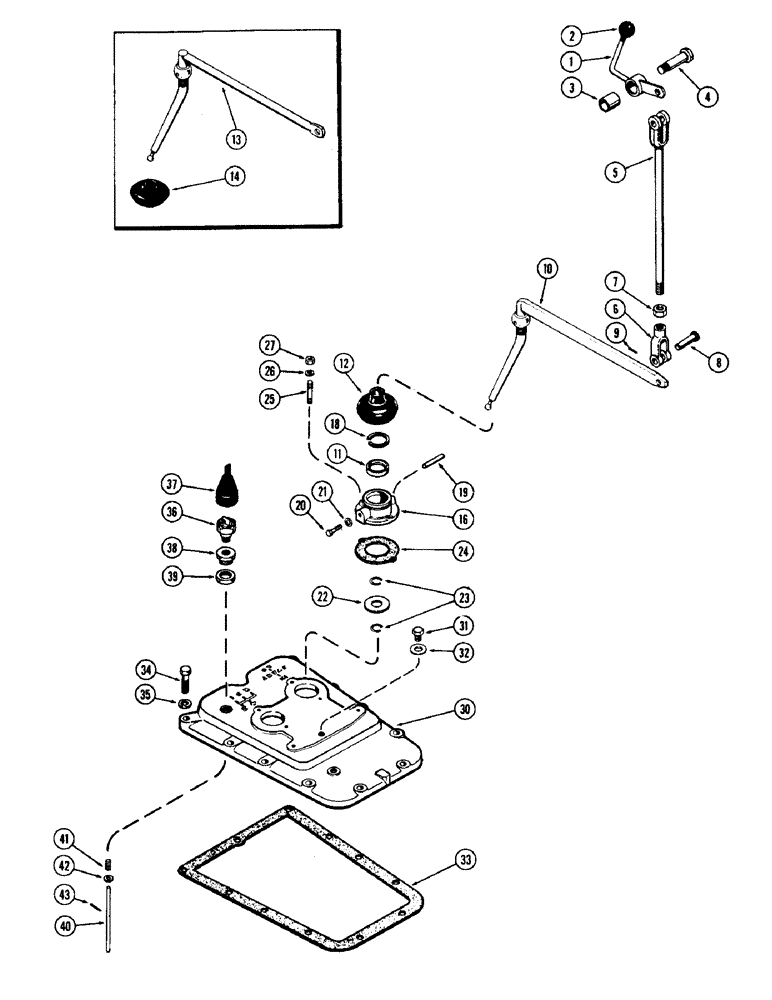

Запчасти Case IH 930-SERIES (101C) - RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A33130

LEVER - range shift, upper

1шт.

2

A32845

KNOB - range shift lever

1шт.

3

A32869

BEARING

- shift lever (7/8 x 1-1/16 x 1")

1шт.

4

A32849

STEP BOLT

BOLT - pivot, range shift

1шт.

5

A32671

ROD - range shift linkage

1шт.

6

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - range shift rod

1шт.

7

25-118

NUT,1/2"-20, G5

- yoke stop (1/2" N.F. hex.)

1шт.

8

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis (1/2 x 1-23/64")

2шт.

9

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

10

A60098

LEVER

ASSY. - range shift, lower (Must be used w/A57876 cap) (Replaces A57873), Includes Ref: 11

1шт.

11

A7923

SEAT

- gear shift lever, upper

1шт.

12

A57876

COVER

CAP - dust (rubber) (23/32" shaft opening) (1st used trans. ser. no. 2229229) (Must be used w/A60098 lever assy.)

1шт.

13

A34013

LEVER

- range shift, lower (Order 1-A60098 & 1-A57876)

1шт.

14

A26956

DUST CAP

CAP - dust (rubber) (5/8" shaft opening) (Order A57876) (Used prior to trans. ser. no. 2229229)

1шт.

16

A7596

SOCKET

- gear shift lever, lower

1шт.

18

A26836

RING, SNAP

RING - snap, upper seat retaining

1шт.

19

A23069

AXLE PIN

PIN - pivot, range shift lever

1шт.

20

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - pivot pin stop (3/8 x 1/2" N.C. hex.)

2шт.

21

A22317

WASHER

- (25/64 x 9/16 x 3/64" copper)

2шт.

22

A34035

WASHER

- range shaft lever

1шт.

23

A33531

SNAP RING,#75, Ext

Ring, Snap, , range shaft lever #75, Ext

2шт.

24

A7598

GASKET

- lower socket

1шт.

25

A7597

STUD - socket (3/8" N.C./N.F. x 1-5/16")

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

30

A34761

COVER - gear shift (Order A32816, 13-810 & 195-1024)

1шт.

31

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- cover (1/2 x 3/4" N.C. hex.)

1шт.

32

D35288

WASHER

- (33/64 x 7/8 x 16 Ga. copper)

1шт.

33

A7594

GASKET

- gear shift cover

1шт.

34

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover Hex, 1/2"-13 x 1 1/2", G5, Full Thd

7шт.

35

92-8

LOCK WASHER,1/2"

7шт.

36

A20990

SWITCH

- safety, neutral start

1шт.

37

A20991

BOOT

COVER - safety switch

1шт.

38

A20988

NUT - switch adapter

1шт.

39

A20989

LOCK NUT

NUT - lock, switch adapter

1шт.

40

A22713

ROD - safety switch contact

1шт.

41

A22712

SPRING

- safety rod return

1шт.

42

195-18

WASHER,1/4"

- (9/32 x 5/8 x 1/16")

1шт.

43

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.
