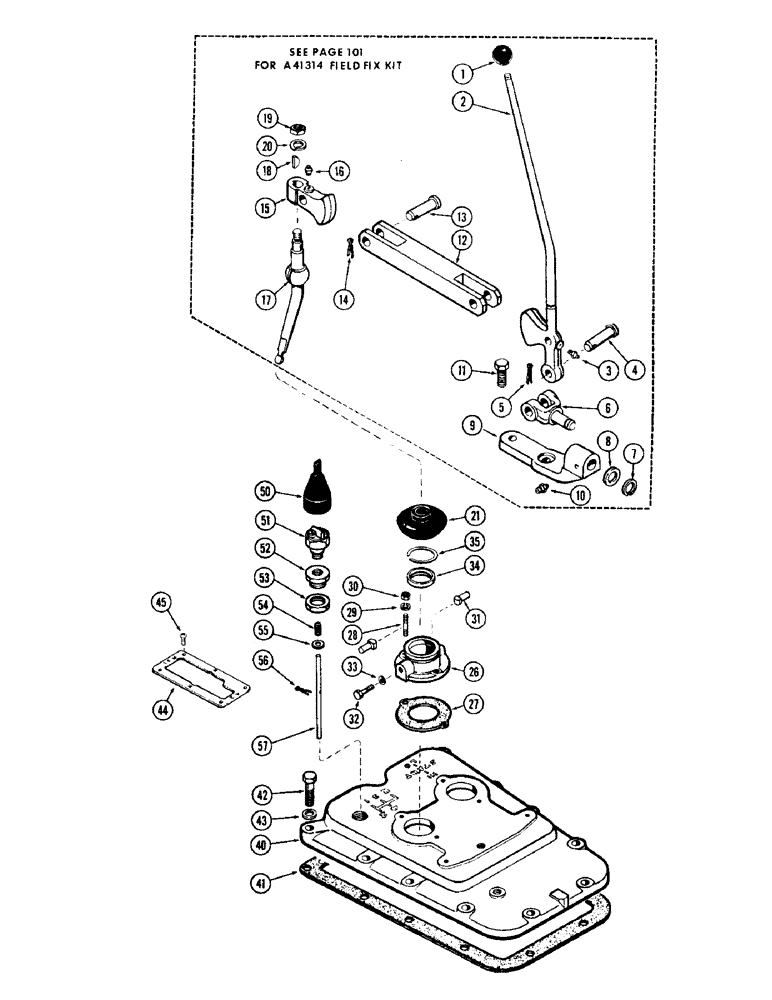

Запчасти Case IH 930-SERIES (101A) - GEAR SHIFT LINKAGE, USED PRIOR TO TRACTOR SERIAL NUMBER 8297728 (06) - POWER TRAIN

1

A23885

KNOB

- gear shift lever

1шт.

2

A33134

LEVER - upper, gear shift

1шт.

3

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease (1/4" drive, 67-1/2 deg.)

1шт.

4

A8380

PIN - pivot, upper lever

1шт.

5

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

6

A32740

YOKE - transfer link to upper lever

1шт.

7

A32742

RING - snap, yoke retaining #75, .703", Ext

1шт.

8

A32741

WASHER - yoke retaining

1шт.

9

A32719

BRACKET - yoke, stop lever yoke

1шт.

10

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease (1/4" str. drive)

1шт.

11

113-403

BOLT

- (1/2 x 1" N.C. hex.)

1шт.

12

A32746

BAR - transfer, upper to lower lever

1шт.

13

A32747

PIN - transfer bar

2шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

15

A32738

PLATE - shaft lever yoke

1шт.

16

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease (1/4" str. drive)

1шт.

17

A8374

LEVER - lower, gear shift

1шт.

18

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

Lever #91, 1/4" x 3/4", HT

1шт.

19

25-1110

NUT,5/8"-18, G5

- (5/8" N.F. hex.)

1шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

A57876

COVER

CAP - dust cover, lever (Replaces A26956)

1шт.

26

A7596

SOCKET

- shift lever

1шт.

27

A7598

GASKET

- lever socket

1шт.

28

A7597

STUD - gear shift lever socket (3/8" N.C./N.F. x 1-5/16")

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

95-116

NUT - (3/8" N.F. hex.)

2шт.

31

A26835

PIN

- gear shift lever

2шт.

32

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - socket pin (3/8 x 1/2" N.C. hex.)

1шт.

33

A22317

WASHER

- socket pin

1шт.

34

A7923

SEAT

RING - seat, gear shift lever

1шт.

35

A26836

RING, SNAP

RING - snap, ring seat ret.

1шт.

40

A32816

COVER - gear shift

1шт.

41

A7594

GASKET

- cover

1шт.

42

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

42

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

1шт.

43

92-8

LOCK WASHER,1/2"

7шт.

44

A32748

PLATE - shift indicator

1шт.

45

187-1145

SCREW - 1/4 x 3/8" flat hd.)

4шт.

50

A20991

BOOT

- safety switch

1шт.

51

A20990

SWITCH

- safety, neutral start

1шт.

52

A20988

NUT - switch adjusting

1шт.

53

A20989

LOCK NUT

NUT - lock, switch adjusting

1шт.

54

A22712

SPRING

- safety switch rod

1шт.

55

195-18

WASHER,1/4"

- (9/32 x 5/8 x 1/16")

1шт.

56

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

57

A22713

ROD - safety switch

1шт.
