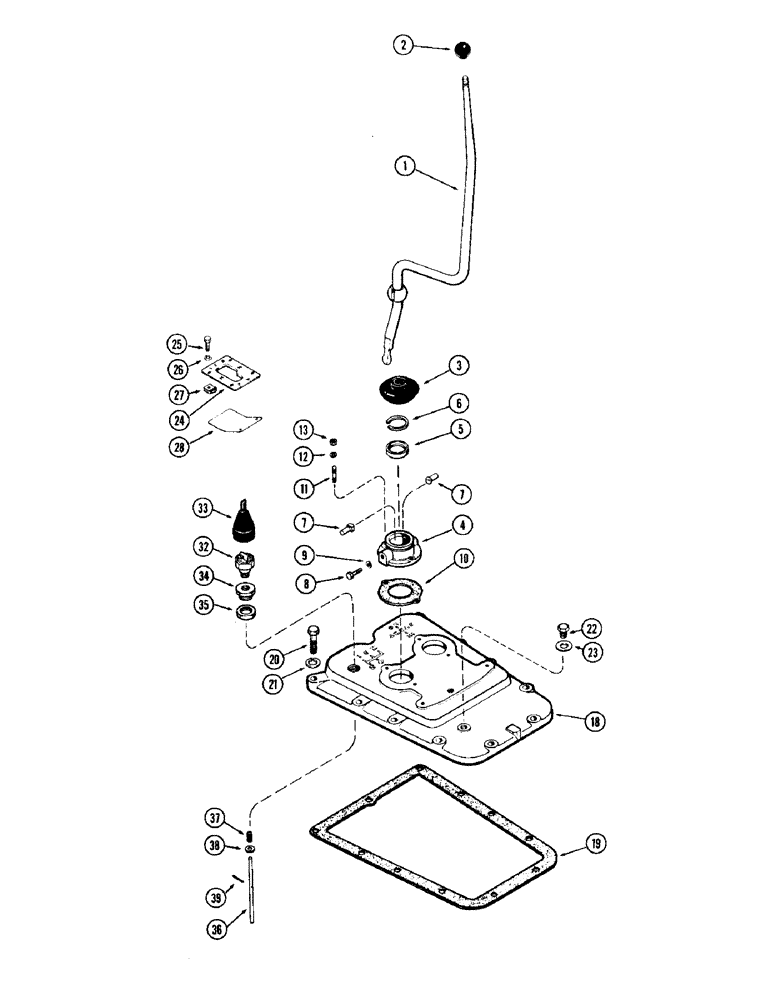

Запчасти Case IH 930-SERIES (100) - GEAR SHIFT LINKAGE, FIRST USED TRACTOR SERIAL NUMBER 8297728 (06) - POWER TRAIN

1

A34754

LEVER

- gear shift

1шт.

Part of P/N A41314 Gear Shift Kit

1шт.

2

A23885

KNOB

- gear shift lever

1шт.

3

A57876

COVER

CAP - dust, rubber (replaces A26956)

1шт.

4

A7596

SOCKET

- gear shift lever seat, lower

1шт.

5

A7923

SEAT

- gear shift lever, upper

1шт.

6

A26836

RING, SNAP

RING - snap, upper seat retaining

1шт.

Part of P/N A41314 Gear Shift Kit

1шт.

7

A26835

PIN

- pivot, gear shift lever

2шт.

8

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - pivot pin (3/8 x 1/2" N.C. hex.)

1шт.

9

A22317

WASHER

- gear shift lever socket pin

1шт.

10

A7598

GASKET

- lower socket

1шт.

Part of P/N A41314 Gear Shift Kit

1шт.

11

A7597

STUD - socket (3/8" N.C./N.F. x 1-5/16")

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- (3/8" N.F. hex.)

2шт.

18

A34761

COVER - gear shift (Order A32816, 13-810 & 195-1024)

1шт.

19

A7594

GASKET

- gear shift cover

1шт.

20

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover Hex, 1/2"-13 x 1 1/2", G5, Full Thd

7шт.

Part of P/N A41314 Gear Shift Kit

1шт.

21

92-8

LOCK WASHER,1/2"

7шт.

22

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- cover (1/2 x 3/4" N.C. hex.)

1шт.

Part of P/N A41314 Gear Shift Kit

1шт.

23

D35288

WASHER

- (33/64 x 7/8" x 16 Ga. copper)

1шт.

Part of P/N A41314 Gear Shift Kit

1шт.

24

A34755

INDICATOR - gear shift

1шт.

Part of P/N A41314 Gear Shift Kit

1шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Indicator

4шт.

Part of P/N A41314 Gear Shift Kit

1шт.

26

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

Part of P/N A41314 Gear Shift Kit

1шт.

27

131-602

NUT - (5/16" Tinnerman)

4шт.

Part of P/N A41314 Gear Shift Kit

1шт.

28

A41315

COVER - gear shift

1шт.

Part of P/N A41314 Gear Shift Kit

1шт.

32

A20990

SWITCH

- safety, neutral start

1шт.

33

A20991

BOOT

COVER - safety switch

1шт.

34

A20988

NUT - switch adapter

1шт.

35

A20989

LOCK NUT

NUT - lock, switch adapter

1шт.

36

A22713

ROD - safety switch contact

1шт.

37

A22712

SPRING

- safety rod return

1шт.

38

195-18

WASHER,1/4"

- (9/32 x 5/8 x 1/16")

1шт.

39

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

A41314

KIT gear shift, Includes: Ref. 1, 6, 10, 20 and 22 - 28

1шт.
