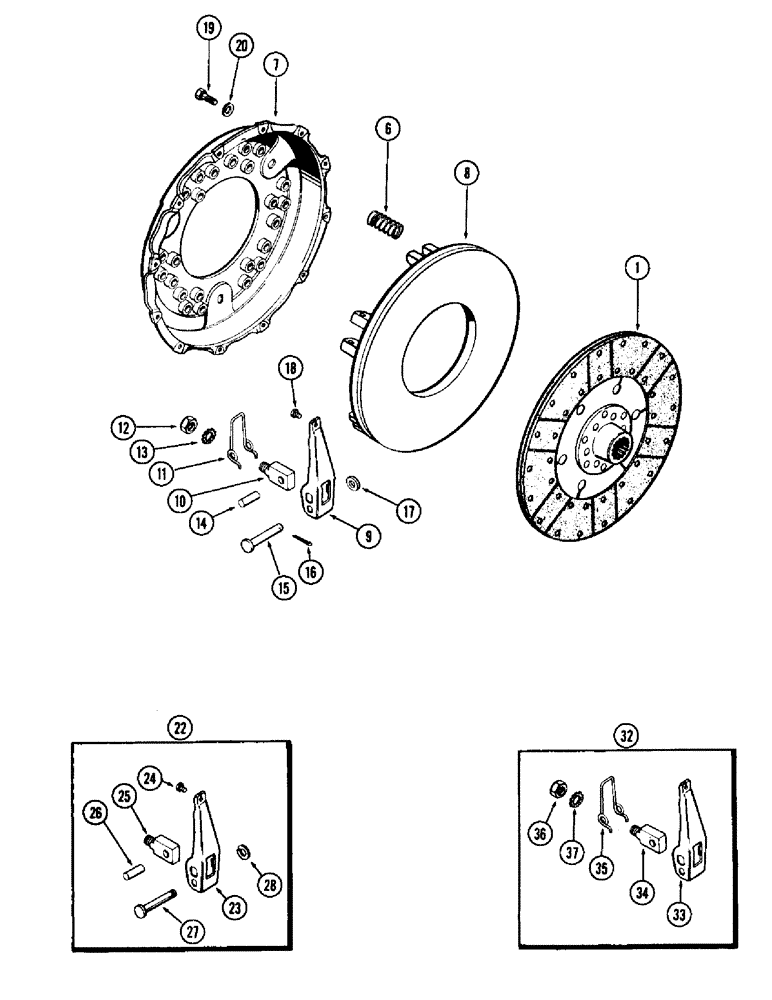

Запчасти Case IH 930-SERIES (099A) - CLUTCH (06) - POWER TRAIN

1

A32817

PLATE ASSY.

PLATE - clutch, driving (w/facings)

1шт.

A32818

COVER

CLUTCH ASSY., Includes Ref: 6 - 18

1шт.

6

A25114

SPRING

- pressure

18шт.

It is suggested a complete set of springs be installed when repairing clutch

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - back

1шт.

8

A25113

PLATE

- pressure

1шт.

9

NSS

NOT SOLD SEPARAT

LEVER - (Order Refs 22 or 32)

3шт.

10

A25119

BLOCK

- pivot lever

3шт.

11

A25120

SPRING

- torsion (anti-rattle)

3шт.

12

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - (5/8" N.F. jam)

3шт.

13

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

3шт.

14

A25118

AXLE PIN

PIN - roller

3шт.

15

A27288

AXLE PIN

PIN - lever pivot (drilled for cotter pin)

3шт.

16

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

3шт.

17

A25121

WASHER

- clevis pin

3шт.

18

A25117

ADJUSTMENT SCREW,3/8" - 24 x 17/32"

SCREW - lever adjusting

3шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

20

92-6

LOCK WASHER,3/8"

12шт.

22

A40809

KIT

LEVER KIT - clutch release, Includes Ref: 23 - 28

1шт.

23

NSS

NOT SOLD SEPARAT

LEVER - clutch release (Order A40809)

3шт.

24

A25117

ADJUSTMENT SCREW,3/8" - 24 x 17/32"

SCREW - lever adjusting

3шт.

25

A25119

BLOCK

- lever pivot

3шт.

26

A25118

AXLE PIN

PIN - lever pivot block

3шт.

27

A40811

PIN - clevis, torsion spring (mach. for snap ring)

3шт.

28

A40810

RING, SNAP

RING - snap, pin ret.

3шт.

32

A40029

X

LEVER KIT - clutch release (Order A40809), Includes Ref: 33 - 37

1шт.

33

NSS

NOT SOLD SEPARAT

LEVER - clutch release (Order A40809)

3шт.

34

A25119

BLOCK

- pivot lever

3шт.

35

A25120

SPRING

- torsion (anti-rattle)

3шт.

36

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - (5/8" N.F. hex., jam)

3шт.

37

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

3шт.
