Запчасти Case IH 930-SERIES (098) - CLUTCH HOUSING, FIRST USED TRACTOR SERIAL NUMBER 8354201 (06) - POWER TRAIN

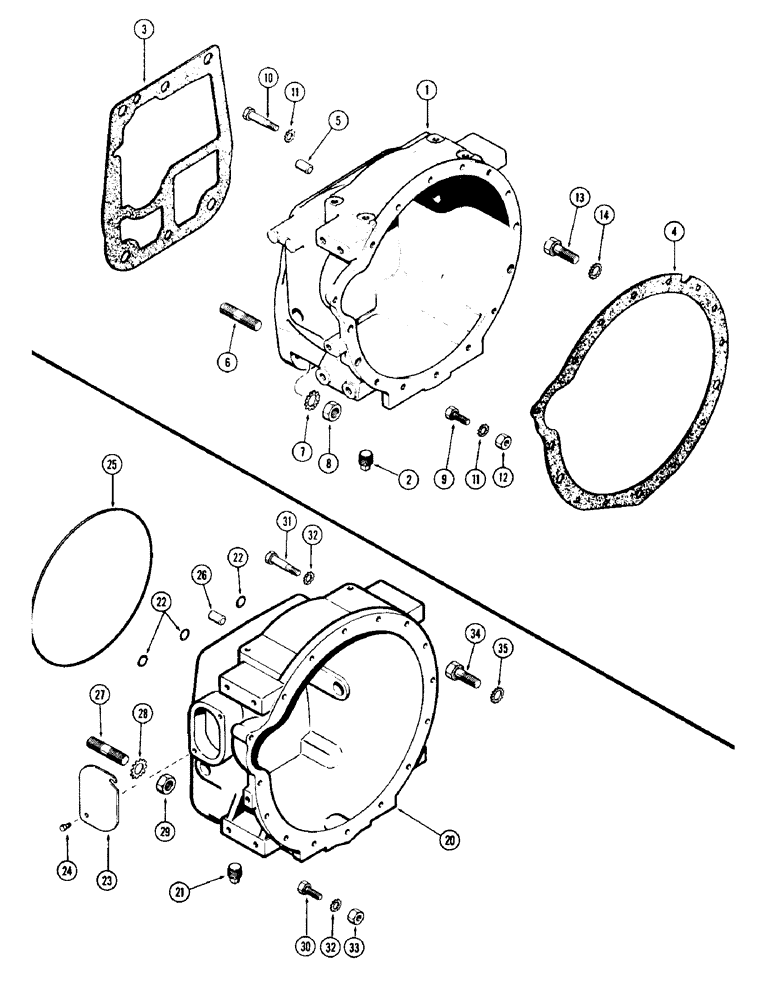

Схема запчастей Case IH 930-SERIES - (098) - CLUTCH HOUSING, FIRST USED TRACTOR SERIAL NUMBER 8354201 (06) - POWER TRAIN
11
11
23
31
2
22
4
27
26
24
22
28
10
6
20
7
9
1
13
29
35
8
25
5
34
32
3
12
33
30
14
32
21

Артикул

Название

Примечание

Количество

1

A57989

HOUSING - clutch

1шт.

2

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - housing (1/4" P.T., sq. hd.)

1шт.

3

A58973

GASKET

- clutch hsg. to trans. case

1шт.

4

A58139

GASKET

- clutch, Serial Range: hsg.-engine

1шт.

5

A28269

PIN

- locating, clutch hsg. (3/4 x 1-1/4")

2шт.

6

A7073

STUD

- (to trans. case) (7/8" N.F. x 4")

4шт.

7

A57961

LOCK WASHER

- (7/8" ext. skpf.)

4шт.

8

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

9

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(to engine) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

5шт.

9

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (to engine) (1/2 x 1-3/4" N.C. hex.)

1шт.

10

A61041

STEP BOLT

BOLT - dowel (1/2 x 2-7/16") (Gr. 5S) (Replaces A32608)

1шт.

10

A61040

STEP BOLT

BOLT - dowel (1/2 x 3") (Gr. 5S) (Replaces A32607)

1шт.

11

A34650

LOCK WASHER

- (1/2" ext, skpf.)

8шт.

12

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

3шт.

13

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

(to engine) Hex, 3/4"-10 x 2 1/4", G5

2шт.

14

A34651

LOCK WASHER

- (3/4" ext. skpf.)

2шт.

20

A34808

X

HOUSING - clutch (Replaces A32055) (Order A57989, A58982, A58139 & A58973)

1шт.

21

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - (1/4" P.T., ext. sq. hd.)

1шт.

22

A7075

GASKET

"O" RING - oil ports (7/8 x 1-1/8 x 1/8")

3шт.

23

A7082

COVER

- hand hole

1шт.

24

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - cover (3/8 x 1/2" N.C. hex.)

2шт.

25

A32047

GASKET

- clutch hsg. to trans. case (13-3/4 x 14-1/8 x 3/16" Rubber)

1шт.

26

A28269

PIN

- clutch housing locating (3/4 x 1-1/4")

2шт.

27

A7073

STUD

- (to trans. case) (7/8" N.F. x 4")

4шт.

28

A57961

LOCK WASHER

- (7/8" ext. skpf.)

4шт.

29

25-1114

NUT,7/8"-14, G5

- (7/8" N.F. hex.)

4шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(to engine) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

5шт.

30

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (to engine) (1/2 x 1-3/4" N.C. hex.)

1шт.

31

A61041

STEP BOLT

BOLT - dowel (1/2 x 2-7/16") (Gr. 5S) (Replaces A32608)

1шт.

31

A61040

STEP BOLT

BOLT - dowel (1/2 x 3") (Gr. 5S) (Replaces A32607)

1шт.

32

A34650

LOCK WASHER

- (1/2" ext. skpf.)

8шт.

33

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

3шт.

34

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

(to engine) Hex, 3/4"-10 x 2 1/4", G5

2шт.

35

A34651

LOCK WASHER

- (3/4" ext. skpf.)

2шт.

Выбрано товаров: 34
