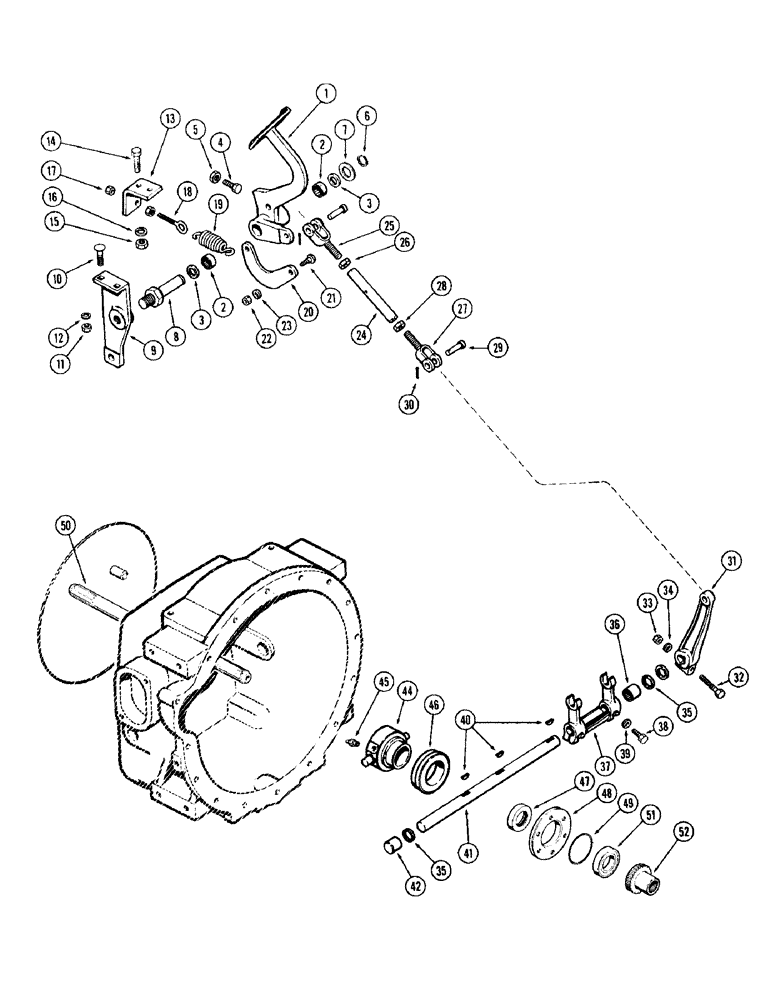

Запчасти Case IH 930-SERIES (097A) - CLUTCH CONTROLS, USED PRIOR TO TRACTOR SERIAL NUMBER 8282440 (06) - POWER TRAIN

1

A33300

PEDAL

ASSY. - foot, clutch, Includes Ref: 2 and 3

1шт.

2

F62197

BEARING

- needle, clutch pedal

2шт.

3

A28211

OIL SEAL

- oil, clutch pedal (1 x 1-1/4 x 1/8")

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- adjusting (3/8 x 1-1/2" N.C. hex.)

1шт.

5

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. hex., jam)

1шт.

6

B18208

SNAP RING,#100, Ext

pedal stud #100, Ext

1шт.

7

195-53

WASHER,1" x 2" x .134"

- (1-1/16 x 2 x 9/64")

1шт.

8

A24187

STUD - clutch pedal pivot

1шт.

9

A32680

SUPPORT - clutch pedal

1шт.

10

12-616

BOLT

- support (3/8 x 1" N.C. carr.)

2шт.

11

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

A33882

BRACKET - spring anchor

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

15

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-115

NUT,5/16"-24, G5

- eye bolt (5/16" NF hex)

2шт.

18

A24192

BOLT - eye, spring

1шт.

19

A27993

SPRING

- brake pedal return

1шт.

20

A24190

LINK - pedal spring

1шт.

21

A27277

STEP BOLT

BOLT - link, pedal spring

1шт.

22

25-156

JAM NUT,Jam, 3/8"-24, G5

- link bolt (3/8" N.F. hex., jam)

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

A33126

ROD

- clutch, Serial Range: pedal-throwout

1шт.

25

A24495

CLEVIS

YOKE - clutch rod (left hand thread)

1шт.

26

129-367

NUT,Jam, 5/8"-18, G5, LH

- yoke (3/8" N.F. hex., jam) (left hand thread)

1шт.

27

A23819

YOKE - clutch rod (right hand thread)

1шт.

28

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - yoke (5/8" N.F. hex., jam) (right hand thread)

1шт.

29

141-7

CLEVIS PIN,5/8" x 1.610"

PIN - yoke

2шт.

30

132-50

COTTER PIN,1/8" x 1 1/4"

SHAFT - clutch & P.T.O.

2шт.

31

A32682

LEVER

- throwout shaft

1шт.

32

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- (1/2 x 2-1/2" N.F. hex.)

1шт.

33

25-118

NUT,1/2"-20, G5

- (1/2" N.F. hex.)

1шт.

34

92-8

LOCK WASHER,1/2"

1шт.

35

A28211

OIL SEAL

- oil, throwout shaft (1 x 1-1/4 x 1/8")

3шт.

36

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle, open end, throwout shaft

1шт.

37

A32822

YOKE

- throwout, clutch

1шт.

38

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

39

92-6

LOCK WASHER,3/8"

2шт.

40

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Throwout shaft #15, 1/4" x 1"

3шт.

41

A32821

SCREW

SHAFT - throwout yoke

1шт.

42

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING - needle, closed end, throwout shaft

1шт.

44

A32820

X

SLEEVE - throwout, clutch

1шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T., str.)

1шт.

46

A32819

PACKAGE

BEARING - clutch throwout

1шт.

47

A57479

OIL SEAL

- oil (1-1/2 x 2-19/64 x 7/16") (Replaces A7144)

1шт.

48

A7145

RETAINER

- front oil seal, clutch shaft

1шт.

49

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - oil seal retainer (2-1/2 x 2-3/4 x 1/8")

1шт.

50

A34435

SHAFT

- clutch & P.T.O. (17 external splines) (1st used trac. ser. no. 8289200)

1шт.

50

A32460

X

SHAFT - clutch & P.T.O. (12 & 17 ext. splines) (used prior to trac. S/N 8289200) (Order A34435 & A34522)

1шт.

51

A60023

BEARING ASSY,34.99mm ID x 62mm OD x 14mm W

BEARING - front, clutch shaft (Replaces A28237)

1шт.

52

A34522

SLEEVE

- P.T.O. & hyd. pump dlrive (17 internal spline) (1st used trac. ser. no. 8289200)

1шт.

52

A28234

SLEEVE

- P.T.O. & hyd. pump drie (12 internal spline) (used prior to trac. ser. no. 8289200)

1шт.
