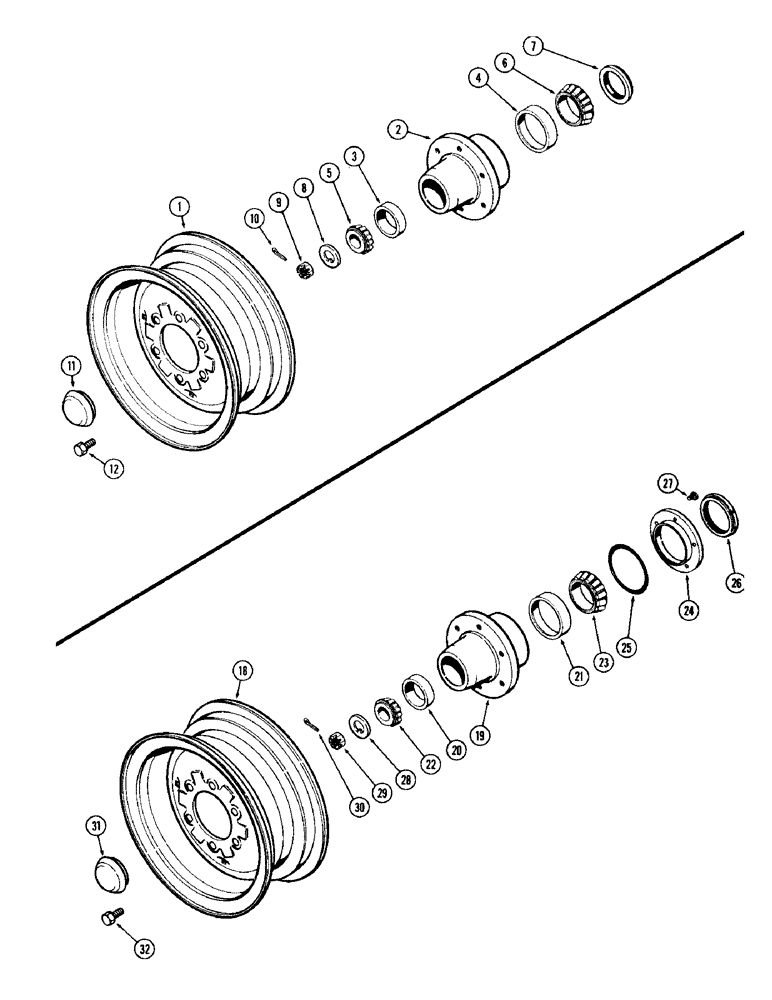

Запчасти Case IH 930-SERIES (094) - STAMPED FRONT WHEELS, USED WITH SIX BOLT HUB, FIRST USED TRACTOR SERIAL NUMBER 8339008 (06) - POWER TRAIN

1

G57007

WHEEL

RIM - (1-1/8" offset) (takes 7.50 x 15 tire)

2шт.

1

G57046

WHEEL ASSY.

RIM - (1-1/8" offset) (takes 7.50 x 16 or 9.00 x 16 tire)

2шт.

1

A57879

RIM

- (1-1/8" offset) (takes 9.50 x 15 or 11.00 x 15 tire)

2шт.

1

A57435

WHEEL

RIM - (1-3/4" offset) (takes 11.00 x 16 tire)

2шт.

1

A57333

RIM - (2-1/4" offset) (takes 7.50 x 16 or 9.00 x 16 tire)

2шт.

2

A57336

HUB

ASSY. - (incl. items 3 & 4)

2шт.

2

A57338

HUB ASSY. - (dual wheels only) (incl. items 3 & 4), Includes Ref: 3 and 4

2шт.

3

A27631

CUP

- bearing, outer (2-7/8" O.D.)

1шт.

4

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner (3-17/64" O.D.)

1шт.

5

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.)

2шт.

6

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.)

2шт.

7

A57250

OIL SEAL

ASSY. - oil (2-1/8 x 3-11/32 x 1/2")

2шт.

8

A26789

BEARING WASHER

WASHER - thrust, outer wheel brg.

2шт.

9

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - brg. ret. (1-1/8" N.F. sltd.)

2шт.

10

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

11

A29425

CAP

- hub

2шт.

12

B18264

WHEEL BOLT

BOLT - rim to hub (9/16-18 x 1-3/32")

12шт.

18

G57007

WHEEL

RIM - (1-1/8" offset) (takes 7.50 x 15 tire), used prior to trac. ser. no. 8339008

2шт.

18

G57046

WHEEL ASSY.

RIM - (1-1/8" offset) (takes 7.50 x 16 or 9.00 x 16 tire), used prior to trac. ser. no. 8339008

2шт.

19

A38187

HUB

ASSY. - with 9/16" tapped holes (incl. #20 & 21), used prior to trac. ser. no. 8339008

2шт.

19

A22743

HUB

ASSY. - with 1/2" tapped holes (incl. #20 & 21), used prior to trac. ser. no. 8339008, Includes Ref: 20 and 21

2шт.

20

A27631

CUP

- bearing, outer (2-7/8" O.D.), used prior to trac. ser. no. 8339008

1шт.

21

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner (3-17/64" O.D.), used prior to trac. ser. no. 8339008

1шт.

22

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.), used prior to trac. ser. no. 8339008

2шт.

23

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.), used prior to trac. ser. no. 8339008

2шт.

24

A27140

RETAINER

- rear oil seal, used prior to trac. ser. no. 8339008

2шт.

25

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8"), used prior to trac. ser. no. 8339008

2шт.

26

A27139

SEAL

- oil (2-15/16 x 3-7/32 x 7/16"), used prior to trac. ser. no. 8339008

2шт.

27

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- retainer (1/4 x 5/8" N.C., flat hd.), used prior to trac. ser. no. 8339008

10шт.

28

A26789

BEARING WASHER

WASHER - thrust, outer wheel brg., used prior to trac. ser. no. 8339008

2шт.

29

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - brg. ret. (1-1/8" N.F. sltd.), used prior to trac. ser. no. 8339008

2шт.

30

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Used prior to trac. S/N 8339008 3/16" x 1 3/4"

2шт.

31

A29425

CAP

- hub, used prior to trac. ser. no. 8339008

2шт.

32

B18264

WHEEL BOLT

BOLT - rim to hub (9/16-18 x 1-3/32"), used prior to trac. ser. no. 8339008

12шт.

32

A29912

BOLT

BOLT - rim to hub (1/2-20 x 1-3/32"), used prior to trac. ser. no. 8339008

12шт.
