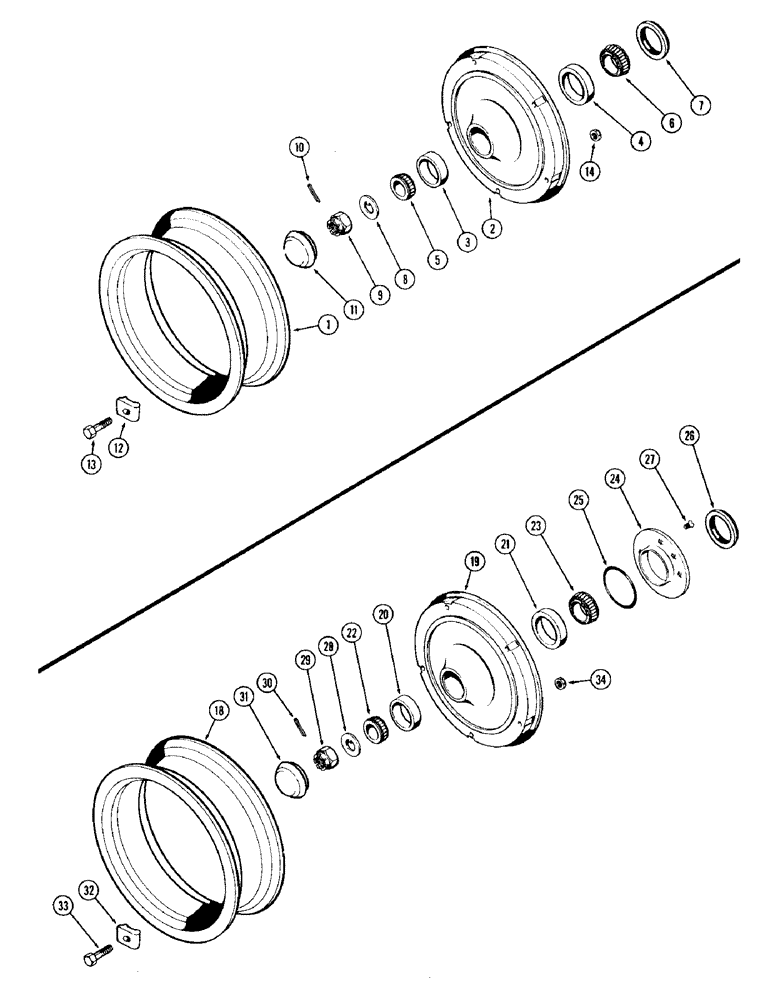

Запчасти Case IH 930-SERIES (093A) - CAST FRONT WHEELS, FIRST USED TRACTOR SERIAL NUMBER 8339008 (06) - POWER TRAIN

1

A27257

RIM

- (takes 7.50 x 18 tire)

2шт.

2

A57253

HUB ASSY.3 and 4

2шт.

3

A27631

CUP

- bearing, outer (2-7/8" O.D.)

1шт.

4

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner (3-17/64" O.D.)

1шт.

5

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.)

2шт.

6

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.)

2шт.

7

A57250

OIL SEAL

ASSY. - oil (2-1/8 x 3-11/32 x 1/2")

2шт.

8

A26789

BEARING WASHER

WASHER - thrust, outer wheel brg.

2шт.

9

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - brg. ret (1-1/8" N.F. sltd.)

2шт.

10

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

11

A29425

CAP

- hub

2шт.

12

A27228

CLAMP

-, Serial Range: rim-hub

10шт.

13

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- clamp (1/2 x 3-1/2" N.F. hex.)

10шт.

14

25-178

NUT,1/2"-20, G5, Hvy

- (1/2" N.F. hex.)

10шт.

18

A27257

RIM

- (takes 7.50 x 18 tire), used prior to trac. ser. no. 8339008

2шт.

19

A33351

WHEEL

HUB ASSY., used prior to trac. ser. no. 8339008, Includes Ref: 20 and 21

2шт.

20

A27631

CUP

- bearing, outer (2-7/8" O.D.), used prior to trac. ser. no. 8339008

1шт.

21

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - bearing, inner (3-17/64" O.D.), used prior to trac. ser. no. 8339008

1шт.

22

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - bearing, outer (1-3/8" I.D.), used prior to trac. ser. no. 8339008

2шт.

23

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - bearing, inner (1-3/4" I.D.), used prior to trac. ser. no. 8339008

2шт.

24

A27140

RETAINER

- rear oil seal, used prior to trac. ser. no. 8339008

2шт.

25

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - retainer (3-1/4 x 3-1/2 x 1/8"), used prior to trac. ser. no. 8339008

2шт.

26

A27139

SEAL

- oil (2-15/16 x 3-7/32 x 7/16"), used prior to trac. ser. no. 8339008

2шт.

27

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- retainer (1/4 x 5/8" N.C., flat hd.), used prior to trac. ser. no. 8339008

10шт.

28

A26789

BEARING WASHER

WASHER - thrust, outer wheel brg., used prior to trac. ser. no. 8339008

2шт.

29

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - brg. ret. (1-1/8" N.F. sltd.), used prior to trac. ser. no. 8339008

2шт.

30

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Used prior to trac. S/N 8339008 3/16" x 1 3/4"

2шт.

31

A29425

CAP

- hub, used prior to trac. ser. no. 8339008

2шт.

32

A27228

CLAMP

- rim to hub, used prior to trac. ser. no. 8339008

10шт.

33

14-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- clamp (1/2 x 3-1/2" N.F. hex.), used prior to trac. ser. no. 8339008

10шт.

34

25-178

NUT,1/2"-20, G5, Hvy

- (1/2" N.F. hex.), used prior to trac. ser. no. 8339008

10шт.
