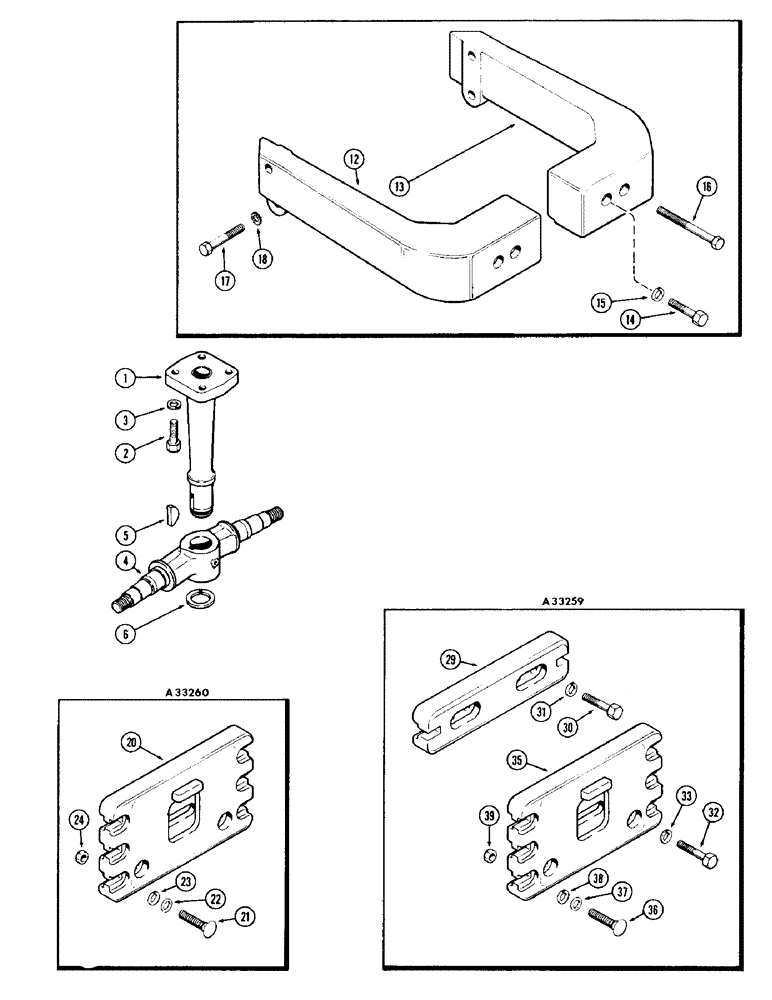

Запчасти Case IH 930-SERIES (092) - DUAL FRONT WHEEL (06) - POWER TRAIN

1

A32184

PEDESTAL - front axle

1шт.

2

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Pedestal Hex, 5/8"-18 x 2", G5

4шт.

3

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

4

A57258

SPINDLE

- front wheel (1st used trac. ser. no. 8339008)

1шт.

4

A28215

SPINDLE - front wheel (used prior to trac. ser. no. 8339008) (Order A57258)

1шт.

5

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - spindle (#29 Woodruff)

1шт.

6

A28217

RING - snap, spindle retaining

1шт.

12

A34524

WEIGHT - wrapper, right hand side (approx 185 lbs.), front end

1шт.

13

A34525

WEIGHT - wrapper, left hand side (approx 185 lbs.), front end

1шт.

14

13-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

- wrapper, front (5/8 x 5-1/4" N.C. hex.), weights

2шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Front end weights, wrapper type 5/8"

2шт.

16

A34526

BOLT

- wrapper, front (3/4 x 8" N.C. hex.) (also holds 1st additional weight)

2шт.

17

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- wrapper, upper rear (3/4 x 3-3/4" N.C. hex.), front end weights

2шт.

17

15-1244

BOLT

- wrapper, lower rear (3/4 x 2-3/4" N.C. hex.), front end weights

2шт.

18

A34651

LOCK WASHER

- rear bolts (3/4" ext. skpf.), front end weights, wrapper type

4шт.

A33260

WEIGHT ATTACHMENT (ADDITIONAL) (Machinery Attachment), front end, wrapper type, Includes Ref: 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

WEIGHT - (100 lbs. ea.) (Order A33260), front end weights, wrapper type

1шт.

21

B90584

BOLT

- weight to weight (3/4 x 4" N.C. carr.), front end, wrapper type

2шт.

22

17438

WASHER

- (25/32 x 1-3/4 x 7/32"), front end weights, wrapper type

2шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front end weights, wrapper type 3/4"

2шт.

24

25-1012

NUT,3/4"-10, G5

Front mounted type 3/4"-10, G5

2шт.

A33259

WEIGHT KIT - (Machinery Attachment), front mtd. type, Includes Ref: 29 - 33

1шт.

29

NSS

NOT SOLD SEPARAT

WEIGHT - starter (Order A33259), front mtd. type

1шт.

30

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Starter weight, front mtd. type Hex, 5/8"-11 x 2 1/4", G5

2шт.

31

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Front mounted type 5/8"

2шт.

32

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Weight to starter, front mtd. type Hex, 3/4"-10 x 4 1/2", G5

2шт.

33

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front mounted type 3/4"

2шт.

A33260

WEIGHT KIT - (Order additional weights as req.) (Machinery Attachment), front mtd. type, Includes Ref: 35 - 39

1шт.

35

NSS

NOT SOLD SEPARAT

WEIGHT - (100 lbs. ea.) (Order A33260), front mtd. type

1шт.

36

B90584

BOLT

S - weight to weight (3/4 x 4" N.C. carr.), front mtd. type

2шт.

37

17438

WASHER

- (25/32 x 1-3/4 x 7/32"), front mtd. type

2шт.

38

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Front mounted type 3/4"

2шт.

39

25-1012

NUT,3/4"-10, G5

Front mounted type 3/4"-10, G5

2шт.
