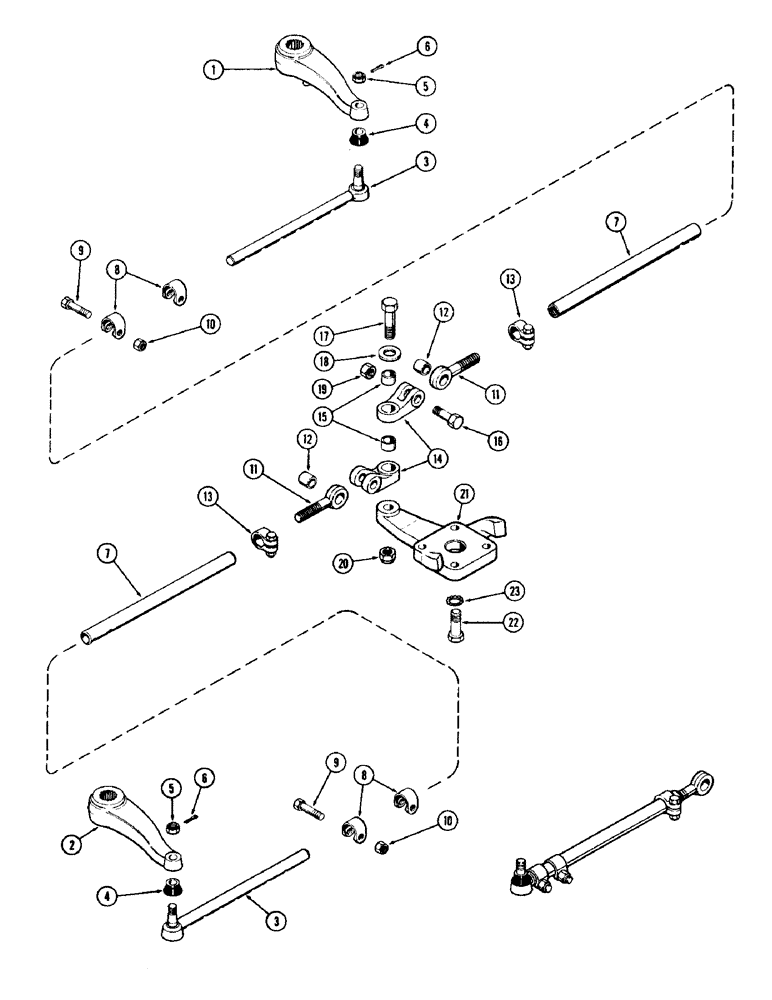

Запчасти Case IH 930-SERIES (091A) - DRAG LINKS, WESTERN MODELS, USED PRIOR TO TRACTOR SERIAL NUMBER 8339078 (06) - POWER TRAIN

1

A34633

ARM - steering, left hand

1шт.

2

A34632

ARM

- steering, right hand

1шт.

3

A34895

LINK

ROD - drag link (Replaces A34636)

2шт.

4

G46043

COVER

SEAL - dust, rod end (rubber)

2шт.

5

25-139

SLOTTED NUT,9/16"-18, G5

NUT - rod to arm (9/16" N.F. hex., sltd.)

2шт.

6

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

7

A34637

TUBE

- drag link

2шт.

8

A34191

CLAMP

- indexing

4шт.

9

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- clamp (1/2 x 2-1/4" N.C. hex.)

4шт.

10

25-108

NUT,1/2"-13, G5

- clamp bolt (1/2" N.C. hex.)

4шт.

11

A34782

END

ASSY. - drag link

2шт.

12

A34643

BUSHING

BUSING - (3/4 x 7/8 x 3/4")

1шт.

13

A34192

CLAMP

ASSY. - end locking

2шт.

14

A34785

COUPLING

COUPLER ASY. - drag links

2шт.

15

A34786

BUSHING

- (1 x 1-1/8 x 3/4")

1шт.

16

A34787

BOLT

- pivot, end (3/4 x 2-1/8" N.F. hex.)

2шт.

17

A34788

BOLT

- pivot, coupling (1 x 3-5/16" N.F. hex.)

1шт.

18

A31148

WASHER

- pivot bolt (1-1/32 x 1-3/4 x 7/64") (Replaces F53208)

1шт.

19

25-1512

JAM NUT,Jam, 3/4"-10, G5

- pivot bolt (3/4" N.F. hex., jam)

2шт.

20

A34852

NUT

- pivot bolt (1"-12 N.F. jam)

1шт.

21

A34784

ARM - steering, center

1шт.

22

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

Ctr. str. arm Hex, 5/8"-18 x 1 3/4", G5

4шт.

23

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.
