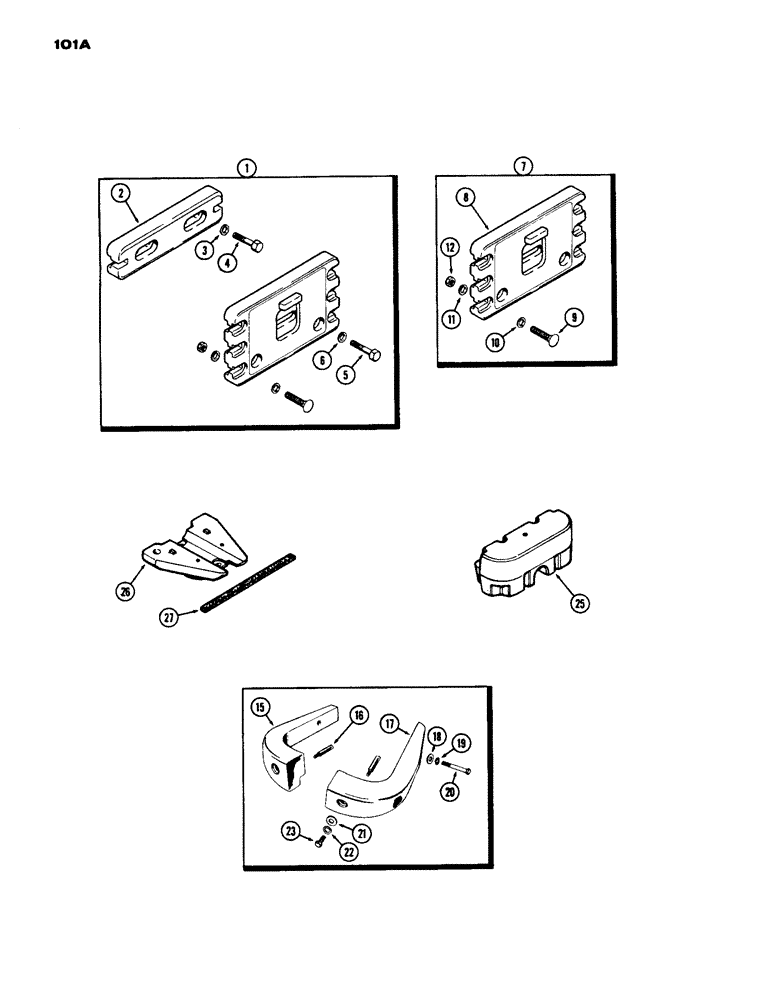

Запчасти Case IH 930-SERIES (101A) - FRONT END WEIGHTS (09) - CHASSIS

1

A33259M

WEIGHT KIT - front end (Used with A32578 rad. bracket), Includes Ref: 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

WEIGHT - starter (Order A33259M)

1шт.

3

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Starter Hex, 5/8"-11 x 2 1/4", G5

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Weight to starter Hex, 3/4"-10 x 4 1/2", G5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

7

A33260M

WEIGHT KIT - front end, Includes Ref: 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

WEIGHT (100 lbs. each) (Order A33260N)

1шт.

9

B90584

BOLT

- weight to weight (3/4 x 4" N.C. carr.)

2шт.

10

17438

WASHER

- (25/32 x 1-3/4 x 7/32")

2шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

12

25-1012

NUT,3/4"-10, G5

2шт.

15

A8754

WEIGHT - front end, R.H. (See A23090M)

1шт.

16

A23075

STUD - front end weight

2шт.

17

A8755

WEIGHT - front end L.H. (See A23090M)

1шт.

A23090M

WEIGHTS - set of front end, with hardware (mchy. item) (use w/A22803 rad. brack.)

1шт.

18

195-45

WASHER,3/4"

2шт.

19

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

20

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

21

95-10

WASHER,5/8"

- std. wrought 5/8"

2шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

23

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

25

A33543

WEIGHT - radiator bracket, top, miscellaneous

1шт.

26

A22819

WEIGHT - radiator bracket, lower, miscellaneous

1шт.

27

A24443

SEAL - radiator to bracket, miscellaneous weights

1шт.
