Запчасти Case IH 930-SERIES (099A) - SUPER DELUXE, SEAT (09) - CHASSIS

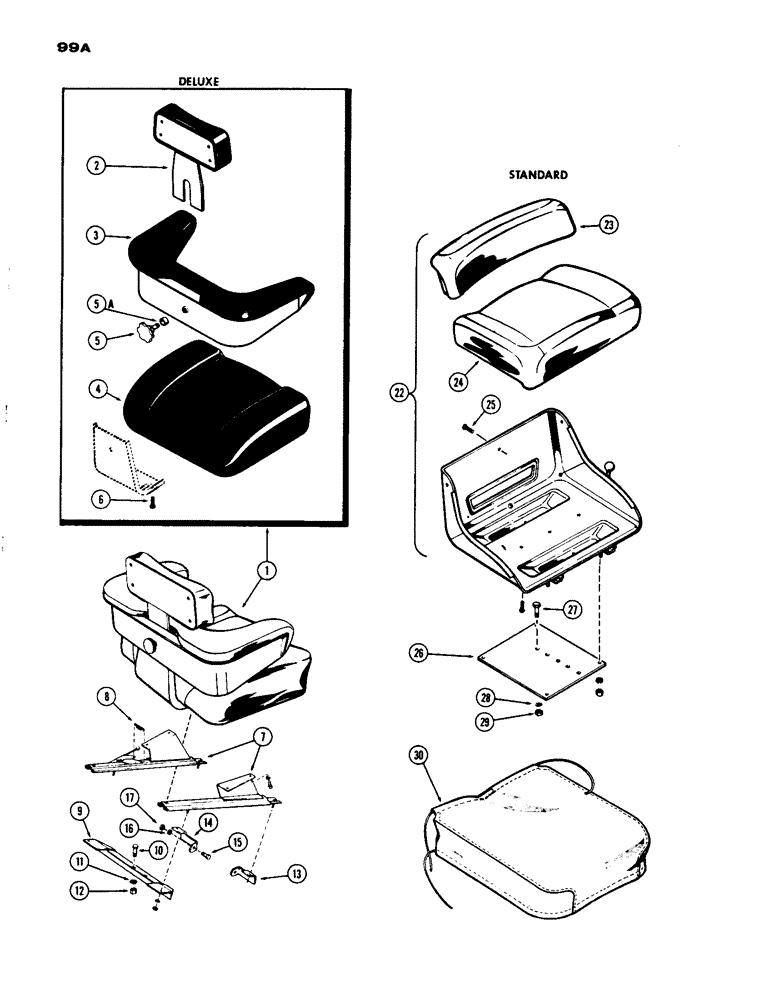

Схема запчастей Case IH 930-SERIES - (099A) - SUPER DELUXE, SEAT (09) - CHASSIS
8
13
25
29
2
22
30
17
12
7
27
5
6
23
4
26
5
10
16
28
14
1
9
3
15
24
11

Артикул

Название

Примечание

Количество

1

A32872

SEAT ASSY, Includes Ref: 2 - 6

1шт.

2

A34283

CUSHION

ASSY. - upper backrest

1шт.

3

A33318

CUSHION

ASSY. - back and arm rest

1шт.

4

A33317

CUSHION

ASSY. - seat

1шт.

5

A33327

X

SCREW - adjusting, upper backrest

1шт.

5a

A40600

SPACER

- adj. screw (33/64 x 3/4 x 29/64")

1шт.

6

173-255

SCREW - (5/16" x 5/8" N.C. phil. hd.)

8шт.

6

169-135

SCREW,Phil Hd, 5/16" x 3/4"

SCRW - (5/16" x 3/4" N.C., phil. hd.)

2шт.

7

A25260

BRACKET

ASSY. - seat adjustment

1шт.

8

A25261

SPRING - seat adjusting lever

1шт.

9

A32873

BRACKET - seat support, rear

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bracket Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

25-108

NUT,1/2"-13, G5

- (1/2" N.C. hex.)

2шт.

13

A34228

BRACKET - seat support, R.H. front

1шт.

14

A34229

BRACKET - seat support, L.H. front

1шт.

15

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

22

A24711

SEAT

ASSY., standard, Includes Ref: 23 - 25

1шт.

23

A24712

BACKREST

CUSHION - backrest, standard

1шт.

24

A24713

CUSHION

- seat, standard

1шт.

25

175-428

SCREW,Phil Truss Hd, 1/4" - 20 x 5/8"

- (1/4 x 5/8" N.C., Ph. Tr. Hd.), standard

5шт.

26

A24107

PLATE - seat support, standard

1шт.

27

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- plate (1/2 x 1" N.F. hex.), standard

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

25-118

NUT,1/2"-20, G5

- (1/2" N.F. hex.), standard

2шт.

30

A23697

COVER

- seat cushion (For worn cushion), standard

1шт.

Выбрано товаров: 28
