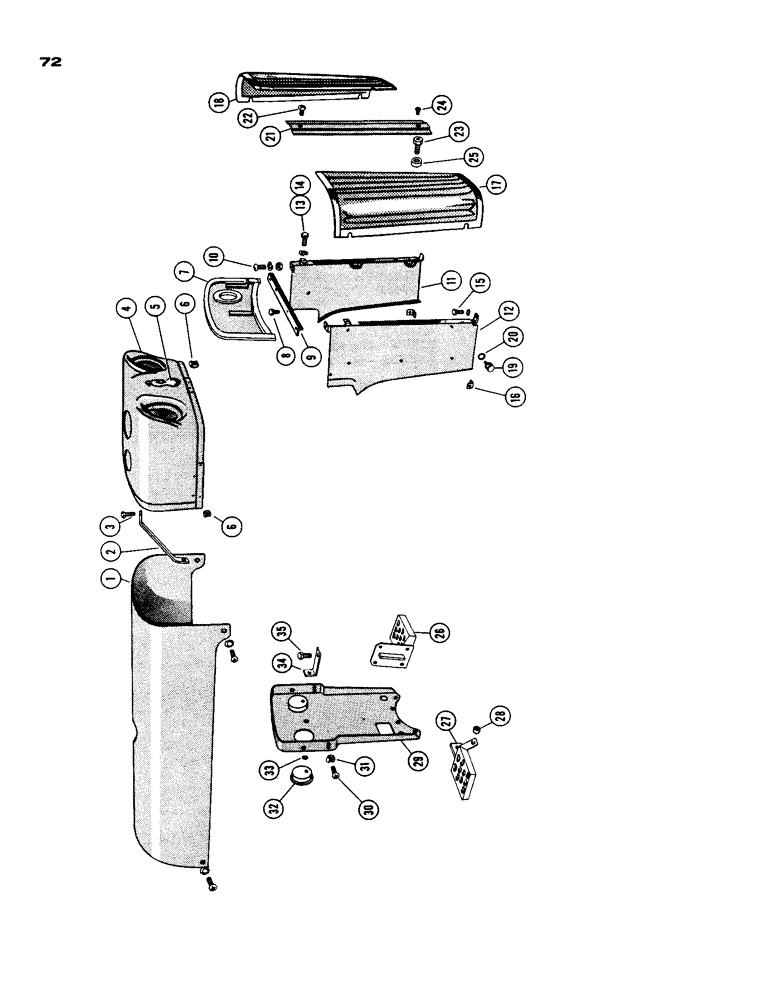

Запчасти Case IH 930-SERIES (072) - RADIATOR GRILLE AND HOOD (09) - CHASSIS

1

A23811

HOOD - engine

1шт.

2

A32669

BRACE - radiator grille cap body

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

1шт.

4

A24482

CAP - radiator grille

1шт.

5

A24526

MEDALLION - grille cap

1шт.

131-138

PUSH-ON NUT

- 1/4" (use with A24526) (not illust.)

2шт.

6

131-115

NUT

- 1/4"-20 Tinnerman speed grip

7шт.

7

A23792

BAFFLE

- upper radiator, w/seal (Diesel)

1шт.

7

A24151

BAFFLE - upper rod, w/seals (LP-gas)

1шт.

8

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

2шт.

9

A23786

BRACE - radiator side member, top

1шт.

10

75-412

SCREW,Rd, 1/4" x 3/4"

- 1/4" x 3/4" N.C. rhd. mach.

2шт.

11

A23765

MEMBER

- radiator side, L.H.

1шт.

12

A23764

MEMBER - radiator side, R.H.

1шт.

13

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

14

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

- 5/16" x 1-1/2" N.F. hex.

4шт.

15

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

16

A11905

CLIP - rad. side member rear support

2шт.

17

A23774

GRILLE - radiator, and screen R.H.

1шт.

18

A23775

GRILLE - radiator, and screen, L.H.

1шт.

19

A23762

SCREW,1/4" - 20 x 1"

- grille screen fastener

4шт.

20

A24109

X

LOCKWASHER - grille screen

1шт.

21

A23785

CENTER - radiator grille

1шт.

22

175-447

SCREW,Phil Truss Hd, 1/4" - 20 x 1"

- 1/4" x 1"

2шт.

23

A8399

BOLT,Hex, Tap, 5/8" - 11 x 1 3/4", Gr 5

- radiator grille

1шт.

24

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- 1/4" x 1/2" Phillips truss hd.

1шт.

25

O6480HT

X

SPACER - radiator grille

1шт.

26

A23711

STEP - mounting, left hand

1шт.

27

A23710

STEP - mounting, right hand

1шт.

28

A23723

SPACER - R.H. step mounting

1шт.

29

A23809

SUPPORT - rear hood

1шт.

30

175-429

SCREW,Phil Truss Hd, 5/16" - 24 x 5/8"

- 5/16" x 5/8" Phillips hd.

6шт.

31

131-123

NUT,Ret, 5/16"-24

- 5/16"-24 Tinnerman speed grip retainer

4шт.

32

A24620

PLUG

- hood rear support

2шт.

33

O8920AB

X

GROMMET - rubber, hood rear support

1шт.

34

A23813

BRACE - rear hood support

1шт.

35

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.
