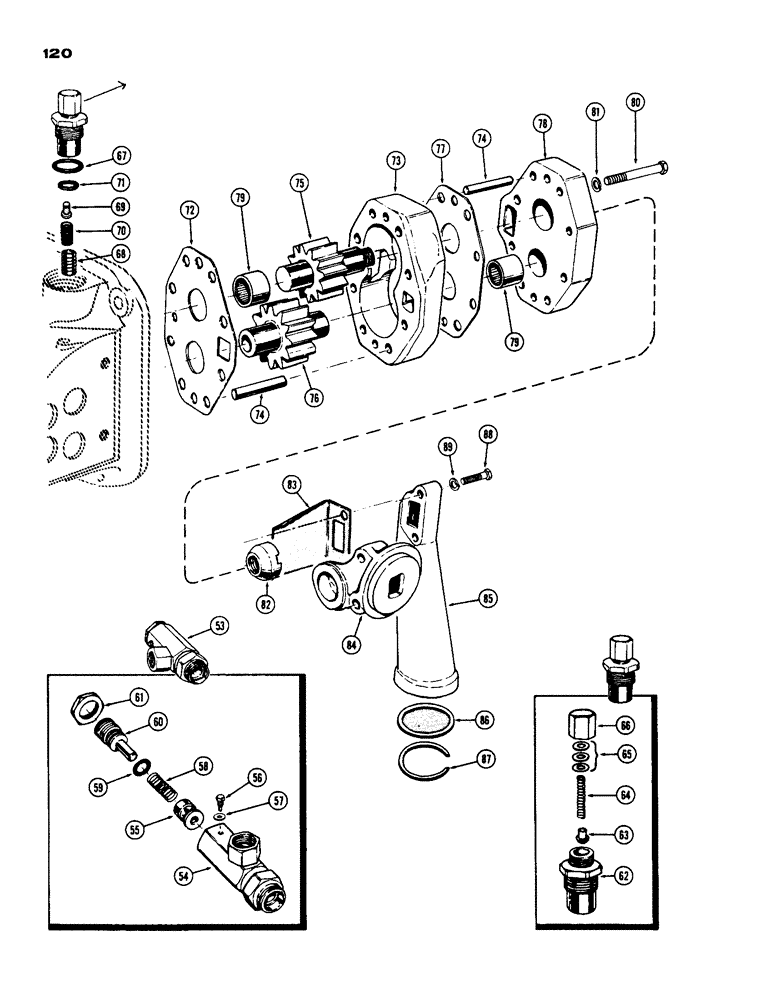

Запчасти Case IH 930-SERIES (120) - A23384 HYDRAULIC PUMP, CONTINUED (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A23384
VALVE
PUMP ASSY. - hyd. (cont. from page 119)
1шт.
53
4198AA
X
REGULATOR ASSY. - cylinder speed, Includes Ref: 54 - 61
1шт.
54
4197AA
X
BODY - swivel
1шт.
55
O9169AB
X
PISTON - cyl. speed
1шт.
56
O9173AB
X
SCREW - piston lock
1шт.
57
192-6
LOCK WASHER,#8
WASHER, LOCK, #8
1шт.
58
O8734AB
X
SPRING - pressure (10 Ga., 1/2" O.D.)
1шт.
59
O9171AB
X
"O" RING - (9/16 x 3/4 x 3/32")
1шт.
60
O9170AB
X
SCREW - speed adjusting
1шт.
61
A9172AB
NUT - lock, adj. screw (7/8" N.F. hex.)
1шт.
62
A23365
X
BODY - relief valve
1шт.
63
A23368
VALVE POPPET
VALVE - relief
1шт.
34
A23367
SPRING
- pressure (34 Ga., 306" O.D.)
1шт.
65
A23602
X
SHIM - relief valve (.048" brass)
1шт.
65
A23373
SHAFT ASSY.
SHIM - relief valve (.010" steel)
1шт.
67
O8346AB
X
"O" RING - relief valve (1-1/8 x 1-3/8 x 1/8")
1шт.
68
A23366
PISTON
- relief valve pilot
1шт.
69
A24363
STRAINER ASSY.
STRAINER - pilot valve
1шт.
70
A23082
SPRING
- pressure (24 Ga., 1/2" O.D.)
1шт.
71
A23369
O-RING
"O" RING - pilot valve
1шт.
72
A23380
LARGE PLATE
PLATE - wear, rear
1шт.
73
A10335
BODY
- hyd. pump
1шт.
74
A23396
DOWEL,3/8" x 2 1/4"
PIN - body locating (3/8 x 2-1/4")
2шт.
75
A23392
GEAR
- pump drive (lead gear)
1шт.
76
A23389
GEAR
- pump idler (follow gear)
1шт.
77
A23381
LARGE PLATE
PLATE - wear front
1шт.
78
A23394
COVER - hyd. pump body
1шт.
79
A23378
NEEDLE BEARING,Needle, 25.4mm ID x 31.62mm OD x 25.4mm W
BEARING - needle
4шт.
80
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
- pump (3/8" x 3" N.C. hex.)
4шт.
81
92-6
LOCK WASHER,3/8"
4шт.
82
O8425AB
X
COUPLING - pump drive shaft
1шт.
83
A8901AB1
PLATE - oil deflector
1шт.
84
A23397
ELBOW - pump filter
1шт.
85
6069A
ELBOW - pump inlet
1шт.
86
3764AA
X
SCREEN ASSEMBLY - pump inlet
1шт.
87
O6947AB
X
RING - snap, screen retaining
1шт.
88
15-668
BOLT (MACHINE)
BOLT - elbow (3/8" x 4-1/4" N.C. hex.)
4шт.
89
92-6
LOCK WASHER,3/8"
4шт.
Выбрано товаров: 40
