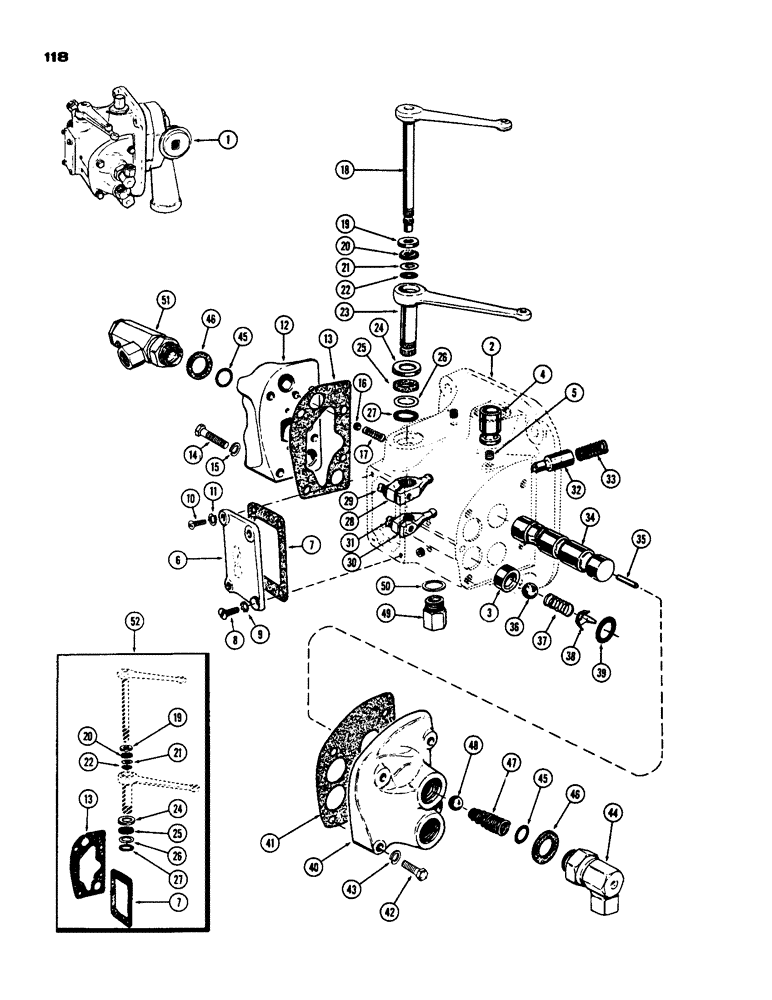

Запчасти Case IH 930-SERIES (118) - A23384 HYDRAULIC PUMP (08) - HYDRAULICS

1

A23384

VALVE

PUMP ASSY - hydraulic, Includes Ref: 2 - 89

1шт.

2

A23353

BODY

ASSY - hydraulic valve, Includes Ref: 3 - 5

1шт.

3

O8409AB

X

SEAT - oulet ball check

4шт.

4

A23354

SLEEVE

- pilot relief valve

1шт.

5

221-1849

PLUG

- (1/8" P.T. hex. socket hd.)

5шт.

6

A7353

CAP

COVER - valve body

1шт.

7

O8563AB

GASKET - cover (See item 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

8

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- cover (1/4" x 3/4" N.C., flat hd.)

1шт.

9

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

1шт.

10

75-412

SCREW,Rd, 1/4" x 3/4"

- cover (1/4" x 3/4" N.C. rhd.)

3шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

12

A23395

HEAD - pump, left hand side

1шт.

13

O8565AB

X

GASKET - head (See item 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

14

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- head (3/8" x 2-3/4" N.C. hex.)

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

211-7

BALL,1/4" Dia

- relief valve 1/4" Dia

2шт.

17

A23364

SPRING

- relief valve (16 Ga., 1/4" O.D.)

2шт.

18

A23387

LEVER

- spool shifter, upper

1шт.

19

O8399AB

X

RETAINER - dust seal (See item 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

20

O8398AB

X

SEAL - dust (1/2 x 15/16 x 1/4" felt) (See item 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

21

O8568AB

X

SEAT - dust seal (33/64 x 63/64 x 20 Ga.) (See item 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

22

O8569AB

X

"O" RING - (1/2 x 11/16 x 3/32") (See item 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

23

A23357

SHAFT

LEVER - spool shifter, lower

24шт.

24

O8556AB

X

RETAINER - dust seal (See item 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

25

O8555AB

X

SEAL - dust (3/4 x 1-3/16 x 1/4" felt) (See item 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

26

O8557AB

X

SEAT - dust seal (49/64 x 1-15/64 x 20 Ga.) (See item 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

27

O8416AB

X

"O" RING - (3/4 15/16 x 3/32") (See item 52)

1шт.

Part of lever shaft seal kit P/N A25264

1шт.

28

O8554AB

X

ARM - spool shifter, upper

1шт.

29

72-416

SCREW

- upper arm (1/4" x 1" N.F. sltd. fill. hd.)

1шт.

30

O8396AB

X

ARM - spool shifter, lower

1шт.

31

72-412

SCREW,Slotted Fil Hd, 1/4"-28 x 3/4"

- lower arm (1/4" x 3/4" N.F. sltd. fill. hd.)

1шт.

32

A33358

PLUNGER

- spool, upper (2-1/64" lg.)

1шт.

32

A33357

PLUNGER

- spool, lower (2-15/64" lg.)

1шт.

33

O8809AB

X

SPRING - spool plunger (15 Ga., .572" O.D.)

2шт.

34

O8394AB

X

SPOOL - valve

2шт.

35

O8411AB

X

SPOOL - auxiliary

4шт.

36

211-15

BALL,5/8" Dia

- outlet valve (.) 5/8" Dia

4шт.

37

O8734AB

X

SPRING - valve outlet (10 Ga., 1/2" O.D.)

4шт.

38

O8410AB

X

GUIDE - outlet valve spring

4шт.

39

O8377AB

X

"O" RING - outlet valve (7/8 x 1-1/8 x 1/8")

4шт.

40

6072A

X

HEAD - pump, right hand side

1шт.

41

O8564AB

X

GASKET - head

1шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Head Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

43

92-6

LOCK WASHER,3/8"

4шт.

44

3769AA

X

ADAPTER - swivel

3шт.

45

O8416AB

X

"O" RING - adapter (3/4 x 15/16 x 3/32")

4шт.

46

O8420AB

X

GASKET - adapter (1-1/32 x 1-1/4 x 1/32" copper)

4шт.

47

O8414AB

X

SPRING - return ball check

4шт.

48

211-13

BALL,1/2" Dia

- return check 1/2" Dia

4шт.

49

A8732

CAP

- float opening

1шт.

50

A7478

GASKET

- cap (3/4 x 1-1/32 x 1/32" copper)

1шт.

51

4198AA

X

REGULATOR ASSY

1шт.

52

A25264

SEAL

KIT - lever shaft, Iincludes Ref. 7, 13, 19 thru 22 and 24 thru 27

1шт.
